7 L-1681BH-M
English Manual
3
1
8
4
10
7
7
11
3
2
ASSEMBLY

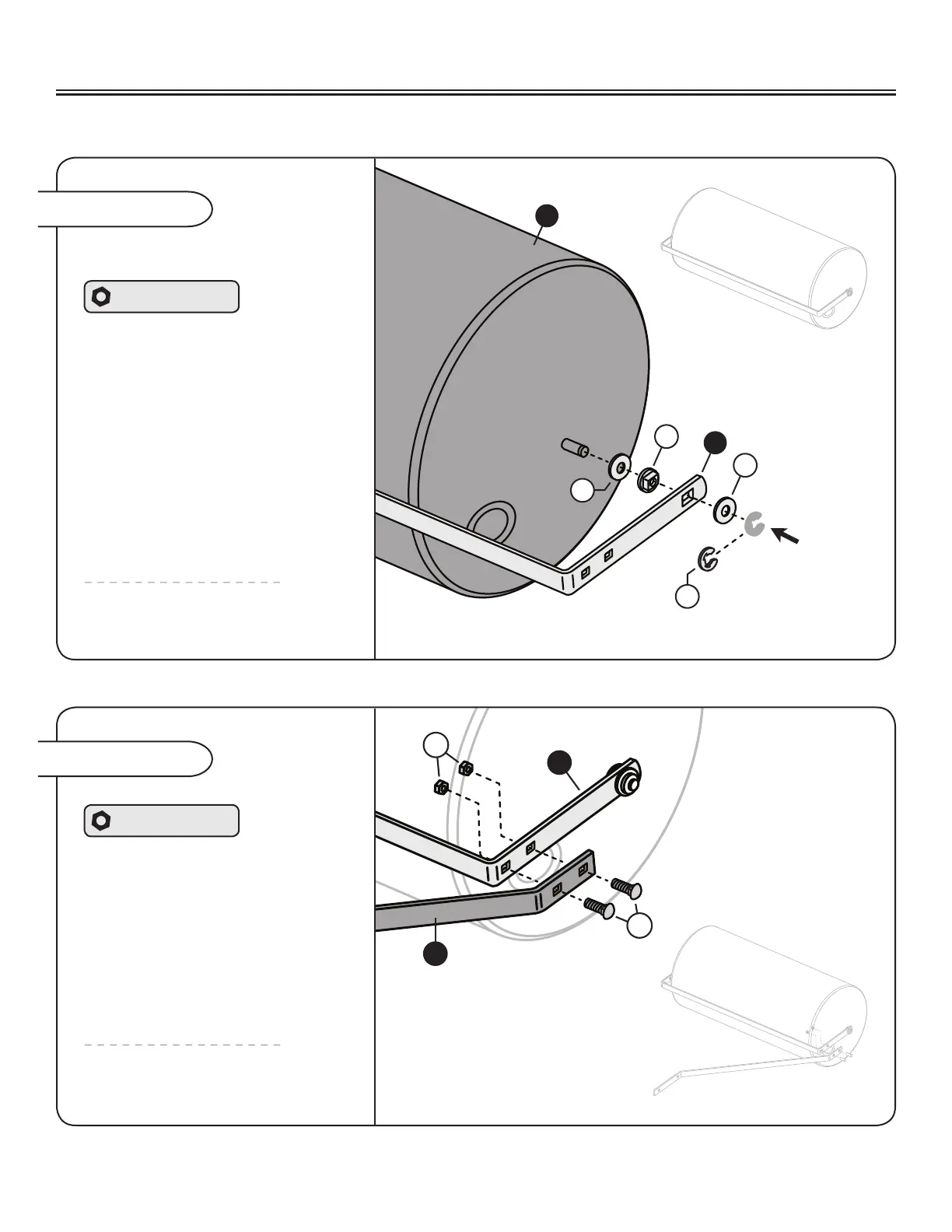

Assembly Step 1
Attaching the Scraper Bar
Add a 5/8” at washer (7) to the
Roller Drum (2) as illustrated.
Slide a square bearing (10) into
the large square hole at the end of
the Scraper Bar (3) and add to the
Roller Drum.
Add another 5/8” at washer (7).
Secure everything in place by
sliding a 5/8” E-ring (11) into the
slot at the end of the roller drum (2).
Hardware Panel A
Repeat this step on the
other end of the drum.
Assembly Step 2
Repeat this step on the
other end of the drum.
Align the Frame Extension Bar (1)
as illustrated.
From the outside, run two
5/16 x 1” Carriage Bolts (4) through
the Extension Bar (1) and Scraper
Bar (3) as illustrated.
Secure everything in place with two
5/16” Nylon Lock Nuts (8).
Hardware Panel B
