Brinly SAT2-40BH-P User Manual

1019101-E5
English Manual
================================================================================================
33
34
13
13
27
15
16
12
15
27
17
20
1
24
29
29
4
4
3
13
13
15
25
25
7
26
28
21
20
28
19
21
9
9
31
24
23
21
21
19
27
15
30
16
1513 +
1514 +
1514 +
10
8
27
15
2715 +
22
5
5
6
1527 +

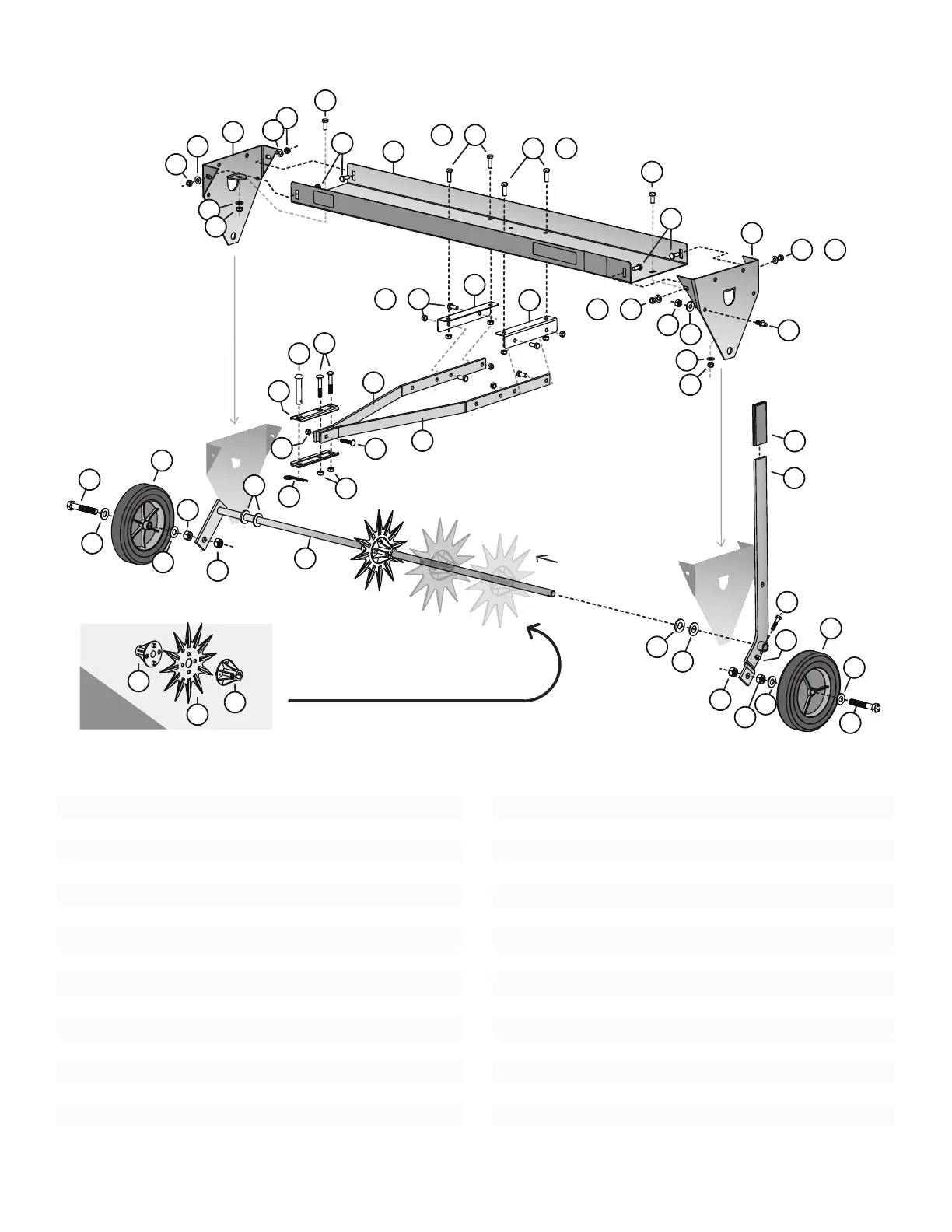

PARTS REFERENCE
x11
33
34
13
13
27
15
16
12
15
27
17
20
1
24
29
29
4
4
3
13
13
15
25
25
7
26
28
21
20
28
19
21
9
9
31
24
23
21
21
19
27
15
30
16
1513 +
1514 +
1514 +
10
8
27
15
2715 +
22
5
5
6
1527 +
Ref # Part # Description Qty
1 R-892-16 Drawbar Clevis 2
3 1019414 Tray 1
4 1019212-16 Drawbar 2
5 1019244-16 End Panel 2
6 1019283-16 Axle Assembly 1
7 1018833 Tine 11
8 1019262-16 Handle Assembly 1
9 R-891 Wheel 2
10 B-4867 Handle Grip 1
12 1019151 Hairpin Cotter 1
13 2M1012P Bolt; Hex Head, 5/16” x 3/4” 10
14 2M1016P Bolt; Hex Head, 5/16” x 1” 4
15 B-4786 Nut; Lock, 5/16” 16
16 1019390 Washer; Flat, 5/8” (thick) 10
17 B-3861 Drawbar Pin 1
Ref # Part # Description Qty
19 1M1648P Bolt; Hex, 1/2” x 3” 2
20 30M1600P Nut; Hex, 1/2” 2
21 1019753 Washer; Flat, 1/2” 4
22 B-3307-S Transport Lock Pin 1
23 2M0820P Bolt; Hex, 1/4” x 1-1/4” 1
24 B-4785 Nut; Nylon Lock, 1/4-20” 2
25 1019589 Spacer / Bearing, Tube 22
26 1019391 Washer; Flat, 5/8” (thin) 2
27 45M1111P Washer; Flat, 5/16” 6
28 B-5096Y Nut; Lock, 1/2” 2
29 1018985-16 Drawbar Bracket 2
30 10M1032P Bolt; Carriage, 5/16" x 2" 2
31 11M0824P Bolt; Carriage, 1/4" x 1-1/2" 1
33 40M1000P Washer; Lock, 5/16" 1
34 30M1000P Nut; Hex, 5/16" 1

Brinly SAT2-40BH-P Specifications

General

Brand	Brinly
Model	SAT2-40BH-P
Category	Tiller
Language	English
