Brinly SAT2-40BH-P User Manual

1019101-E7
English Manual
================================================================================================
5
34
22
33
22
34
33
ASSEMBLY
x6
Assembly Tip
Illustrations on page 6 are to-scale. For faster identication of the hardware
during assembly, simply lay the hardware on top of these illustrations.
Additional info and videos are
available on our website: brinly.com
This QR code links directly to the
Spike Aerator product page.
6
1019101-E
English Manual
================================================================================================
Do not return this product if you are missing parts.
Please Call: 1 (877) 728-8224
HARDWARE IDENTIFIER
Illustrations on this page are to scale for faster identication of hardware during assembly.
19
Bolt; Hex Head, 1/2” x 3” (x2) . . . . . . . . . . . . . . . . . . .
1M1648 P
Drawbar Pin; 1/2" x 2 1/2" (x1) . . . . . . . . . . . . . . . . . . . . . . . . . . .
B-3861
17
Bolt; Carriage,
5/16 x 2”
(x2) . . . . . . . .
10M1032P
30
Bolt; Carriage
SS, 1/4 x 1-1/2”
(x1) . . . . . . . . . . .
11M082 4P
31
Washer; Flat
5/16” (x6) . . . . . . . . . . . . . .
45 M1111P
27
Washer; Thick
5/8” (x10) . . . . . . . . . . .
1019390
16
Washer; Flat
1/2” (x4) . . . . . . . . . . . .
21
1019753
Washer; Thin
5/8” (x2) . . . . . . . . . . . . .
1019391
26
Nut; Hex 1/2” (x2) . . . . . . . . . . . . . .
30M1600P
20
24
Nut; Nylon Lock, 1/4-20” (x2) . . . . . . .
B-1673P
Nut; Hex Lock 1/2” (x2) . . . . . . . . . .
B-5096Y
28
Nut; Hex Lock, 5/16” (x16) . . . . . . . . .
B-4786
15
Bolt; Hex Head
5/16 x 1” (x2) . . . . . . . . . . . .
2M1016P
14
22
Transport
Lock Pin (x1) . . . . . . . .
B- 3307- S
23
Bolt; Hex Head
1/4 x 1-1/4” (x1) . . . . .
2M0820P
Bolt; Hex Head
5/16 x 3/4” (x10) . . . . . . . . . . . . .
2M1012P
13
Washer; Lock
5/16” (x1) . . . . . . . . . . . . . . .
40M1000P
33
Nut; Hex, 5/16” (x1) . . . . . . . . . . . . . . .
30M1000P
34

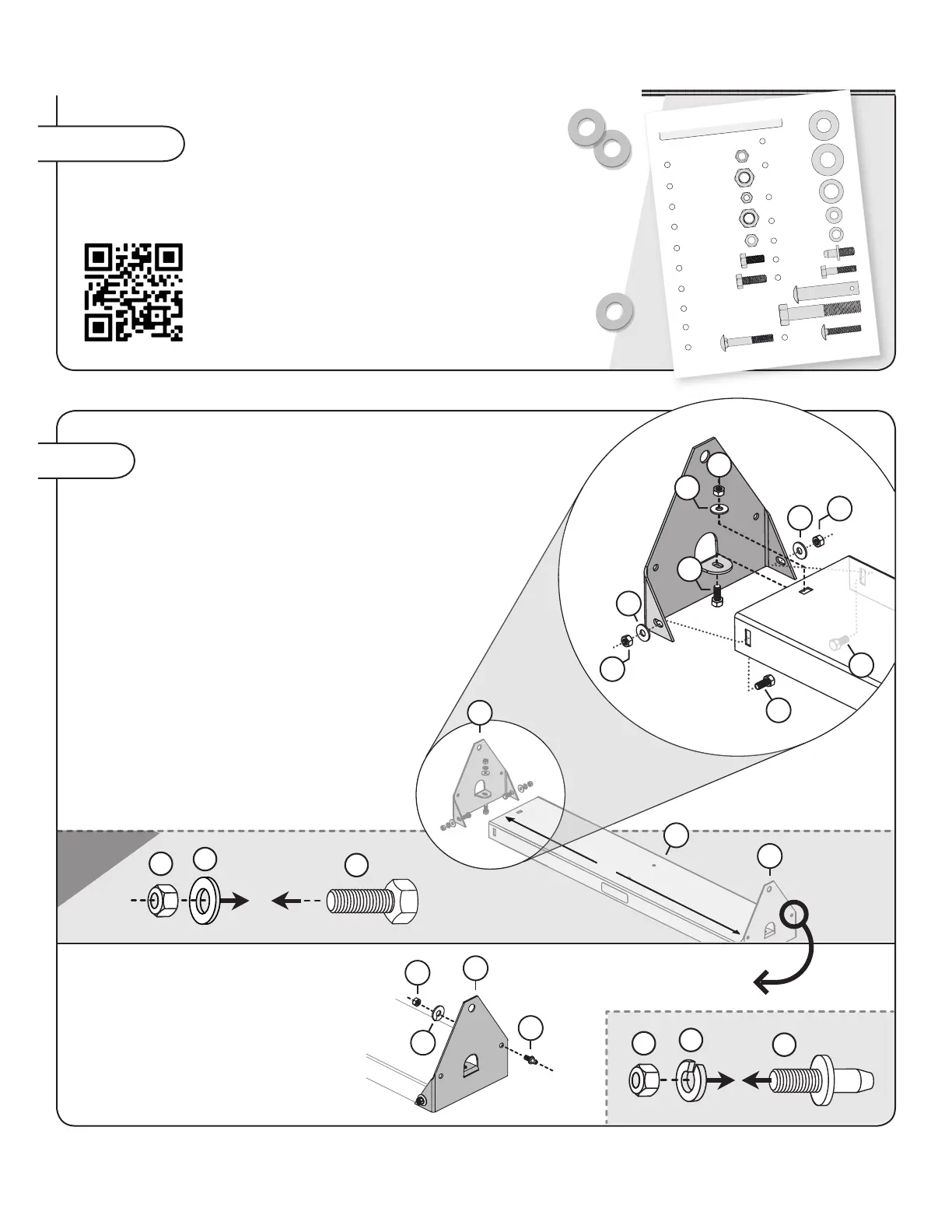

Step 1
Attach End Panels to Tray
Attach the two End Panels (5) to the Tray (3) using the
following as illustrated:
x6 - 5/16” x 3/4” Hex Hd Bolts (13)
x6 - 5/16” Flat Washers (27)
x6 - 5/16” Hex Lock Nuts (15)
NOTE: The inside distance between
the two end panels should be 41 inches
to ensure proper installation.
15
27
27
13
13
27
15
15
13
5
3
41"
5
Attach the Transport Lock
Pin (22) to End Panel (5) using
a 5/16" Lock Washer (33) and 5/16”
Hex Nut (34), as shown.
13
27
15
