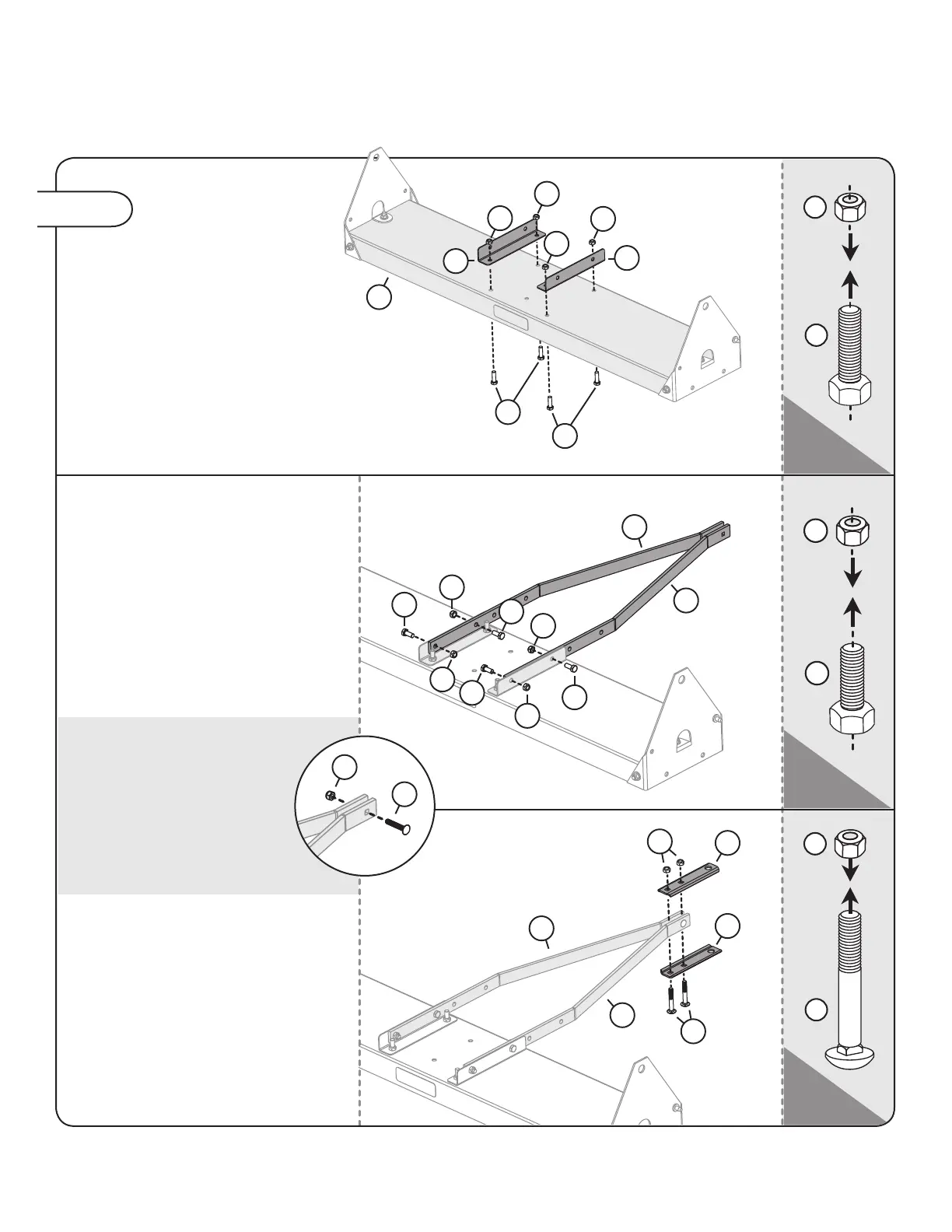

ASSEMBLY
Install Drawbar
Attach Drawbar brackets (29)
to the tray (3) using the following
as illustrated:
x4 - 5/16” x 1” Hex Head Bolts (14)
x4 - 5/16" Hex Lock Nuts (15)
Step 2
Align the two clevis brackets (1)
with the drawbars (4) and secure
by straddling the bolt that was just
added with two 5/16" x 2" Carriage
Bolts (30) from below.
Lock in place with two 5/16" Hex
Lock Nuts (15) and secure the
remaining bolt that these straddle.
15
x4
x2
4
4
15
13
13
15
15
13
15
13
Attach the drawbars (4) to
the drawbar brackets that were
just attached. Use the following
hardware as illustrated:
x4 - 5/16” x 3/4”
Hex Head Bolts (13)
x4 - 5/16" Hex Lock Nuts (15)
1
1
Run the 1/4 x 1-1/2"
Carriage Bolt (31) through
the end of the tow bars (4).
Start to add
(but do not tighten) the
1/4-20" Nylon Lock Nut (24).
31
24
30
15
3
29
29
15
15
15
15
14
14
30
4
4
13
15
14
15
