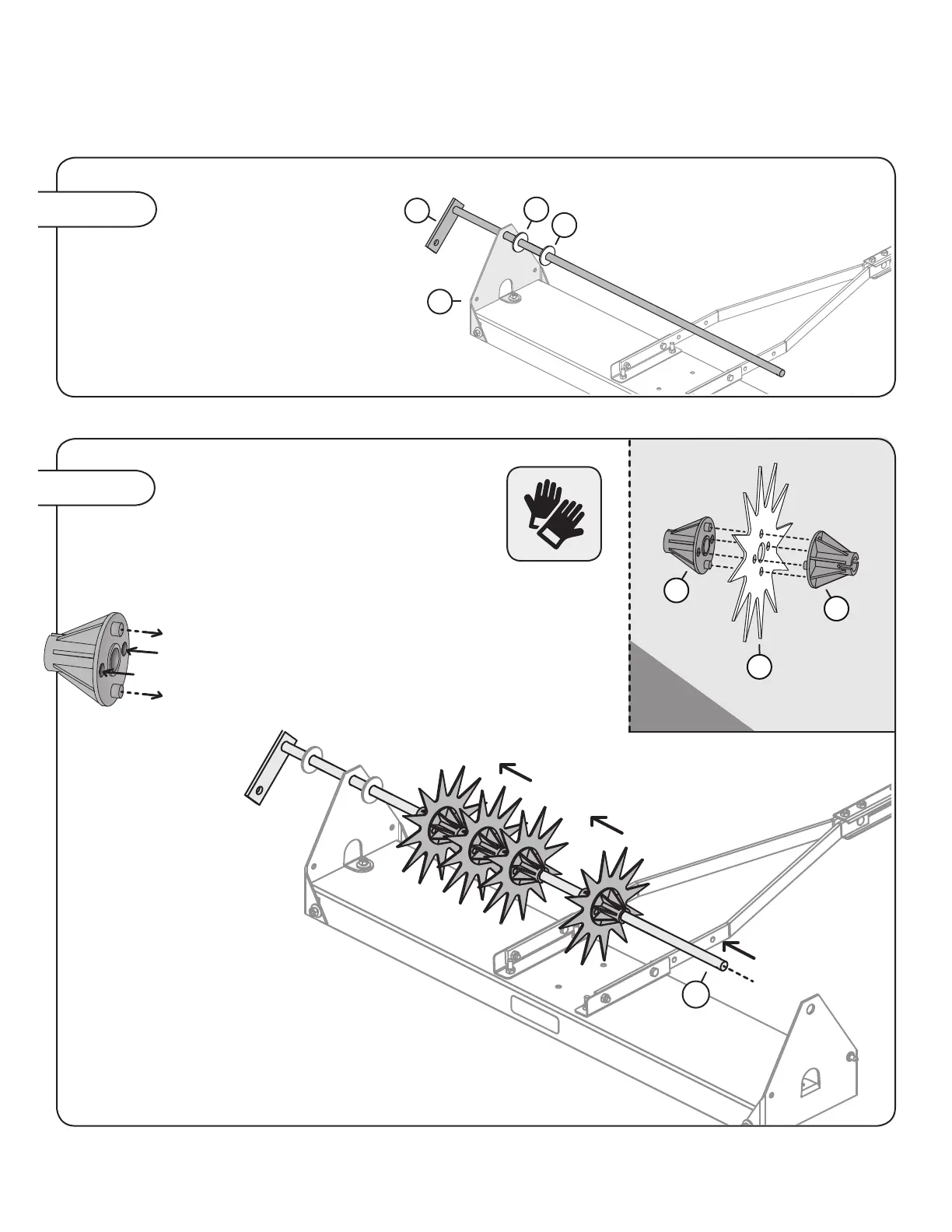

ASSEMBLY
WEARING
GLOVES:
Position the eleven
Tines (7) and twenty-two
Spacer/Bearing Tubes (25)
on the Axle Assembly (6)
as follows:
• Bearing, Small End First (25)
• Aerator Tine (7)
• Bearing, Large End First (25)
CAUTION: GLOVES ARE REQUIRED WHEN
HANDLING AERATOR TINES. Tines have extremely
sharp points. Use caution when handling.
Step 3-B
NOTE: The Bearings (25) have two small openings
and extensions. These are designed to sandwich the
Tines (7), sliding through and connecting.
Slide the Axle (6) through the hole
in the End Panel (5, right side).
Add two 5/8" Thick, Flat Washers (16)
to the axle.
Step 3-A
16
16
6
5
6
