Brinly SAT2-40BH-P User Manual

10 1019101-E
English Manual
================================================================================================
ASSEMBLY
6
5
2616
6
5

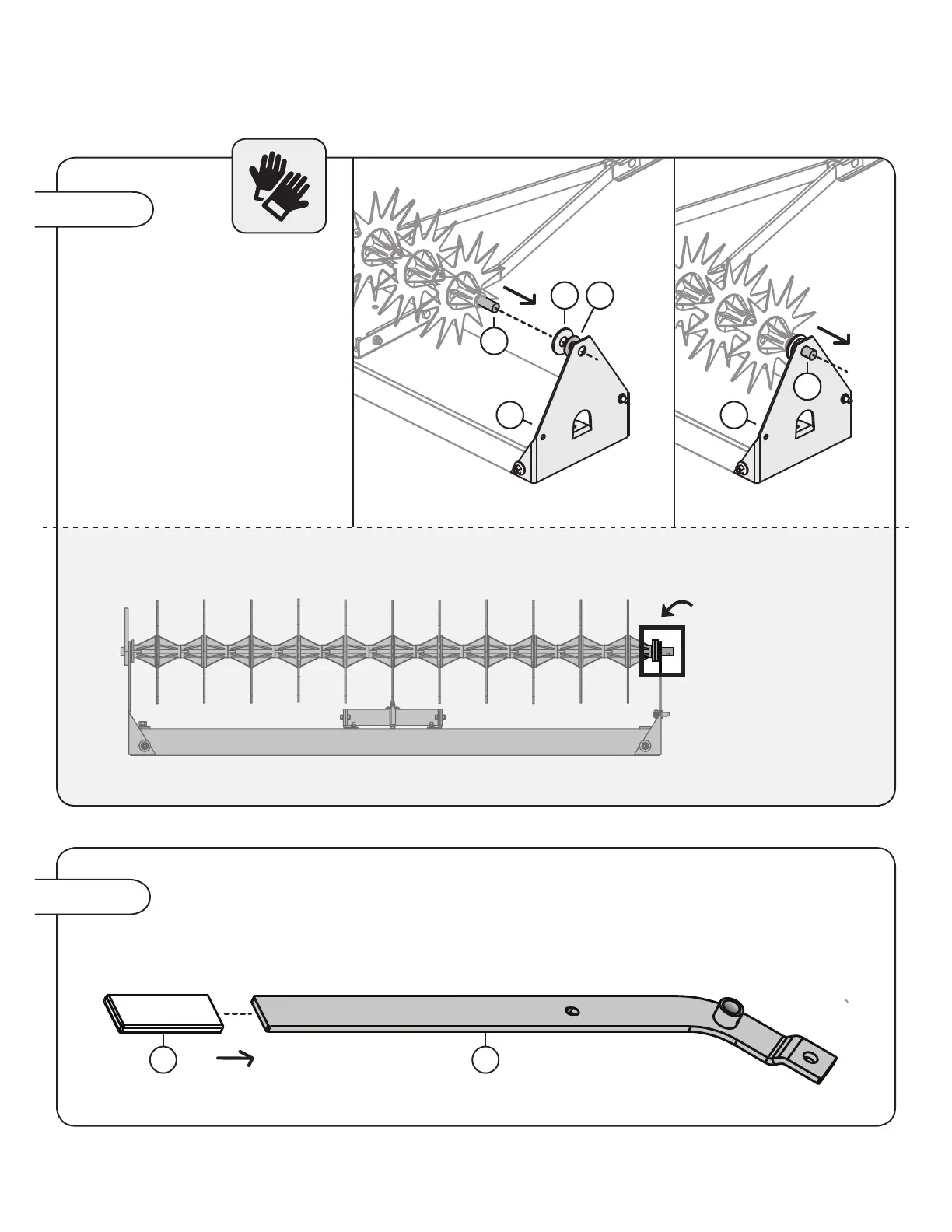

Step 3-C
Position as many extra
washers (16 or 26)
as needed to eliminate any
side-to-side movement
and push Axle Assembly (6)
through hole in the left End
Panel (5) as far as
possible.
See layout below.
IF LOOSENESS
EXISTS, use
additional 5/8"
Thick or Thin
Washers (16 or 26)
inside the
End Panel to
eliminate any side
movement.
NOTE: Tines must not move from side to side inside opening of end panels.
Step 4-A
Slide the Handle Grip (10) on to the Handle Assembly (8) as illustrated.
10 8
