Brinly ST-152BH - OPERATION; PRE-OPERATION SAFETY; INSTALLING SPRAYER; REMOVING SPRAYER

26 1018959-B
==================================================================================================
OPERATION

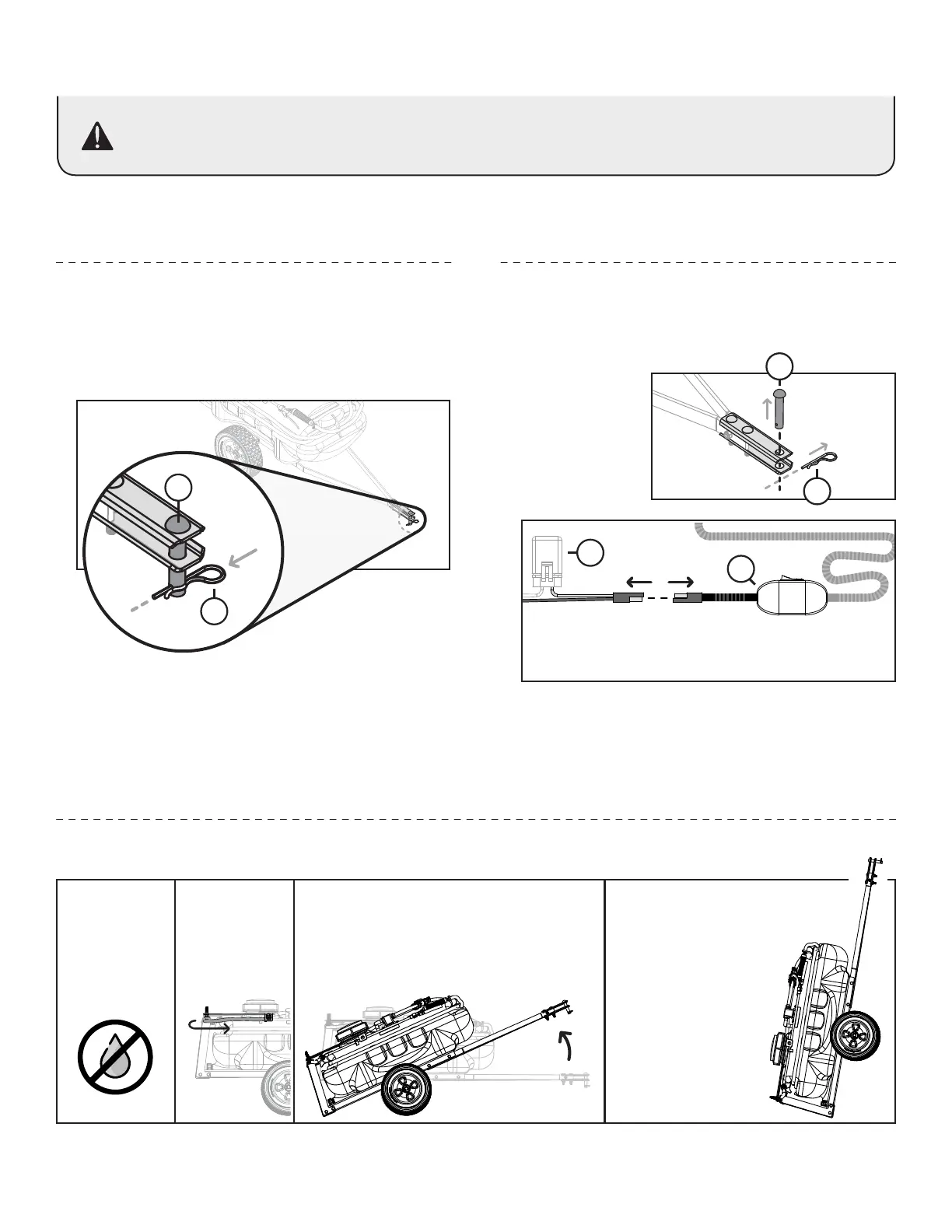

INSTALLING SPRAYER
STORING SPRAYER
1. Park Machine safely.
(See Towing Machine manual).
2. Align sprayer towbar with towing machine hitch.
3. Install Hitch Pin through the sprayer towbar and machine
hitch. Secure Hitch Pin (45) with Hairpin Cotter (49).
CAUTION: Avoid Injury!
Before installing or removing the sprayer, make sure the towing vehicle is parked safely.
Sprayer can be stored in a vertical position, signicantly reducing the amount of space needed.
49
45
REMOVING SPRAYER
1. Park machine safely.
(See Towing Machine manual)
2. Unload sprayer tank before disconnecting from
towing machine hitch.
3. Remove
the Hairpin
Cotter (49) and
Hitch Pin (45).
4.
5. Push sprayer away from towing machine.
6. Re-install hitch pin (45) and hairpin cotter (49) through the
sprayer towbar.
1.
IMPORTANT:
Ensure tank
is completely
empty of all
liquids.
2.
Rotate the
boom arms
in, toward the
sprayer tank.
3.
Lift towbar up,
and rotate sprayer onto
the rear boom supports.
4.
Allow the sprayer
to sit vertical.
Place against a
wall, in a corner of
the garage, or any
other convenient
place for storage.
45
49
Unhook the Wire Harness with Switch (39) from the
Wire Harness Battery Connecter (38).
38
39
