Nut
Elbow
Important: Water supplies to the
mixer must be with hot on the left
and cold on the right when
viewed from the front.
Wall plugs
Fixing
screws
This shower valve is designed for
installations where a recessed valve is
already installed in the wall cavity
and is to be replaced, or for new
installations.
Before Installation
Flush through the pipework to
ensure removal of any debris. Turn
off the mains water supply and
close any isolating valves.

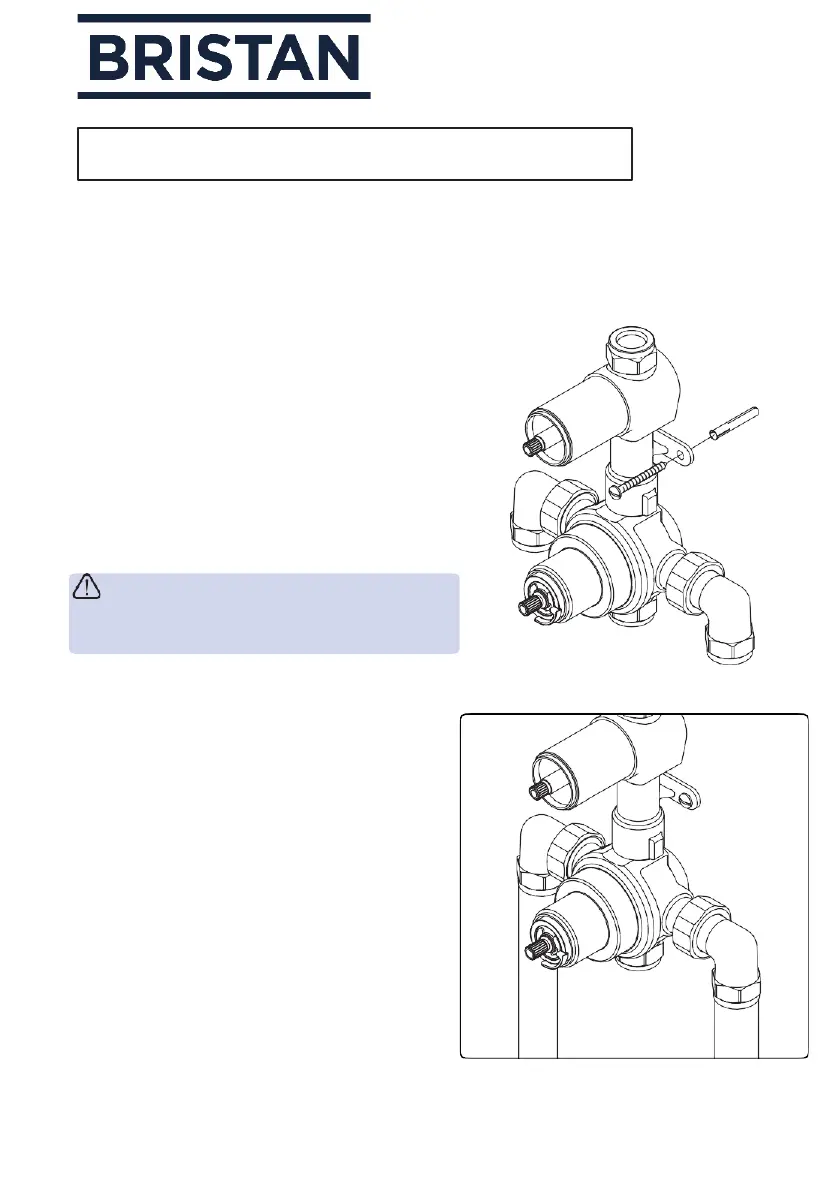

1. Attach shower valve to wall
Place the shower valve in the required
position and mark the centres of the
fixing holes onto the wall.
Warning: Please check for any
hidden pipes and cables before drilling
holes in the wall.
Drill suitable holes and insert the wall
plugs. Securely attach the shower valve
to the wall using the screws supplied.
2.Connect water supply pipes
Insert 15mm hot and cold water supply
pipes into the inlet connections and
tighten nuts, ensuring the olives are
fitted.
3. Plumb in outlets
Insert 15mm pipework into the top
outlet and plumb into the users
chosen product. Ensure the olives are
fitted when tightening the nuts.
Installation – Shower Valve
