Fitting the Wall Outlet
There are two methods of fixing
the wall outlet depending on the
type of wall:
a: With rear access once wall
finished Fit the rubber washer to
the back of the wall outlet, place
the assembly through a
25-30mm hole in the wall and secure
with the backnut ensuring the
washer is fitted between the
backnut and the wall.
Connect the wall outlet assembly
to the shower valve outlet.
b: Without rear access once wall
finished
Fit a ‘1/2” female connection’ (not
supplied) within the wall cavity and
plumb in from the shower valve.
Screw the wall outlet into the ‘1/2”
female connection’ using a suitable
thread sealant ensuring the rubber
seal is fitted to the back of the wall
outlet.
Note: The backnut and washer
are not required.

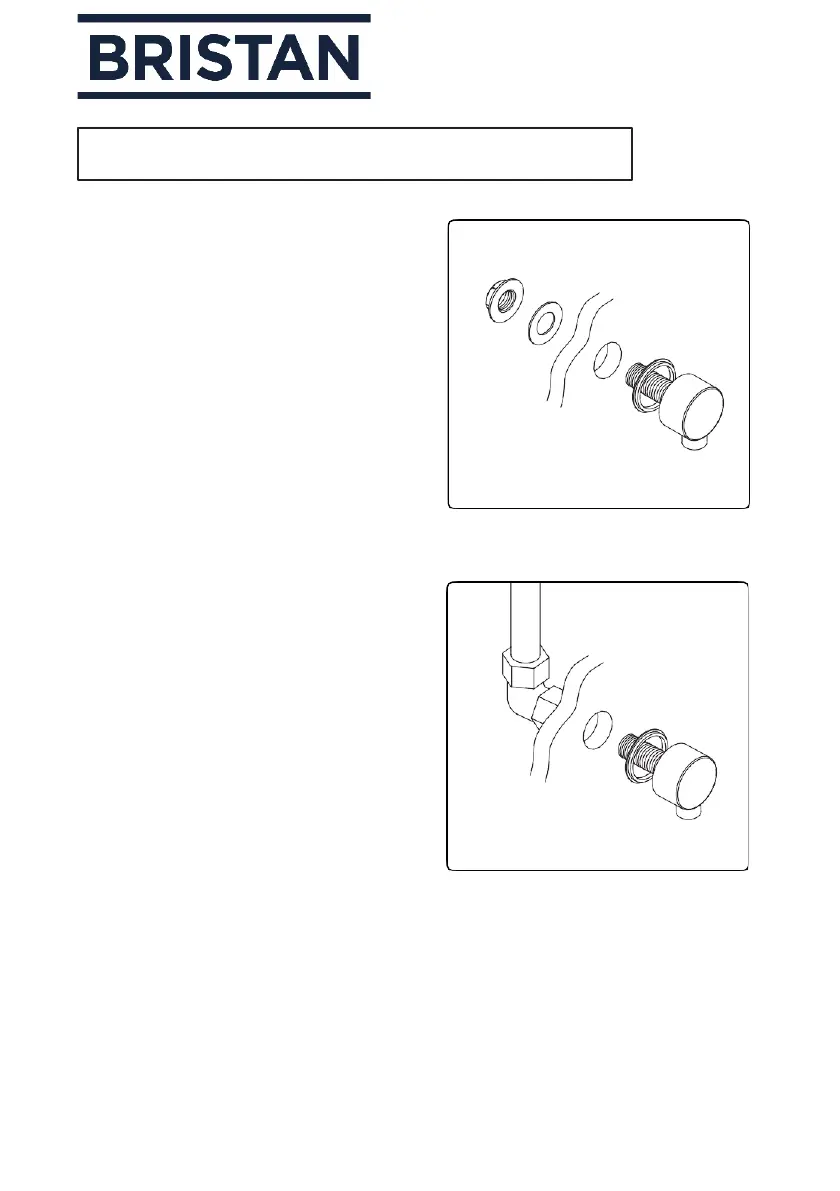

Backnut
Washer
Wall
Rubber
seal
Wall
outlet
Wall
Rubber
seal
Wall
outlet
Female
fitting
Installation – Wall Outlet
