Brivis BX3 User Manual

281 Issue 1 - Service Manual - BX3
7

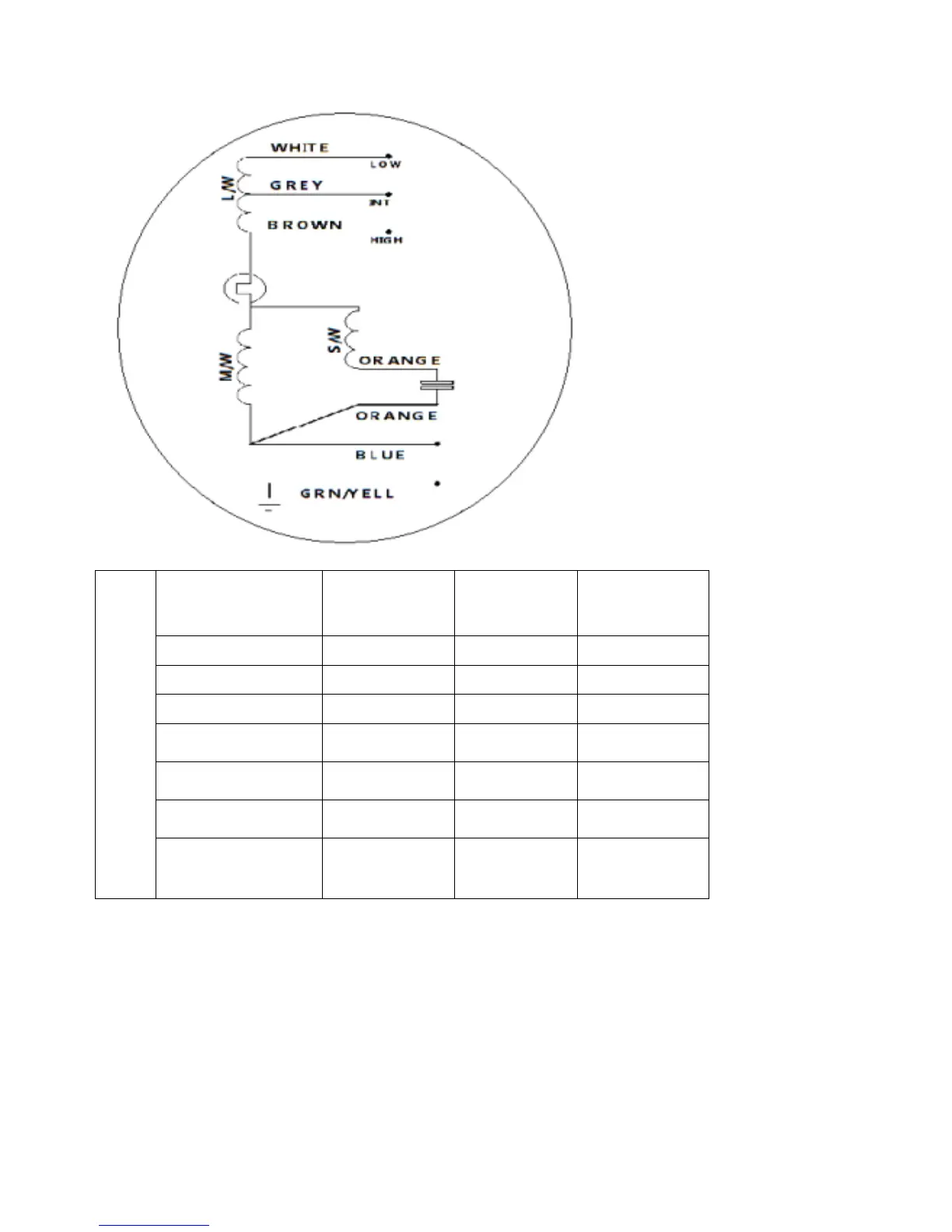

1.7 Motor Wiring Diagrams
Main
Fan
Motor
Model
Fasco 250W
808555MVA-A22
Fasco 315W
80855NVA-A13
Fasco 600W
806155082-17
Power
240Volts 240Volts 240Volts
Maximum Current
1.8 Amp 2.5 Amp 4.4 Amp
Capacitor
6 µF 10 µF 25 µF
High Winding
Resistance @ 20°C
20.6 Ohms 11 Ohms 6.9 Ohms
Medium Winding
Resistance @ 20°C
26.1 Ohms 14.6 Ohms 8 Ohms
Low Winding
Resistance @ 20°C
31.6 Ohms 18 Ohms 9.3 Ohms
Impellor Size –
diam. x width
255mm x 180
mm
255mm x 180
mm
284mm x 265
mm
