Brivis BX3 User Manual

281 Issue 1 - Service Manual - BX3
3

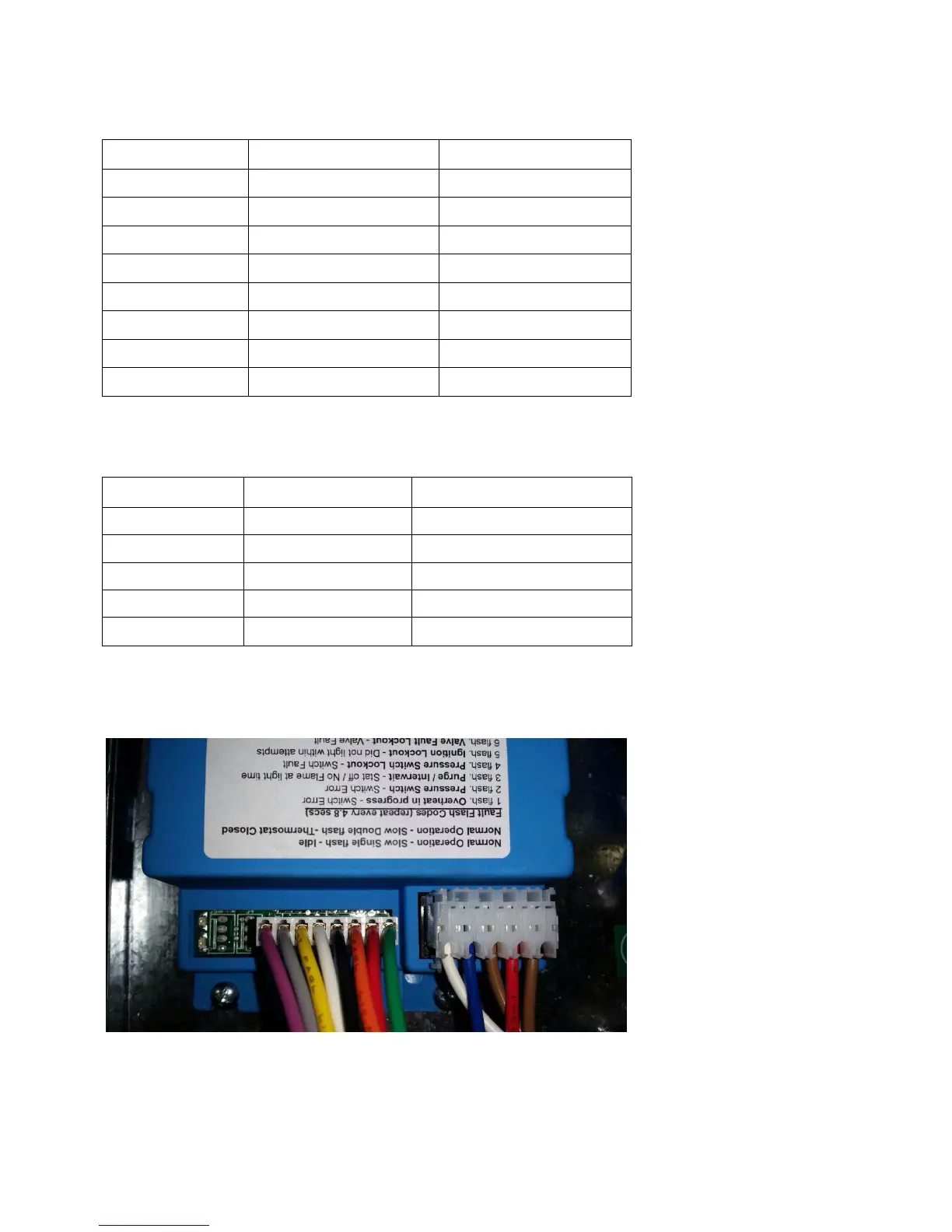

1.3 Wiring Colour Code
Low Voltage (From left to right refer to diagram in section 1.1)
Pin Function Colour
1 Gas Valve Violet
2 Gas Valve Grey
3 Pressure Switch Yellow
4 W White
5 Hi-Limit Black
6 24Vac (Hi-Limit) Orange
7 24Vac Red
8 Ground Green
High Voltage (From left to right refer to diagram in section 1.1)
Pin Function Colour
1 Flame Sense White
2 Neutral Blue
3 Combustion Fan Brown
4 Circulation Fan Red
5 Active Brown
Wiring Colour
