Rinnai 13 Ducted Gas Heater OM
4. Zoned Systems
Some systems provide the option of dividing the home into different climate zones. This can be achieved by using
multiple heaters, or by using one heater and zone dampers that switch between different zones. When installed,
the zone features will have been configured by the installer and can be operated in either manual or AUTO mode.
Only zones that have been installed and configured by the installer display; labelled from Zone A to Zone D. Zones A
and B are operated by Key 4, and Zones C and D are operated by Key 5. Zones can be selected and deselected
by pressing the corresponding key.
Note: For ZonePlus systems the Owner’s Manual may be downloaded from the Brivis website.
4.1
Zoning Symbols
Zone operation utilises the following symbols:
• An arrow beside a zone indicates the zone is selected for use.
• A solid arrow indicates that the zone is open and receiving heating from the unit.
• A flashing arrow indicates that the zone has reached the desired temperature and is closed.
5. Time and Day Settings
5.1 Set Time and Day
a. Press the on/off button to turn the networker off.

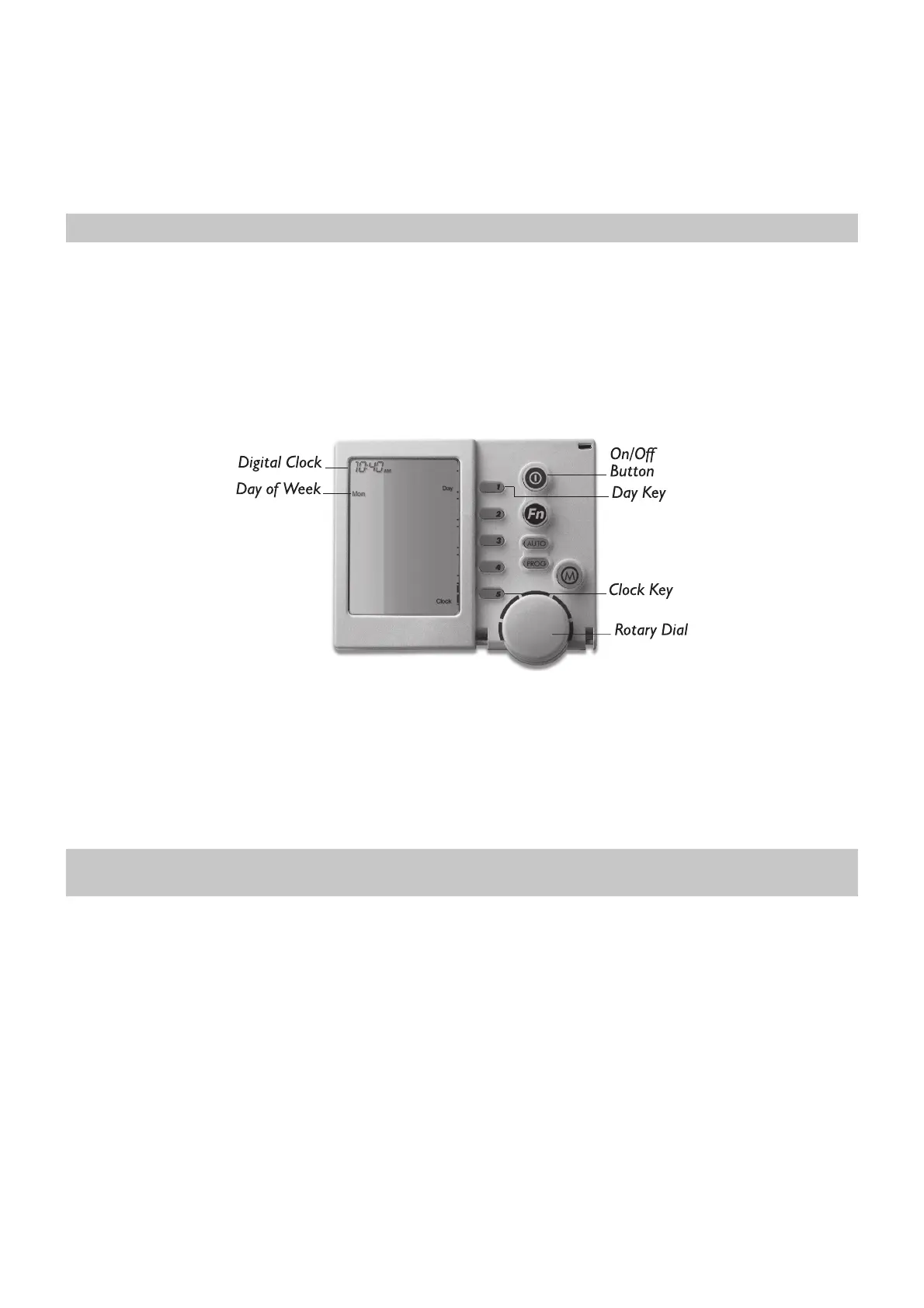

b. Press Key 5 to enter clock setting mode. The digital clock flashes.
c. Use the rotary dial to select the correct time.
d. To set the day, repeatedly press Key 1 until the correct day of the week displays.
e. Press Key 5 to save the new settings and exit clock setting mode.
Note: If dual networkers are installed, only the master control has the ability to set the clock time and adjust program settings. The
master control can be identified by the word
Clock
beside Key 5, when the networkers are in the off position.
