Broan 353 - Page 6

box with the appropriate connector.
2. For a standard installation, connect the two leads in the thermostat wiring box to the two power leads. Attach ground
wire from the power cable to the green screw in the box.

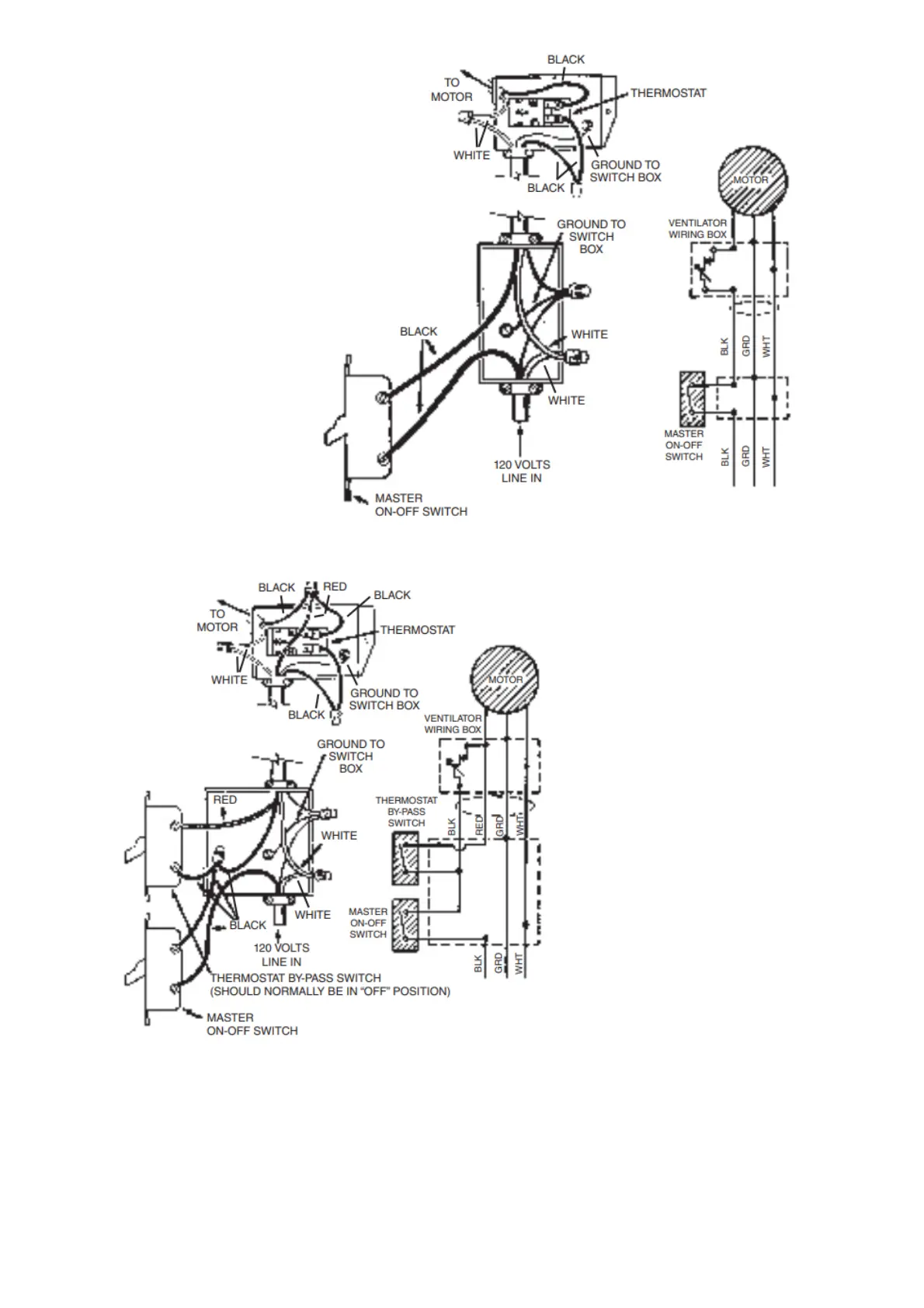

This diagram shows how to bypass the thermostat to turn the ventilator on or off manually.
