Page 4
MODEL 741SN
USE AND CARE USE AND CARE
WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND
LOCK OUT SERVICE PANEL BEFORE CLEANING OR SERVIC-
ING THIS UNIT.
BULB REPLACEMENT
Remove finial nut and cap and remove glass shade. Replace bulb
or bulbs as required. Replace glass shade, finial cap & securely
tighten finial nut.
Use 60 Watt maximum incandescent bulb.
MOTOR LUBRICATION
The motor is permanently lubricated. Do not oil or disassemble motor.
CLEANING
TO CLEAN GLASS SHADE AND GRILLE PAN:
Remove finial nut and finial cap and remove glass shade. Shade
can be wiped clean with a mild detergent solution or glass cleaner
and dried with a soft cloth. Remove 2 bulbs. Grille pan may be gently
vacuumed and wiped clean with a soft cloth. Never use abrasive
cloth, steel wool pads or scouring powders on glass shade or grille
pan. METAL AND ELECTRICAL PARTS SHOULD NEVER BE IM-
MERSED IN WATER.
TO CLEAN FAN ASSEMBLY:
Remove grille pan and unplug fan assembly (black receptacle).
Gently vacuum fan, motor and interior of housing. METAL AND
ELECTRICAL PARTS SHOULD NEVER BE IMMERSED IN WATER.

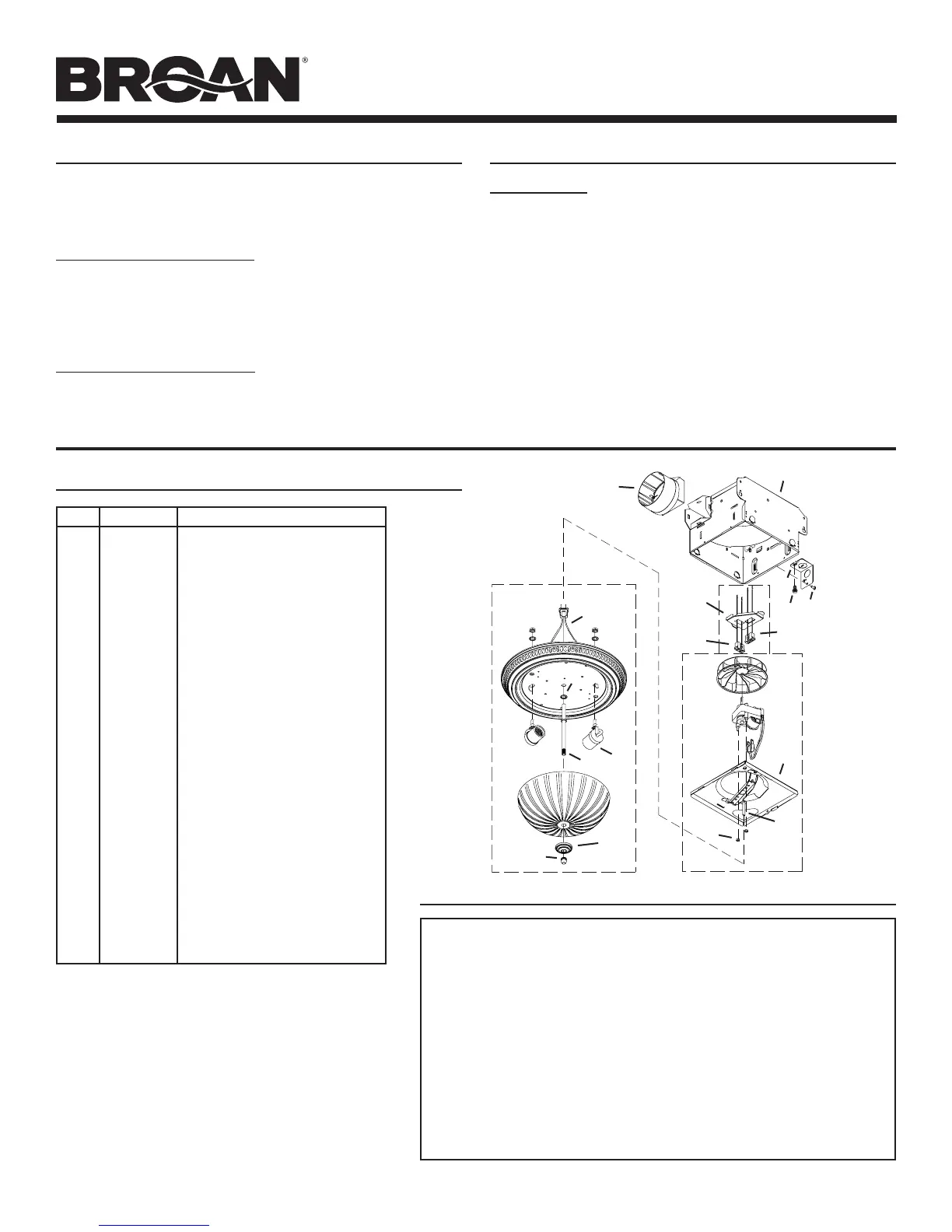

SERVICE PARTS
WARRANTY
99045989A
BROAN-NUTONE ONE YEAR LIMITED WARRANTY
Broan-NuTone warrants to the original consumer purchaser of its products that such products will be free from
defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part
which is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND TUBES. This warranty does
not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse,
negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation
contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE
LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION
WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone:
1-800-637-1453, (b) give the model number and part identification and (c) describe the nature of any defect in the
product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.
Broan, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
KEY PART NO. DESCRIPTION
1 97015574 Finial Nut - Satin Nickel
2 97015575 Finial Cap - Satin Nickel
3 99523652 Shade Mounting Rod
4 99524076 Washer
5 97015320 Lamp Socket (2 req.) (Includes
mounting washer and nut)
6 97015313 Wire Harness
7 99260428 Motor Nut, #6-32 Hex (2 req.)
8 99150618 Grille Screw
9 97014926 Motor Plate
10 99270981 Lamp Receptacle, White
11 99270982 Motor Receptacle, Black
12 98009612 Wiring Panel
13 99150471 Ground Screw
14 99170245 Screw, #8-18 x 3/8”
15 98008868 Wiring Plate
16 97014185 Damper/Duct Connector
17 97014922 Housing Assembly
A 99523770 Light Fixture Assembly
(Includes Glass Shade,
Grille/Pan and Key Nos. 1
thru 6)
B 97015312 Blower Assembly
(Includes Motor, Blower Wheel
& Key Nos. 7, 8 & 9)
C 97015171 Wire Panel Assembly
(Includes Key Nos.10, 11 & 12)
Order replacement parts by “PART NO.” - not by “KEY NO.”
1
2
3
5
6
7
8
9
10
11
12
14
15
16
17
A
B
C
4
13
