- 8 -

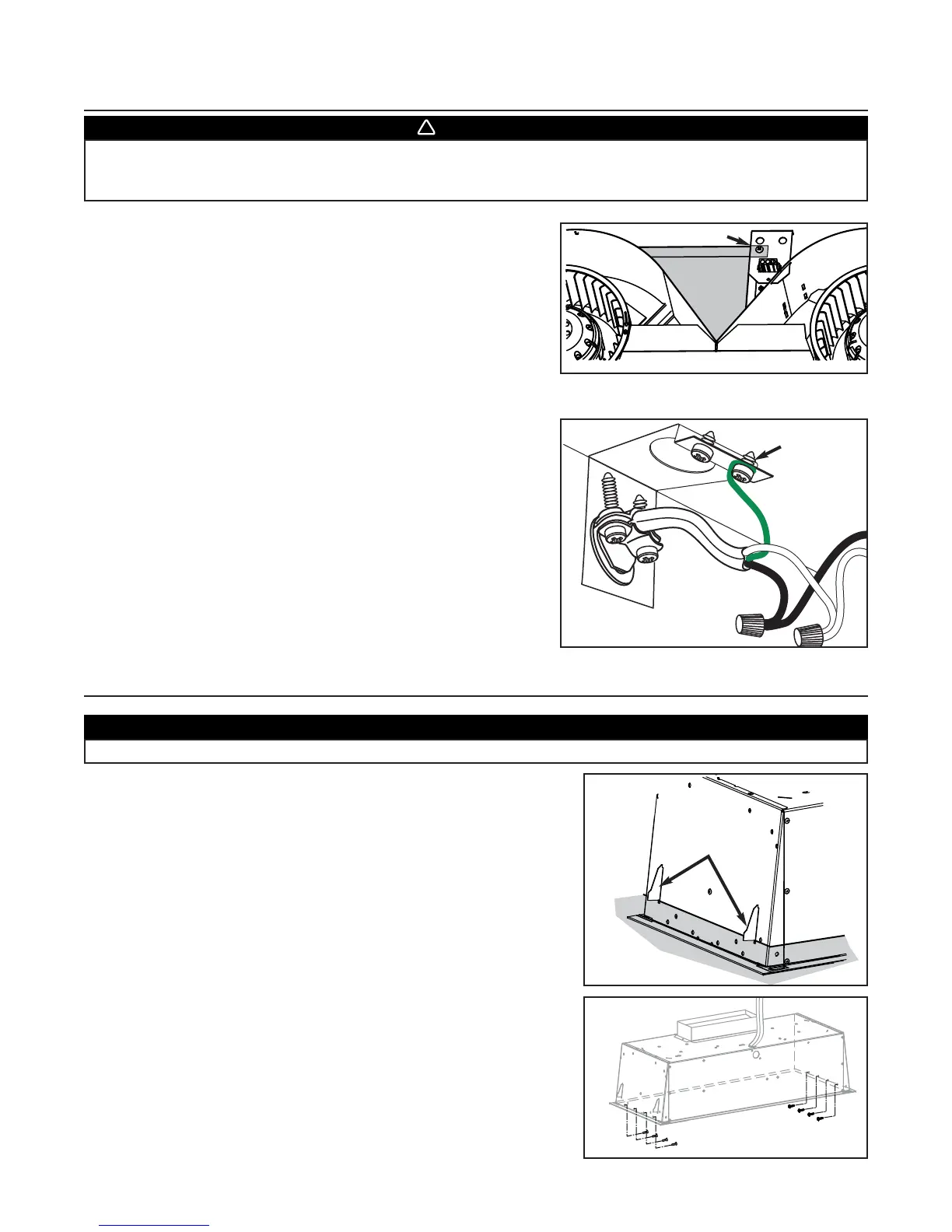

14. INSTALL THE POWER PACK
Lift the power pack in custom hood until the bottom of the clasping springs
(2 per side) rests on the top of the custom hood base (grey zone in illustration
at right).
From inside the power pack, using provided no. 8-10 x 1/2” screws, mount the
power pack to the custom hood base. To do so, lift one side until its flange rests
on the outer side of the custom hood base and use 2 screws to secure in place.
Do the same for the other side, then finalise mounting with 2 other screws for
each side. See figure at right for mounting screws specific locations.
VERTICAL EXHAUST INSTALLATION ONLY
Make sure the adapter/damper enters the ducting and the damper opens freely.
Wherever it is possible, seal connections with metal foil duct tape.
CAUTION
Take care not to kink ducting or pinch electrical cable when installing the power pack.
CLASPING SPRINGS
13. CONNECT WIRING
ALL UNITS: Connect cable using provided wire connectors. Connect wires
as follow: BLACK to BLACK, WHITE to WHITE and GREEN or
BARE wire under ground screw (A). DO NOT FORGET TO
CONNECT THE GROUND.
WARNING
Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable
codes and standards. Before connecting wires, switch power off at service panel and lock service
disconnecting means to prevent power from being switched on accidentally.
Position the power pack below the installed custom hood.
DUAL BLOWER UNIT: Remove the screw retaining the electrical compartment
cover. Lift out the cover and install the wire clamp
(included in parts bag). Insert the house wiring cable
through the wire clamp and tighten to secure the
cable.
SINGLE BLOWER UNIT: Position the power pack below the installed custom hood. Insert the house wiring cable through the wire
clamp previously installed in step 10. Tighten the wire clamp to secure the cable.
A
RETAINING SCREW
DUAL BLOWER UNIT: Reinstall the electrical compartment cover.
