Broan BCDJ1 - Finalize EZ1 Hood Installation; Securing Hood to Framed Cabinets; Securing Hood to Frameless Cabinets

INSTALLATION MANUAL
INSTALLATION
17
FRAMED
CABINET
FRAMELESS
CABINET

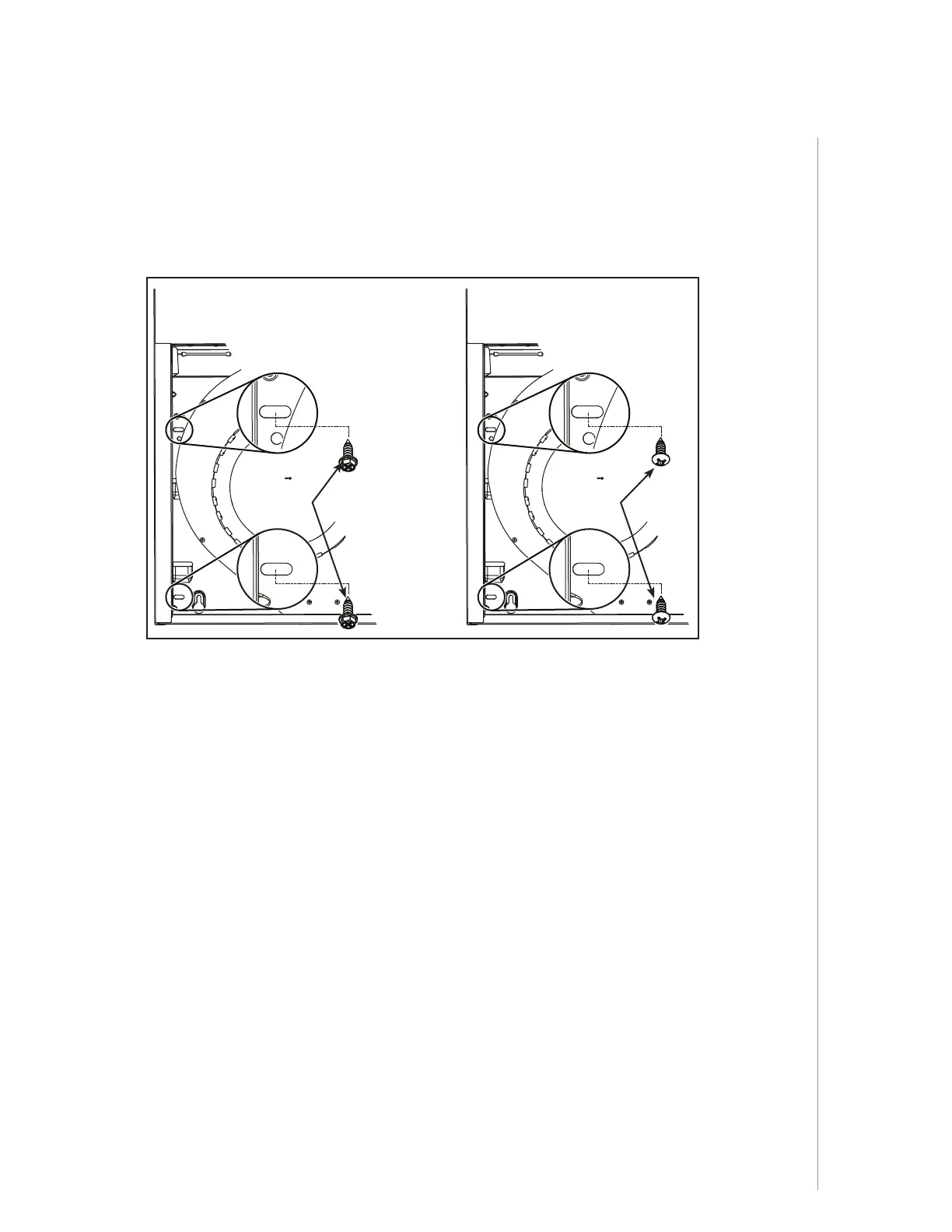

7 ] For framed cabinet, secure the hood to the EZ1 brackets using four (4) no. 8-18 x 1/2” metal
screws (included in parts bag). Insert two (2) screws per side, in the slots (as shown in insets
on illustration below).
8 ] For frameless cabinet, secure the hood to the cabinet using four (4) no. 8 x 5/8” round head
wood screws (included in parts bag). Insert two (2) screws in the slots (as shown in insets on
illustration below).
9 ] Attach power cable to the hood using the strain relief.
WOOD
SCREWS
METAL
SCREWS
