INSTALLATION MANUAL

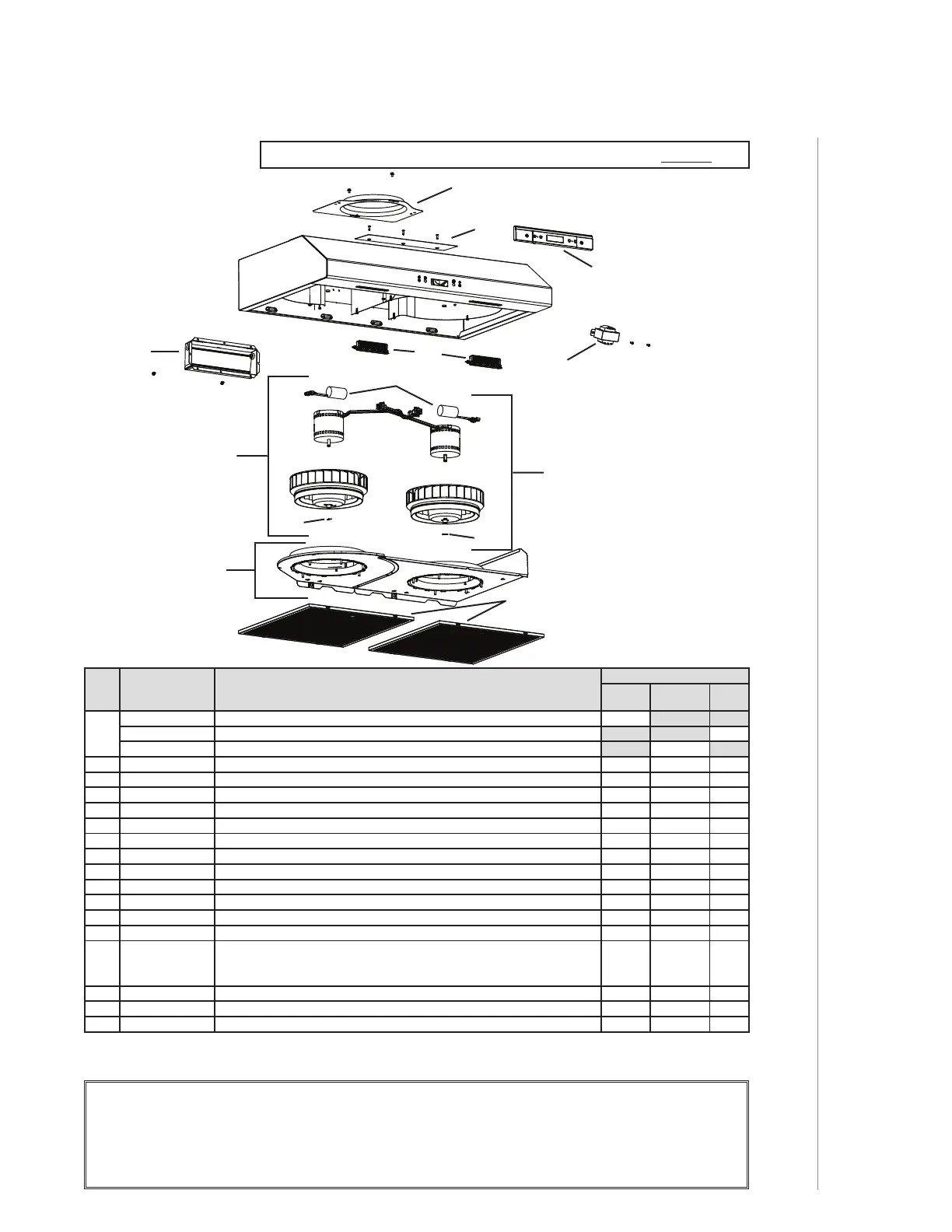

SERVICE PARTS
23
BCDJ1 AND
NCDJ1 SERIES
KEY
NO.
P
ART NO.DESCRIPTION
QUANTITY
30"
BLACK**
30"
STAINLESS
30"
WHITE
1
S97020029 R
ECIRCULATION COVER PLATE, BLACK (INCLUDING SCREWS)1
S97020030 R
ECIRCULATION COVER PLATE, WHITE (INCLUDING SCREWS)1
S97020031 R
ECIRC. COVER PLATE, STAINLESS STEEL (INCLUDING SCREWS)1
2 SR680508*** 7'' R
OUND DUCT PLATE (INCLUDING SCREWS)111
3 S97020534 3¼”
X 10” DAMPER ASSEMBLY (INCLUDING SCREWS)111
4 S97020412 C
APACITOR (INCLUDING TIE WRAP)222
5 S97021326 B
LOWER ASS’Y CW (INCLUDING ITEM 4 AND 6 AND HARDWARE)111
6 SR99420635 C
LIP FOR FANPELLER 222
7 S97021339 B
OTTOM COVERS (WITH INLETS)111
8 S99010435-002 G
REASE FILTER - MICRO MESH ROUND -TYPE C4 (SET OF 2) 1 1 1
9 S97021327 B
LOWER ASS’Y CCW (INCLUDING ITEM 4 AND 6 AND HARDWARE)111
10 S97020444 LED
MODULES (PAIR)111
11 S97021392 T
RANSFORMER KIT, 24 V 18 VA (WITH SCREWS)111
12 S97020438 LCD C
ONTROL (WITH SCREWS)111
* S97020454 W
IRE HARNESS 111
* S97020360
P
ARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 X 1/2”,
6 ROUND HEAD NO. 8 X 5/8” WOOD SCREWS,
6 NO. 8 X 1/2” COUNTERSUNK WOOD SCREWS
111
* S97020466 N
ON-DUCTED FILTER - TYPE XC (SET OF 2) (NON-DUCTED INSTALLATION ONLY)1 1 1
* S99527587 N
ON-DUCTED FILTER CLIP KIT (INCL. 4 CLIPS)111
* S97020470 E
ASY INSTALL KIT (INCLUDING HARDWARE)111
* ITEM NOT SHOWN.
** N
OT AVAILABLE FOR NCDJ1 SERIES.
*** N
OT INCLUDED IN NCDJ1 SERIES.
C
D
E
F
I
J
K
L
M
G
G
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC or Venmar Ventilation ULC genuine
replacement parts only. Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts are specially designed for each
unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third
party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in
premature failing. Broan-NuTone LLC and Venmar Ventilation ULC recommend to contact a certified service depot for all replacement
parts and repairs.
B
H
Second Generation: Serial number 091810008493 and up.
