Broan BCDJ1 - Service Parts for BCDJ1 Gen 2; BCDJ1 Gen 2 Component Breakdown; 36;42-Inch Model Parts List (Gen 2)

INSTALLATION MANUAL

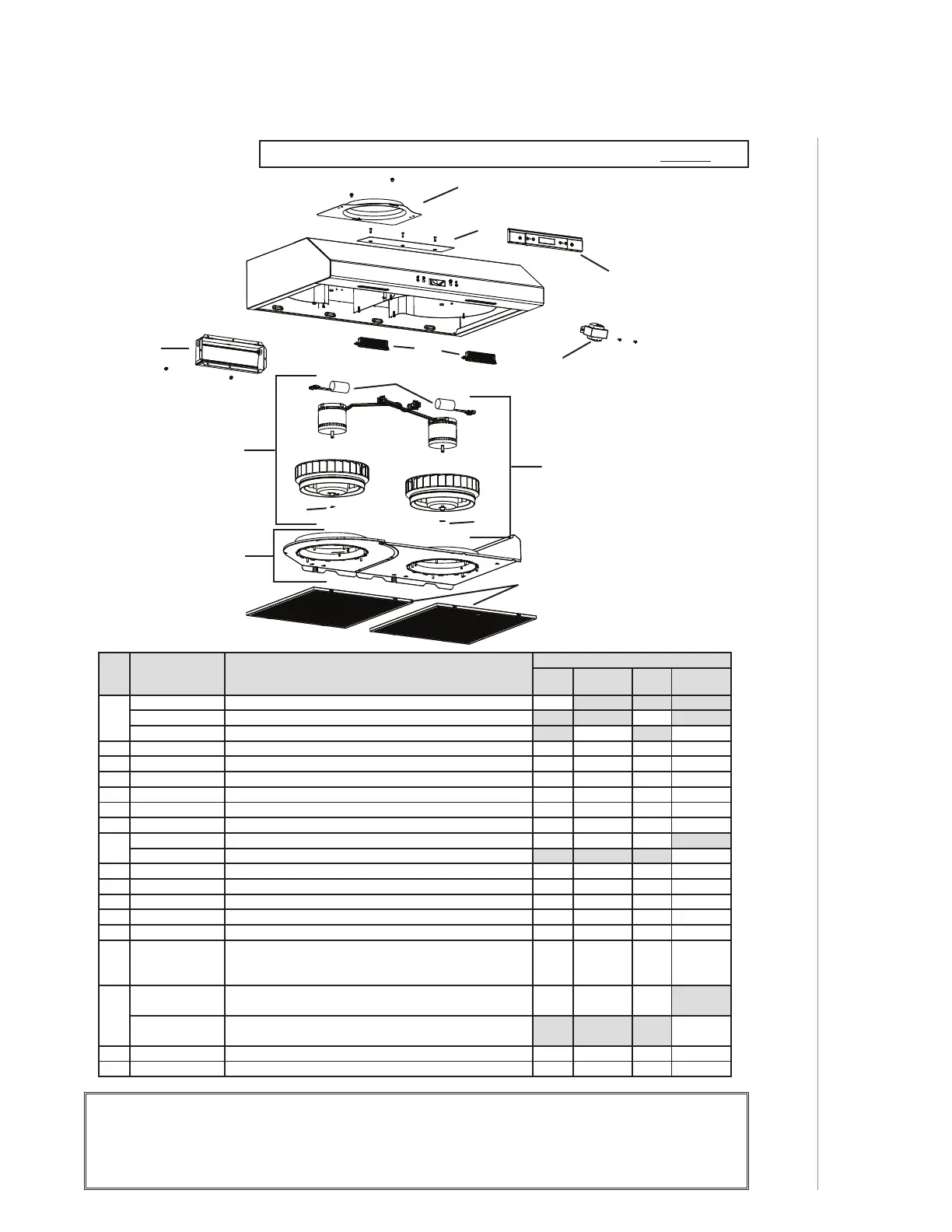

SERVICE PARTS
25
KEY
NO.
P
ART NO.DESCRIPTION
QUANTITY
36"
BLACK
36"
STAINLESS
36"
WHITE
42"
STAINLESS
1
S97020029 R
ECIRCULATION COVER PLATE, BLACK (INCLUDING SCREWS)1
S97020030 R
ECIRCULATION COVER PLATE, WHITE (INCLUDING SCREWS)1
S97020031 R
ECIRC. COVER PLATE, STAINLESS STEEL (INCLUDING SCREWS)1 1
2 SR680508 7'' R
OUND DUCT PLATE (INCLUDING SCREWS) 1111
3 S97020534 3¼”
X 10” DAMPER ASSEMBLY (INCLUDING SCREWS) 1111
4 S97020412 C
APACITOR (INCLUDING TIE WRAP) 2222
5 S97021326 B
LOWER ASS’Y CW (INCL. ITEMS 4 AND 6 AND HARDWARE) 1111
6 SR99420635 C
LIP FOR FANPELLER 2222
7 S97021339 B
OTTOM COVERS (WITH INLETS) 1111
8
S99010435-003 G
REASE FILTER - MICRO MESH ROUND -TYPE D4 (SET OF 2) 1 1 1
S99010435-004 G
REASE FILTER - MICRO MESH ROUND -TYPE E4 (SET OF 2) 1
9 S97021327 B
LOWER ASS’Y CCW (INCL. ITEMS 4 AND 6 AND HARDWARE)1111
10 S97020444 LED
MODULES (PAIR) 1111
11 S97021392 T
RANSFORMER KIT, 24 V 18 VA (WITH SCREWS) 1111
12 S97020438 LCD C
ONTROL (WITH SCREWS) 1111
* S97020454 W
IRE HARNESS 1111
* S97020360
P
ARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 X 1/2”,
6 ROUND HEAD NO. 8 X 5/8” WOOD SCREWS,
6
NO. 8 X 1/2” COUNTERSUNK WOOD SCREWS
1111
*
S97020467
N
ON-DUCTED FILTER - TYPE XD (SET OF 2)
(NON-DUCTED INSTALLATION ONLY)
111
S97020468
N
ON-DUCTED FILTER - TYPE XE (SET OF 2)
(NON-DUCTED INSTALLATION ONLY)
1
* S99527587 N
ON-DUCTED FILTER CLIP KIT (INCL. 4 CLIPS) 1111
* S97020470 E
ASY INSTALL KIT (INCLUDING HARDWARE) 1111
* ITEM NOT SHOWN.
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC or Venmar Ventilation ULC genuine
replacement parts only. Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts are specially designed for each unit
and are manufactured to comply with all the applicable cer tification standards and maintain a high standard of safety. Any third par ty replacement
part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing.
Broan-NuTone LLC and Venmar Ventilation ULC recommend to contact a certified service depot for all replacement parts and repairs.
BCDJ1 SERIES
C
D
E
F
I
J
K
L
M
G
G
B
H
Second Generation: Serial number 091810008493 and up.
