PERMANENT FILTER
(BQ2 AND BQ3 POWER UNITS ONLY)
This filter protects the motor and stops small particles from
escaping to the outside of the power unit wihout the need to
replace it. The filter cleans itself by moving up when the power
unit starts, and dropping down when the unit is turned off.
Under normal use, there is no need to maintenance this filter.
It is possible to remove it to inspect the motor foam filter, or
to replace it if ever it has been damaged (by sharp debris, for
example).

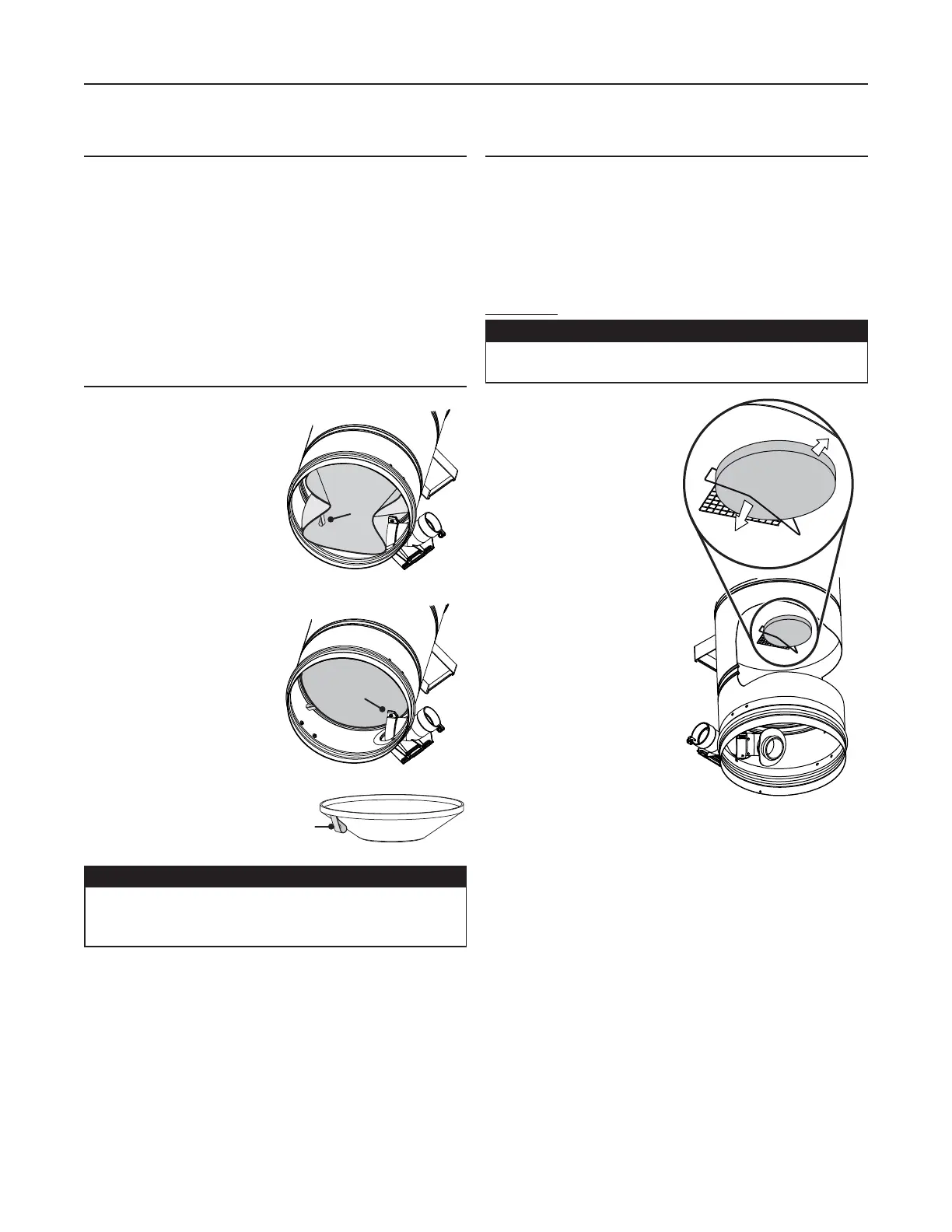

REMOVAL AND INSTALLATION OF
PERMANENT FILTER
(BQ2 AND BQ3 POWER UNITS ONLY)
 Remove the pail from unit.
To remove the permanent
filter, use pull tab (A)
located on edge of filter to
pull and loosen filter from
inlet chamber wall. Squeeze
from both sides of the filter
to the center of the housing.
Then, carefully remove it
from the unit.
 Squeeze the filter in order
to move it past the inlet
opening (B) Let the filter
bear against the unit wall
by releasing the pressure.
Make sure to place the rigid
ring in its groove to ensure
proper sealing.
NOTE: Make sure the filter is
installed so that the pull
tab (A) is accessible
for future filter removal.
MOTOR FOAM FILTER
(ALL UNITS)
A motor foam safety filter, located at the top of the vacuum
chamber provides protection against dirt being pulled into
the motor if the disposable bag or permanent filter should
accidentally be torn. This filter should be checked and cleaned
if necessary when replacement bag is installed (BQ1 unit
only), or when permanent filter is removed (BQ2 and BQ3 units
only). Simply brush filter clean. If the filter is excessively soiled,
hand wash in a water and mild detergent solution and let it dry
completely on a flat surface before reinstalling.
REMOVING
MOTOR FOAM
FILTER
Remove the debris pail
and disposable bag or
permanent filter. Lift the
center of the wire retaining
the motor foam filter and
slide the filter out of its
location.
REINSTALLING
MOTOR FOAM
FILTER
To reinstall the motor foam
filter, reverse the steps
described above.
OPERATION AND MAINTENANCE (CONT'D)
AA0005
A
CAUTION
Operating the power unit without the motor foam
filter will void the warranty.
CAUTION
Be sure to reinstall filter properly. Appropriate
location is critical to insure proper protection of
the motor.
