Broan BQ2 - Troubleshooting Guide....... 12; Service Parts

13
AL0010

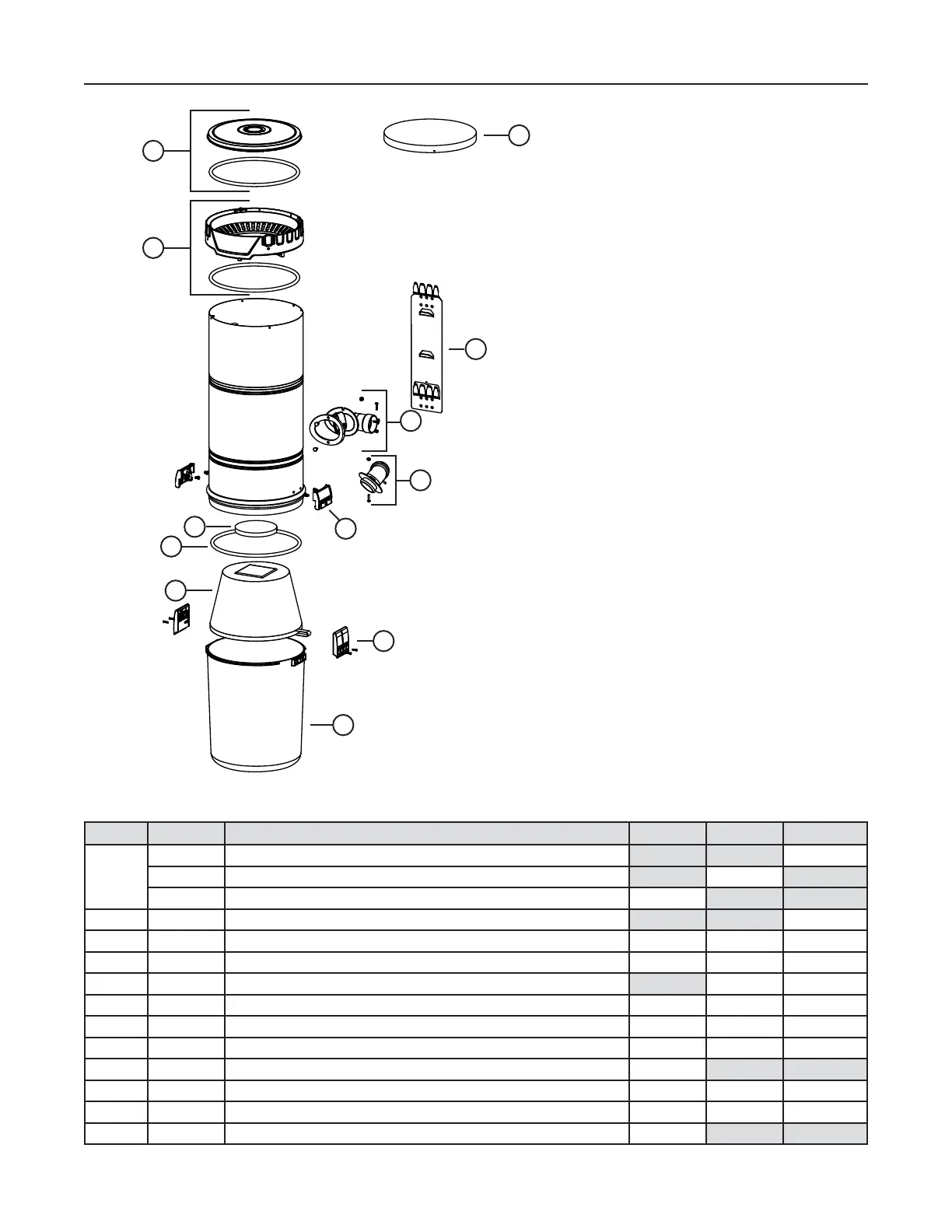

SERVICE PARTS
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition,
you must use Broan-NuTone genuine replacement parts
only. Broan-NuTone genuine replacement parts are specially
designed for each unit and are manufactured to comply
with all the applicable certification standards and maintain
a high standard of safety. Any third party replacement part
used may cause serious damage and drastically reduce the
performance level of your unit, which will result in premature
failing. Broan-NuTone also recommends to contact a
Broan-NuTone certified service depot for all replacement
parts and repairs.
3
10
6
11
KEY NO.PART NO.DESCRIPTION BQ1 BQ2 BQ3
1
S10941409 BQ3 TOP CAP ASSEMBLY (INCLUDING ITEM 4) (UPPER PA RT )1
S10941417 BQ2 TOP CAP ASSEMBLY 1
S10941397 BQ1 TOP CAP ASSEMBLY 1
2 S10941398 BQ3 TOP CAP ASSEMBLY (INCLUDING ITEM 4) (LOWER PAR T)1
3 S10941399 MOTOR FOAM FILTER WITH FASTENER 11 1
4 S10941400 GASKET 11 3
5 S10941401 PERMANENT FILTER 11
6 S99670648 DEBRIS PAIL (INCLUDING KEY NO. 7) 1 1 1
7 S10941199 L
ATCH AND SCREWS 22 2
8 S10941404 LATCH KEEPER WITH SCREWS 22 2
9 S10941405 BAG ADAPTER WITH NUT AND SCREW 1
10 S10941406 INTAKE ELBOW WITH GASKET, SCREWS, AND NUTS 11 1
11 S30390555 UNIT SUPPORT BRACKET 11 1
12 391C D
ISPOSABLE BAG (SET OF 3, NOT SHOWN)1
NOTE: Order service parts by “Part No.” — not by “Key No.”
4
5
7
1
2
BQ3 UNIT
BQ1 AND BQ2 UNITS
8
9
1
