4
CONNECTION
FROM BELOW

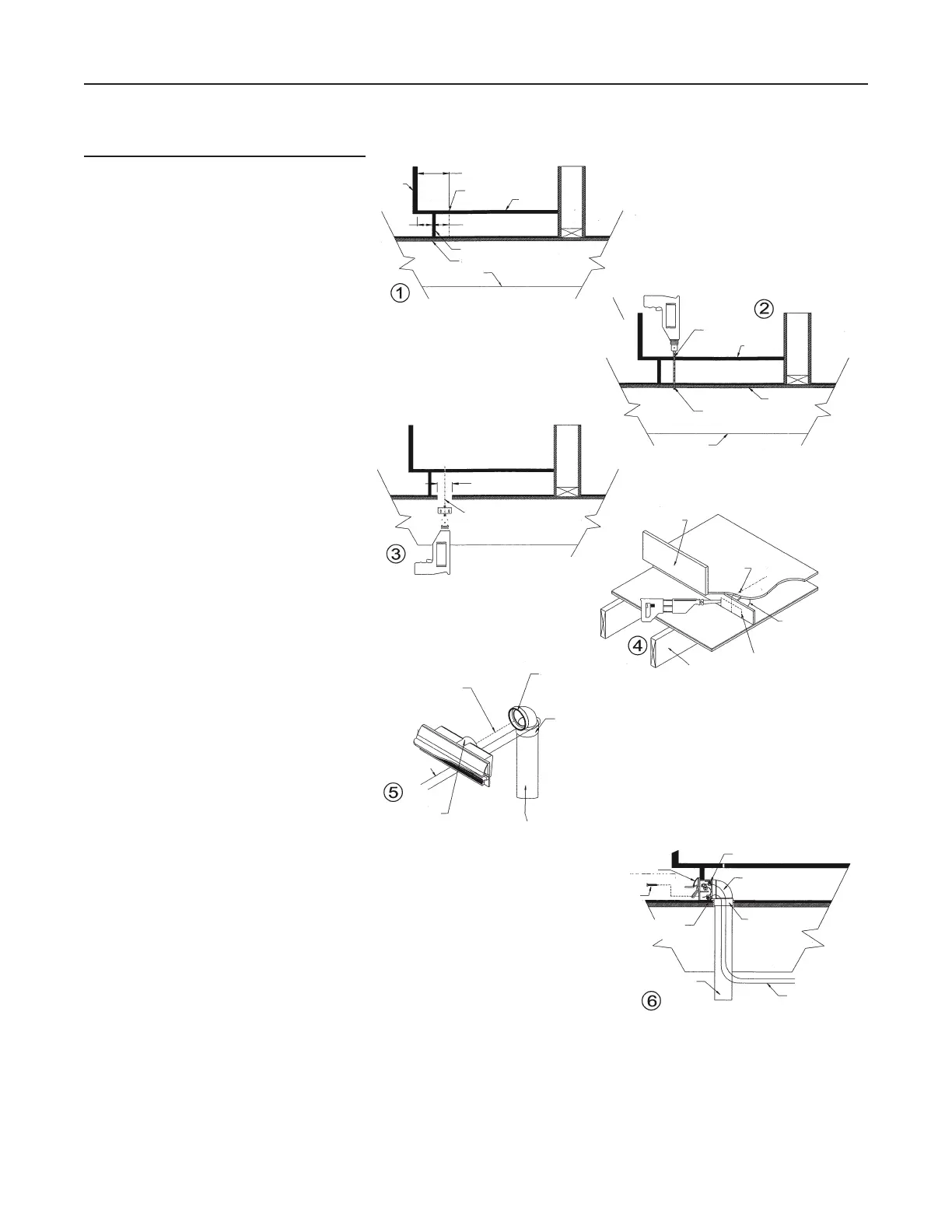

Measure distance (X) between the kickplate
face and the inside edge of the cabinet.
Then add 2¾” to the measured distance.
Refer to figure . Measure out the new
distance (X + 2¾”) from the cabinet door, to
the reference mark.
Drill a small reference hole straight down
through to the basement. Refer to figure .
Locate the reference hole in the basement
and verify that there are no obstructions
within 2” of either side and 4” behind.
Cut a 2½” diameter hole from the basement
up into the base of the counter using the
reference hole as a center. Refer to figure .
Using the reference hole as a center, cut a
2 ³/8” H x 6
5
/8” W rough opening in the
kickplate face. Refer to figure .
Glue the long socket of the tight elbow
(part no. V382XS) onto a section of 2”
central vacuum tube. Make the terminal
connections to the V600W VacuSweep inlet
valve by sliding the low-voltage wire into
wire clips. Turn the power to the vacuum unit
ON to test the connection. After successful
completion of the test, turn power to the
vacuum unit OFF. Wrap a piece of wire/
string around the pipe. Using the wire/string
to temporarily hold the pipe and elbow in
place, insert the V600W VacuSweep inlet
valve into the cabinet base and elbow. DO
NOT GLUE this connection (Designed for
friction fit). Refer to figure .
Remove the wire/string. With the door
in an open position, secure the V600W
VacuSweep inlet valve to the cabinet base
using no. 6 screws. Refer to figure .
Ensure that the spring on the electrical
connector has 1/8” clearance to rough
opening. Continue with remainder of
central vacuum connections.
V600W VACUSWEEP® INLET VALVE INSTALLATION
AD0045A
CABINET
KICKPLATE
CABINET
CABINET
DOOR
REFERENCE
MARK
2¾”X
SUBFLOOR
JOIST
REFERENCE HOLE
SEEN
FROM BASEMENT
JOIST
2½” DIA
REFERENCE
HOLE
GLUE THIS
CONNECTION
(LONG SOCKET/PIPE)
WIRE/STRING
2” CENTRAL VAC PIPE
TERMINAL CONNECTIONS
ELBOW
GLUE THIS
CONNECTION
2” CENTRAL VAC PIPE
TERMINAL WIRES
(X) + (2¾”)
REFERENCE
MARK
SUBFLOOR
DRILL 2½” DIA HOLE
USING
THE REFERENCE HOLE
AS
CENTER
CABINET
DOOR
JOIST
2½” DIA HOLE
CUT A 2/8” H X 6
5
/8” W
ROUGH OPENING USING THE
REFERENCE
HOLE AS CENTER
DO NOT GLUE THIS
CONNECTION
SHORT SOCKET
END
OF ELBOW
VACUSWEEP®
I
NLET VALVE
VACUSWEEP®
I
NLET VALVE
2 X NO. 6
SCREWS
DO NOT GLUE
THIS
CONNECTION
