Broan BUEZ0 - Service Parts; BUEZO Series Parts List; BUEZ1 Series Parts List

SERVICE PARTS

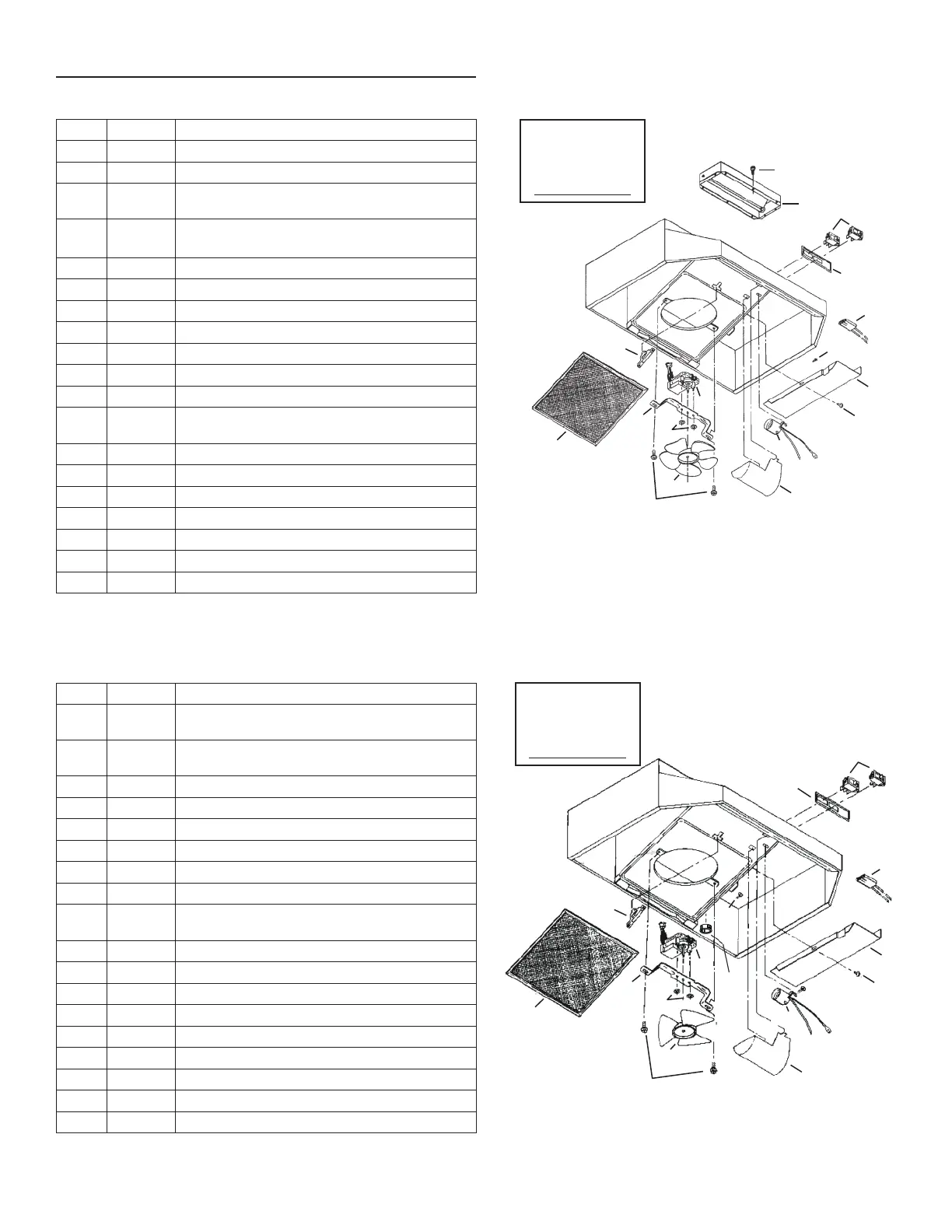

BUEZ0 SERIES 3¼” X 10” DUCTED HOOD
Order service parts by “PART NO.” - NOT by “KEY NO.”
* Standard Hardware. May be purchased locally.
** Not Illustrated.
B
C
D
E
F
G
I
J
K
L
M
O
P
Q
N
R
H
Key No. Part No. Description
1 99150415 No. 8B x 1/4 Hex Head Sheet Metal Screws* (2 Required)
2 97005544 Damper Assembly
3
97016971
97016970
Fan & Light switches – White
Fan & Light switches – Black
4
97010709
99090881
Nameplate - Black
Nameplate - White
5 97005678 Motor Receptacle with Wires
6 99150471 No. 10-32 x 1/2 Green Ground Screw*
7 98006621 Outlet Box Cover
8 99170245 No. 8 x 3/8 Sheet Metal Screw*
9 99270987 Bulb Holder with Wires
10 99110437 Light Lens
11 99020272 Fan Blade
12 97011217
Screw/Nut Kit (Includes 2 - no. 10-16 x .500 screws and
2 - no. 10-16 sheet metal nuts)
13 97006931 Aluminum Filter
14 99260428 No. 6-32 Locking Nuts* (2 Required)
15 98005568 Motor Mounting Bracket
16 97012248 Motor Assembly (Includes Key Nos. 11, 14 & 15)
17 99420472 Filter Retainer
** S97021374 EZ-1 Brackets
** ------------- Light Bulb, 75 watts (not included)
BUEZ1 SERIES
Order service parts by “PART NO.” - NOT by “KEY NO.”
* Standard Hardware. May be purchased locally.
** Not Illustrated.
Key No. Part No. Description
1
97016971
97016970
Fan & Light switches – White
Fan & Light switches – Black
2
97010709
99090882
Nameplate - Black
Nameplate - White
3 97005678 Motor Receptacle with Wires
4 98006621 Outlet Box Cover
5 99170245 No. 8 x 3/8 Sheet Metal Screw*
6 99270987 Bulb Holder with Wires
7 99110437 Light Lens
8 99020287 Fan Blade
9 97011217
Screw/Nut Kit (Includes 2 - no. 10-16 x .500 screws and
2 - no. 10-16 sheet metal nuts)
10 97007696 Ductfree Filter
11 98005568 Motor Mounting Bracket
12 99260428 No. 6-32 Locking Nuts* (2 Required)
13 93400038 Grommet
14 97011220 Motor Assembly (Includes Key Nos. 8, 11 & 12)
15 99420472 Filter Retainer
16 99150471 No. 10-32 x 1/2 Green Ground Screw*
** S97021374 EZ-1 Brackets
** ------------- Light Bulb, 75 watts (not included)
B
C
D
F
E
G
H
I
J
M
L
O
K
P
N
Q
