3.8 Using the 3 screws removed from 3.5, install the metal shutoff plate
on top of the hood.
3.7 From the top of the hood, slide out the plastic air deviator and
discard.
3.6 Press the metal shutoff plate on a flat surface to completely
flatten bent flange.
3.5 Remove the metal shutoff plate from the back of the hood, by
removing the 3 screws. Set aside scews.
- 6 -

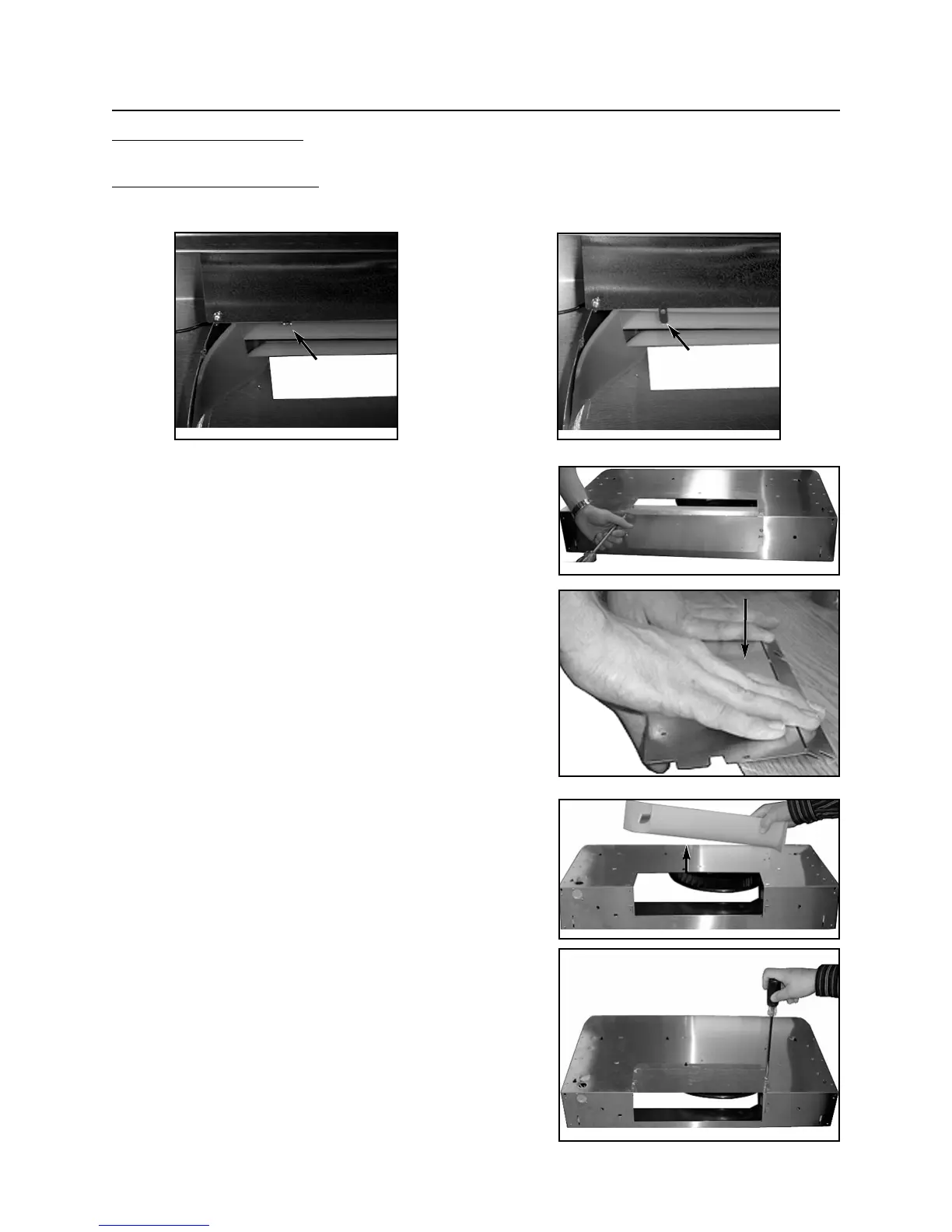

3. PREPARE THE HOOD (CONT’D)
FOR VERTICAL DISCHARGE ONLY:
The hood is set up at the factory for vertical discharge. Go to step 4 on page 7. Start on step 4.4.
FOR HORIZONTAL DISCHARGE ONLY:
3.4 From inside the hood, unfold the small retaining tab (A) (located on the edge of the blower opening) on the air
diffuser edge. See pictures below.
HD0109
Folded tab
A
HD0108
A
Unfolded tab
HO0031
HD0119
HO0032
HO0036
