Broan LP110 - Step 4: Connect Wires

LP80 & LP110
n
Installation Guide
Page 5
Installation
4

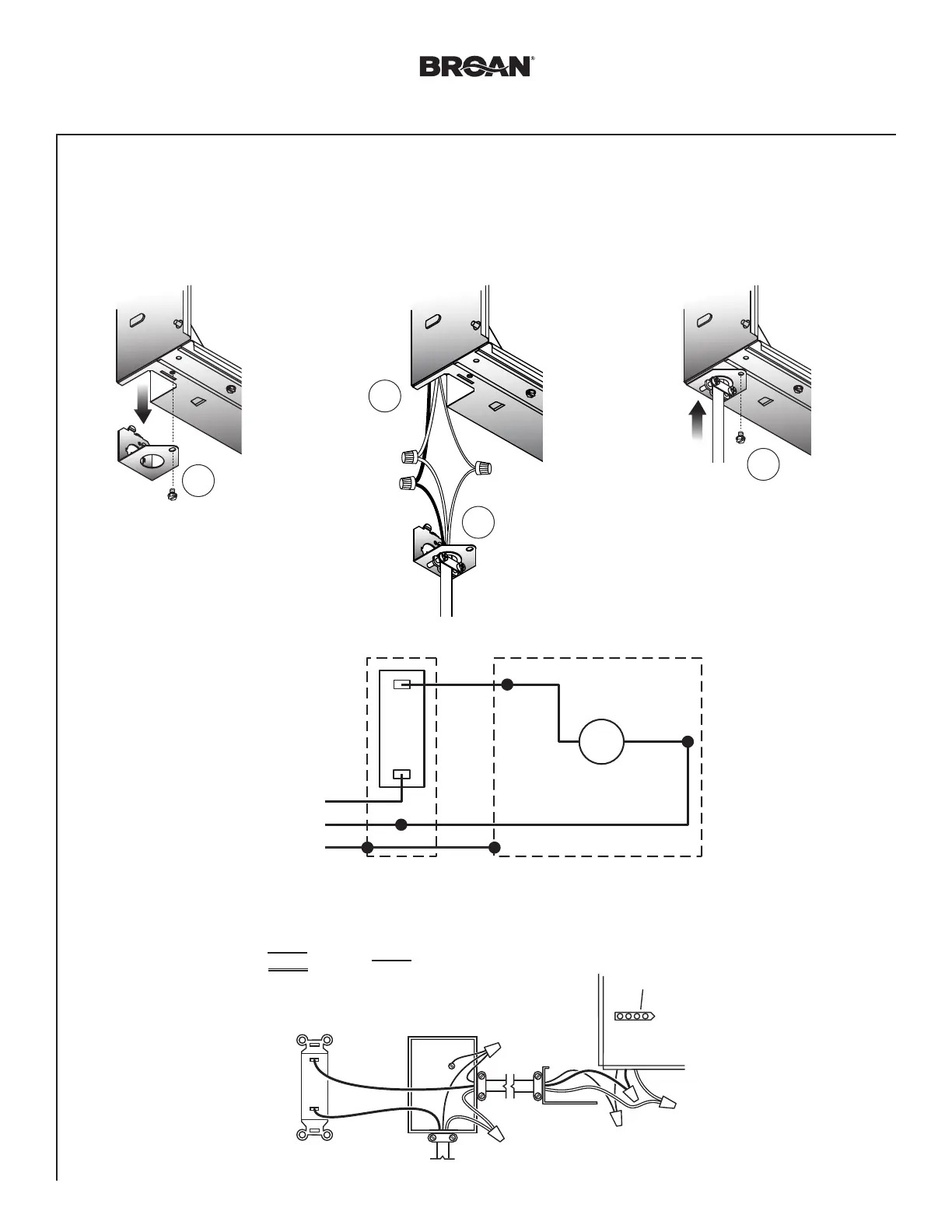

Connect Wires
• Run 120VAC electrical wiring to the installation location.
• Use proper UL-approved connectors to secure wiring to the Knockout Plate.
• Connect wires as shown in wiring diagram.
Attach cable
clamp to Knockout
Plate. Knockout
Plate may be
oriented as
desired.
Connect
wires
120 VAC
LINE IN
GRD
WHT
BLK
GRD
WHT
BLK BLK
WHT
UNITSWITCH BOX
ON/OFF
SWITCH
M
ON/OFF
SWITCH
(purchase separately)
KNOCKOUT
PLATE
RECEPTACLE
120 VAC LINE IN
SWITCH BOX
BLACK
WHITE
GROUND (green or bare)
3
2
1
4
