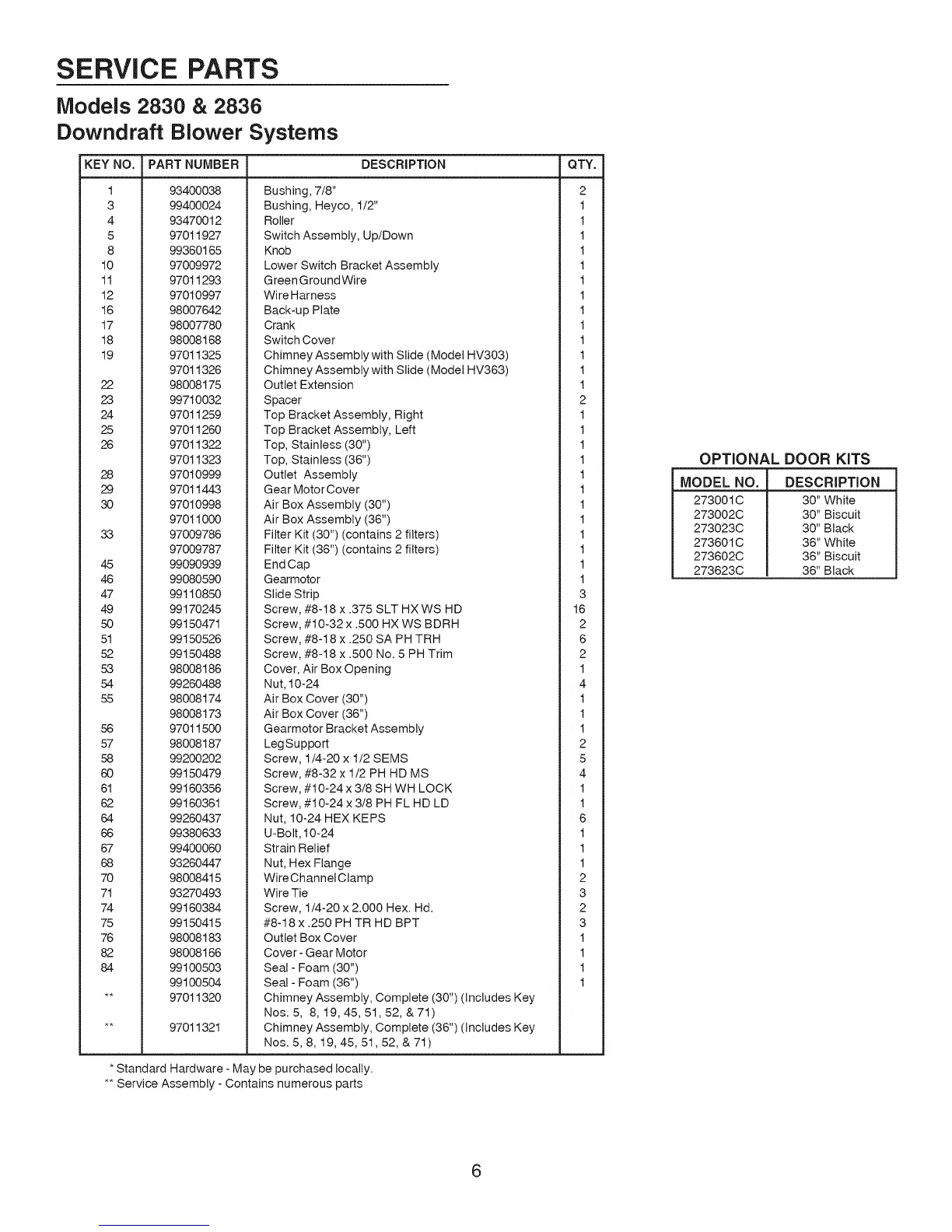

SERVICE PARTS
Models 2830 & 2836
Downdraft Blower Systems
KEY NO. PART NUMBER DESCRiPTiON QTY.
1 93400038
3 99400024
4 93470012
5 97011927
8 99360165
10 97009972
11 97011293
12 97010997
16 98007642
17 98007780
18 98008168
19 97011325
97011326
22 98008175
23 99710032
24 97011259
25 97011260
26 97011322
97011323
28 97010999
29 97011443
30 97010998
97011000
33 97009786
97009787
45 99090939
46 99080590
47 99110850
49 99170245
50 99150471
51 99150526
52 99150488
53 98008186
54 99260488
55 98008174
98008173
56 97011500
57 98008187
56 99200202
60 99150479
61 99160356
62 99160361
64 99260437
66 99380633
67 99400060
68 93260447
70 98008415
71 93270493
74 99160384
75 99150415
76 98008183
82 98008166
64 99100503
99100504
** 97011320
** 97011321
Bushing, 7/8" 2
Bushing, Heyco, 1/2" 1
Roller 1
Switch Assembly, Up/Down 1
Knob 1
Lower Switch Bracket Assembly 1
GreenGroundWire 1
Wire Harness 1
Back-up Plate 1
Crank 1
Switch Cover 1
Chimney Assembly with Slide (Model HV303) 1
Chimney Assembly with Slide (Model HV363) 1
Outlet Extension 1
Spacer 2
Top Bracket Assembly, Right 1
Top Bracket Assembly, Left 1
Top, Stainless (30") 1
Top, Stainless (36") 1
Outlet Assembly 1
Gear Motor Cover 1
Air Box Assembly (30") 1
Air Box Assembly (36") 1
Filter Kit (30") (contains 2 filters) 1
Filter Kit (36") (contains 2 filters) 1
End Cap 1
Gearmotor 1
Slide Strip 3
Screw, #8-18 x .375 SLT HX WS HD 16
Screw, #10-32 x .500 HX WS BDRH 2
Screw, #8-t 8 x .250 SA PH TRH 6
Screw, #8-18 x .500 No. 5 PH Trim 2
Cover, Air Box Opening 1
Nut, 10-24 4
Air Box Cover (30") 1
Air Box Cover (36") 1
Gearmotor Bracket Assembly 1
LegSupport 2
Screw, 1/4-20 x 1/2 SEMS 5
Screw, #8-32 x 1/2 PH HD MS 4
Screw, #10-24 x 3/8 SH WH LOCK 1
Screw, #10-24 x 3/8 PH FL HD LD 1
Nut, 10-24 HEX KEPS 6
U-Bolt, 10-24 1
Strain Relief 1
Nut, Hex Flange 1
Wire Channel Clamp 2
Wire Tie 3
Screw, 1/4-20 x 2.000 Hex. Hd. 2
#8-18x.250 PHTR HD BPT 3
Outlet Box Cover 1
Cover- Gear Motor 1
Seal - Foam (30") 1
Seal - Foam (36") 1
Chimney Assembly, Complete (30") (Includes Key
Nos. 5, 8,19,45,51,52,&71)
Chimney Assembly, Complete (36") (Includes Key
Nos. 5, 8, 19, 45, 51,52, & 71 )
* Standard Hardware - May be purchased locally.
** Service Assembly - Contains numerous parts
OPTIONAL DOOR KITS
MODEL NO.
273001C
273002C
273023C
273601C
273602C
273623C
DESCRIPTION
30" White
30" Biscuit
30" Black
36" White
36" Biscuit
36" Black
6
