2
4. Set each button to ring a different
tune for each door. Change door set
jumpers on the button.
5. Some models have volume controls.
Set the chime volume by gently turn-
ing the volume control with a small
screwdriver.
6. Some models have a slide switch
that changes the tone of your chime.
Choose the sound you like best.
7. Mount the button by using the two
holes in the back of the case. Mount
so the long hook is on the bottom. If
mounting to a metallic or concrete
surface, use 1/8” to 1/4” wood
spacers between the back of the
button and the surface to in-
crease range. Snap the button on
the back case.
OPERATION
Press the door chime button to verify
that the button and chime work prop-
erly. When the button is pressed, the
chime should sound. If it doesn’t, check
that the frequency codes are set the
same and that the alkaline batteries are
fresh.
BUTTON BATTERY
REPLACEMENT
Open button case (see step #2).
Replace with one 12 volt alkaline type
A23 (Broan Model RCA23) or MN21
battery. Close button case.

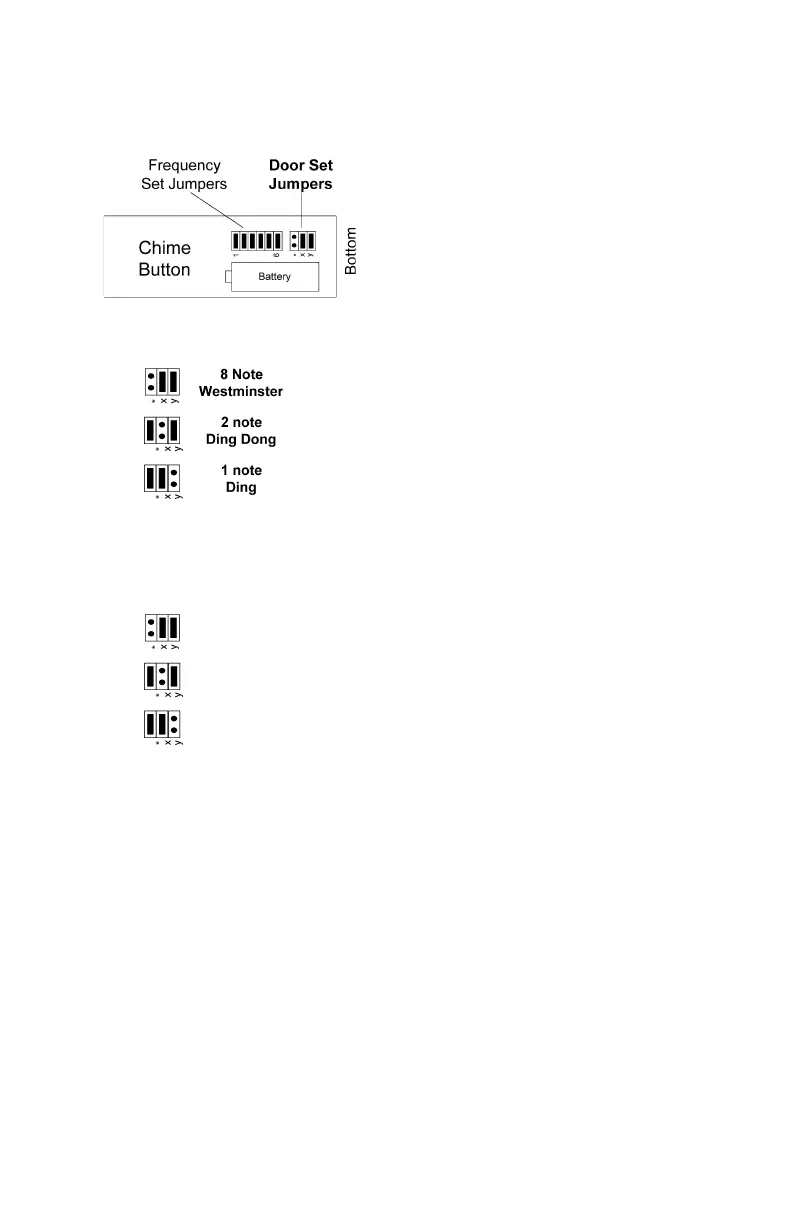

Jumpers on pins * and x for Westminster chime.
Jumpers on pins * and y for 2-note chime.
Door Set Jumpers – RC516
Door Set Jumpers – RC520
2 note
Ding Dong
3 note
Ding Dong Dong
1 note
Ding
