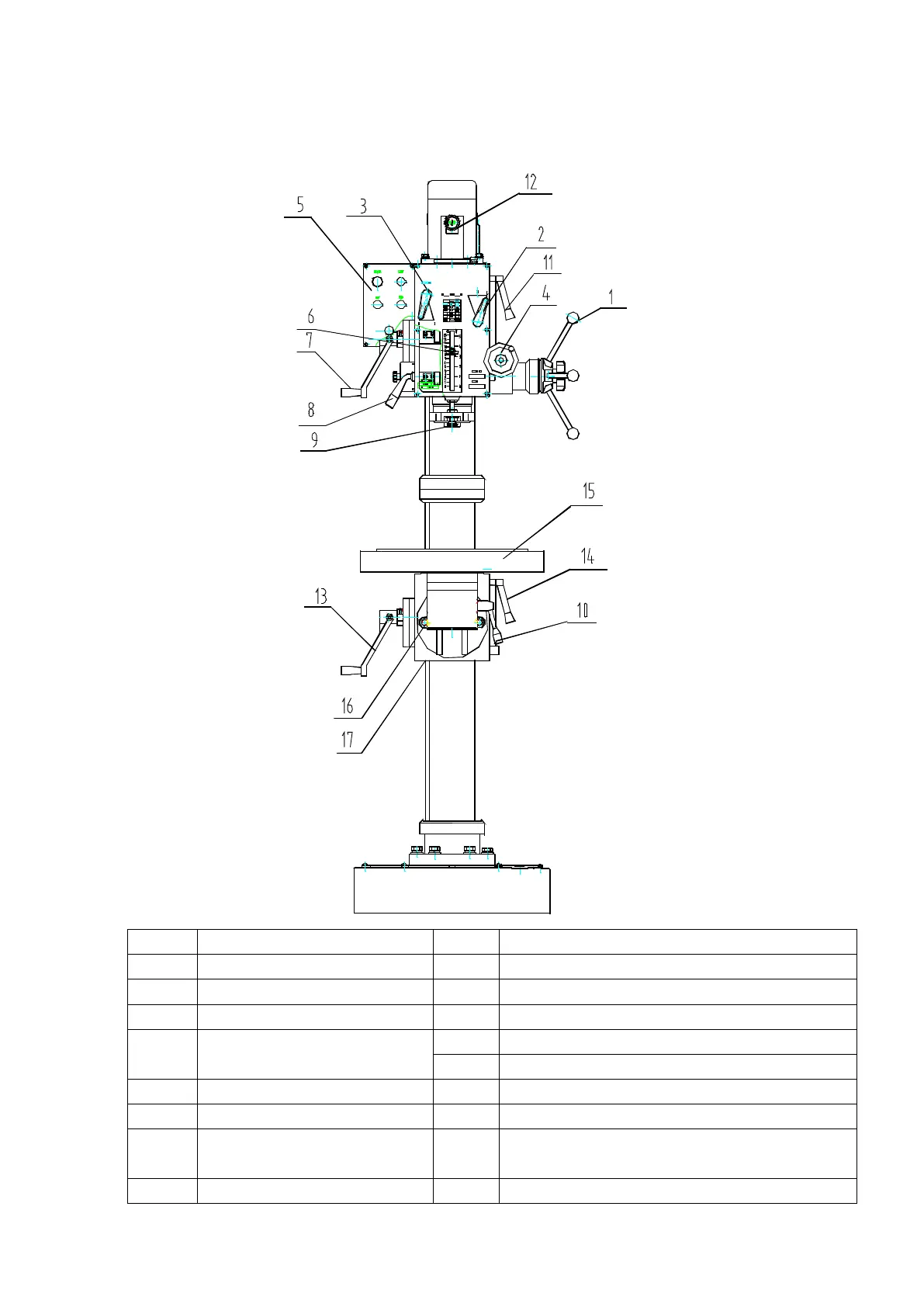

8. Main Functions and Operation of the Machine
No Name No Name
1 Feed handle of spindle 9 Depth setting nut
2 Speed change handle 10 Lock handle of working-table
3 Speed change handle 11 Lock handle of headstock
4
Micro feed handle 12 Tool retracting handle
13 Up and down handle of supporting block
5 Control panel of electric 14 Lock handle of supporting block
6 Block of Scale orientation 15 Working table
7
Up and down handle of
Headstock
16
Lock nut
8 Lock handle of spindle 17 Supporting table
BDF 32-1
