BROOD Nitro V2PX Operations Manual V2.2 Eng
4
3.2 Pouring
1. Assemble the tap handle.
2. Make sure the air-compressor switch at the bottom of the machine is switched off. If the red
light inside the switch is off, then the air compressor is off.
3. Plug in the power cord.
4. Connect the intake tube to the Nitro V2PX by pushing the male elbow coupler into the female
coupler at the bottom of the machine. If you need to release it then push the metal spring and it will
loosen. Make sure that the pre-filter is already attached to the tube. It comes attached upon delivery of
the Nitro Coffee machine. Make sure all tubes are pushed in very firmly to avoid air bubbles entering
the tube.

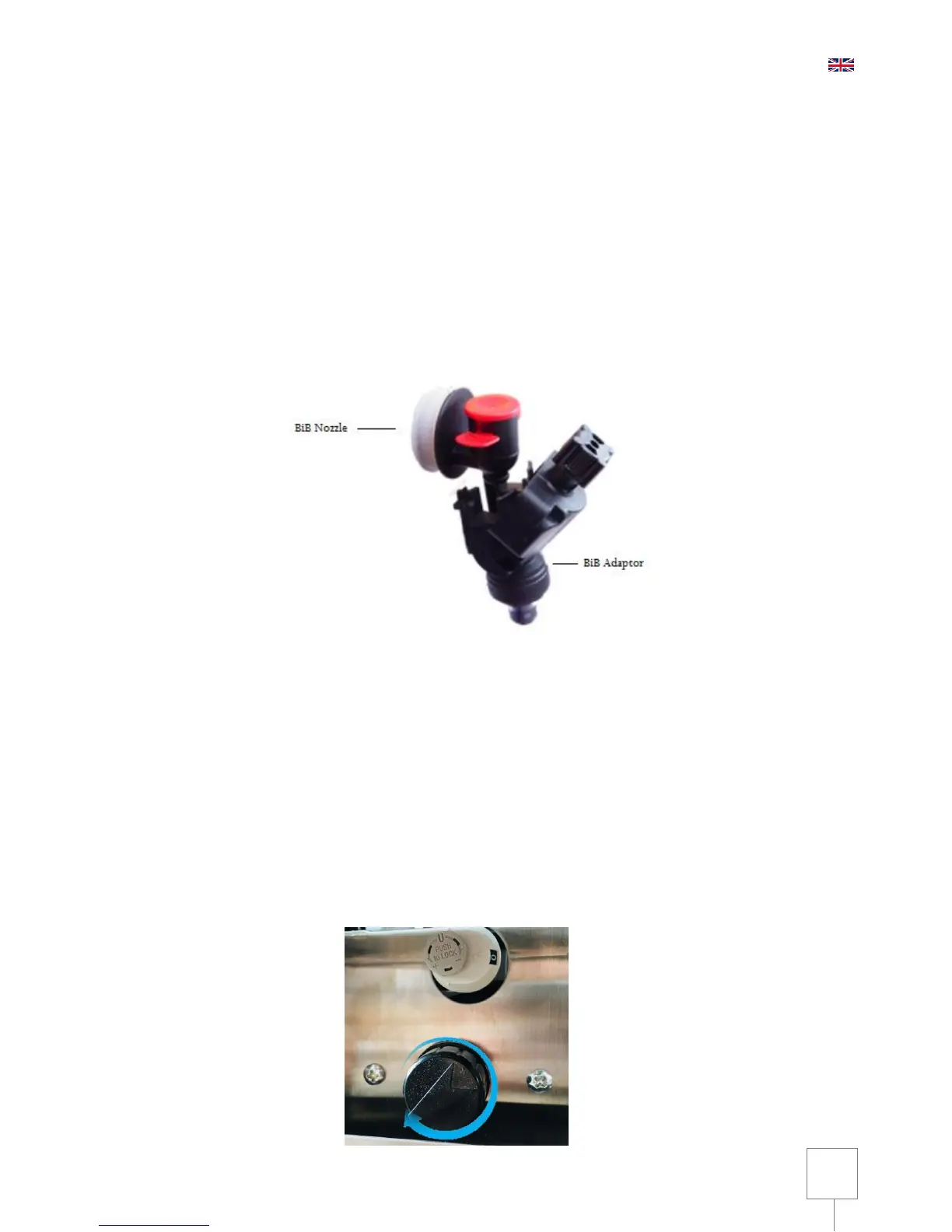

5. Connect the BiB Adaptor to your BiB bag of coffee or tea. Lift the collet of your BiB Adaptor
and place it on comfortably on the nozzle of the BiB bag. Note that the nozzle must be facing the
direction of the tube as that will be the flow of the liquid. Turn the screw at the far side of the BiB
Adaptor so that it pierces the nozzle and is securely in place.
a. The BiB Adaptor and nozzle are from Smurfit Kappa. You can use your own BiB
bags and adaptors if you choose. Simply attach your desired BiB Adaptor to the intake
tube and use a corresponding BiB bag with the appropriate nozzle
b. If you do not wish to use a BiB, simply remove the BiB adaptor from the end of
the intake tube. Drop the open end of the tube in any container. The Nitro V2PX will pull
from any pressurized or non-pressurized container.
6. Turn the air-compressor switch on.
7. Place your cup beneath the stout and pull the handle outward by 90°
8. Return the handle to the start position when you have completed the pour.
3.3 Temperature
The target dispense temperature is set at 2°C (+/- 1°C). The temperature control knob is in the
control panel at the side of the machine. To switch the cooling system off turn the knob to OFF.
Make sure there is a click when turning it off. To achieve the coldest temperature, turn the knob
to MAX.
