Production induction
Function

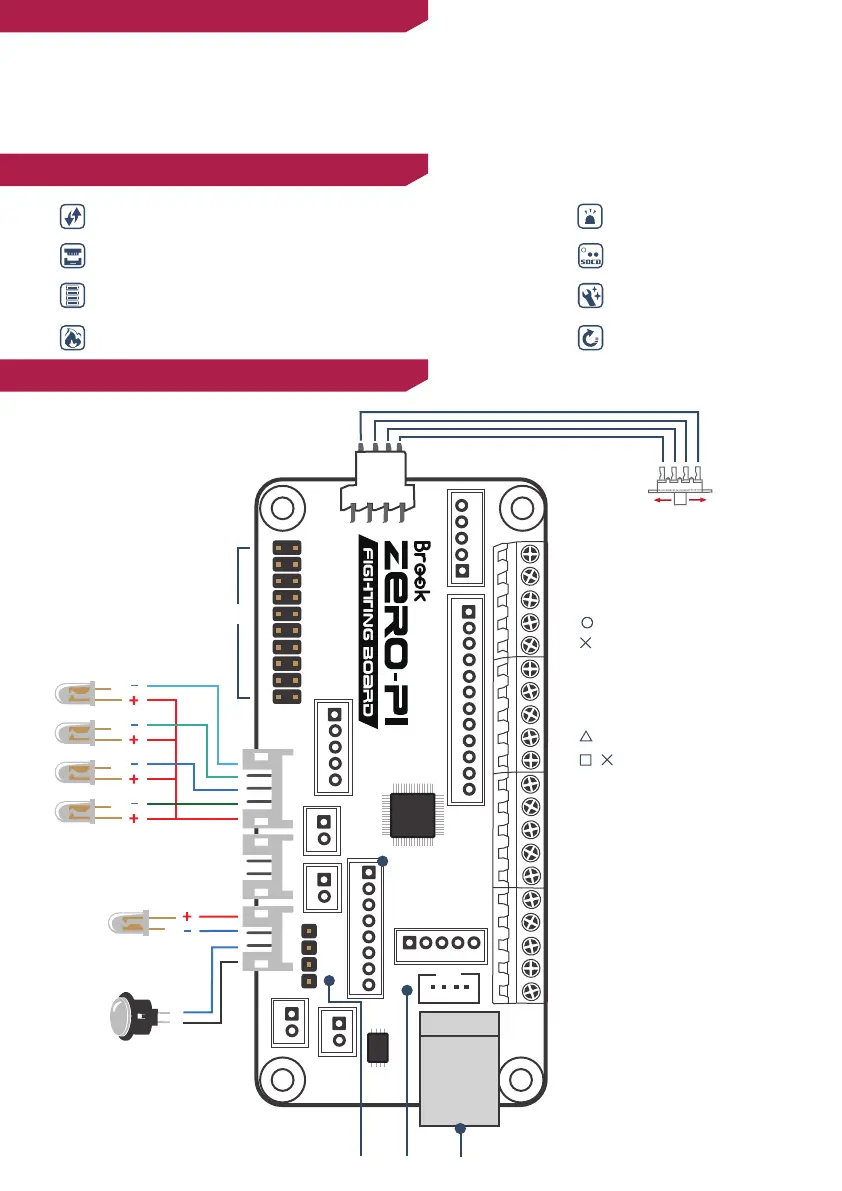

How to connect
The ZERO-Pi fighting board supports to be used wired on NS/PS3/PS2/PS/
PC(X-Input)/Retro Gaming System, it also supports LED, and turbo function.
Upgradable Firmware
Turbo Function
Effortless installation
Support Player LEDs
Built-in SOCD cleaner
Different kinds connectors for USB
(USB Type-B/5-pin header connector/4-pin header connector/4-pin)
Full-Compatible with BROOK Fighting Cable
2
Support NS/PS3/PS2/PS/
PC(X-Input)/Retro Gaming System
(Empty)
L3
R3
GND
J15:
For PS / PS2
J7
Turbo LED
Turbo Key
LS MODE
RS MODE
DP MODE
J1-2
J1-3
J6
J14
J5
J11
J8
J3
J2
J13
J1-1 J1
J4
GND
GND
GND
GND
START / +
SELECT / BACK
PS / XBOX / HOME
4K / L2 /LT / ZL
3K / R2 /RT / ZR
4P / L1 / LB / L
3P / R1 / RB /R
2P / / Y / X
1P / / / Y
2K / / B / A
RIGHT
LEFT
UP
DOWN
VDD_5V
1K / / A / B
