Brose Display Allround | Product Description 25 | EN
3.2. Explanation of Illustrations
(b)
(c)
(d)
(e)
(a)
(f)

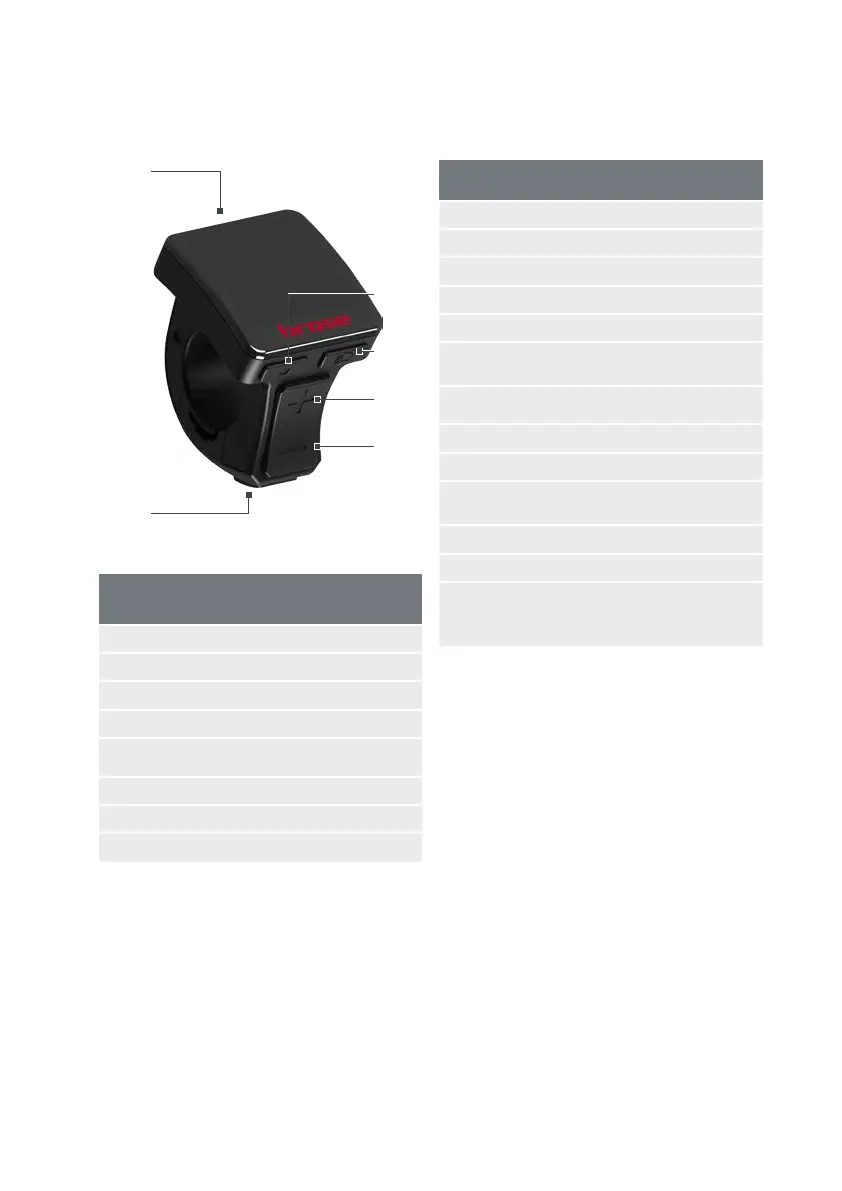

Fig. 1: Key Assignment
Allround display and control unit
(Fig. B/Fig. 1)
(a) «On/Off» key
(b) «Menu» key / select key
(c) «Light» key / menu back one level
(d) «Plus» assistance level / scroll menu up
(e) «Minus» assistance level / scroll menu
down
(f) «Walk Assist» key
(g) Control unit grub screw
(h) Plugs
Tab. 01: Button Description
The numbering of the described components
also refers to the illustrations on the graphics
pages at the beginning of the manual. All
illustrations are schematic and may differ in
details from the actual features of your e-bike.
3.3. Technical Data
Allround display and control unit
Brose material no. E41230
L × W × H 44 × 37 × 50 mm
Weight, approx. 50 g
Handlebar (d) 22,2 mm
Electrical data 12V / max. 3W
Display 1,5 Zoll TFT colour display
(240 × 240 px)
Operating and storage
temperature
-10°C bis 60°C
Operating frequence 2400-2480 MHz
IP X7 (HMI) water-tight
Certificates : CE, ROHS, Reach, Bluetooth
(EU, Switzerland, USA, Canada, Japan)
FCC ID O4GAR
IC 7666A-AR
BLUETOOTH low energy® 5.0 (optional ANT+)
Frequency 2400–2480 MHz
Transmission power < 10 mW
Tab. 02: Technical Data
3.4. Declaration of Conformity
Brose Antriebstechnik GmbH & Co. KG hereby
declares that the «Display Allround» wireless
system complies with Directive 2014/53/
EU. The full text of the EU Declaration of
Conformity is available at the following Internet
address(Service/Servicetool):
www.brose-ebike.com
