Assembly - Burner Installation
The burner will come pre-fitted, however please ensure all components are present and
fitted as per the information below prior to commencing installation. You will need a pozi
drive screwdriver when fitting/replacing these items.
1) Remove the stove body from its packaging and stand it in position.
2) To open the door, remove the grub screw from the side of the handle then slide the
handle off the hex nut. Un-screw the hex nut to allow the door to open.

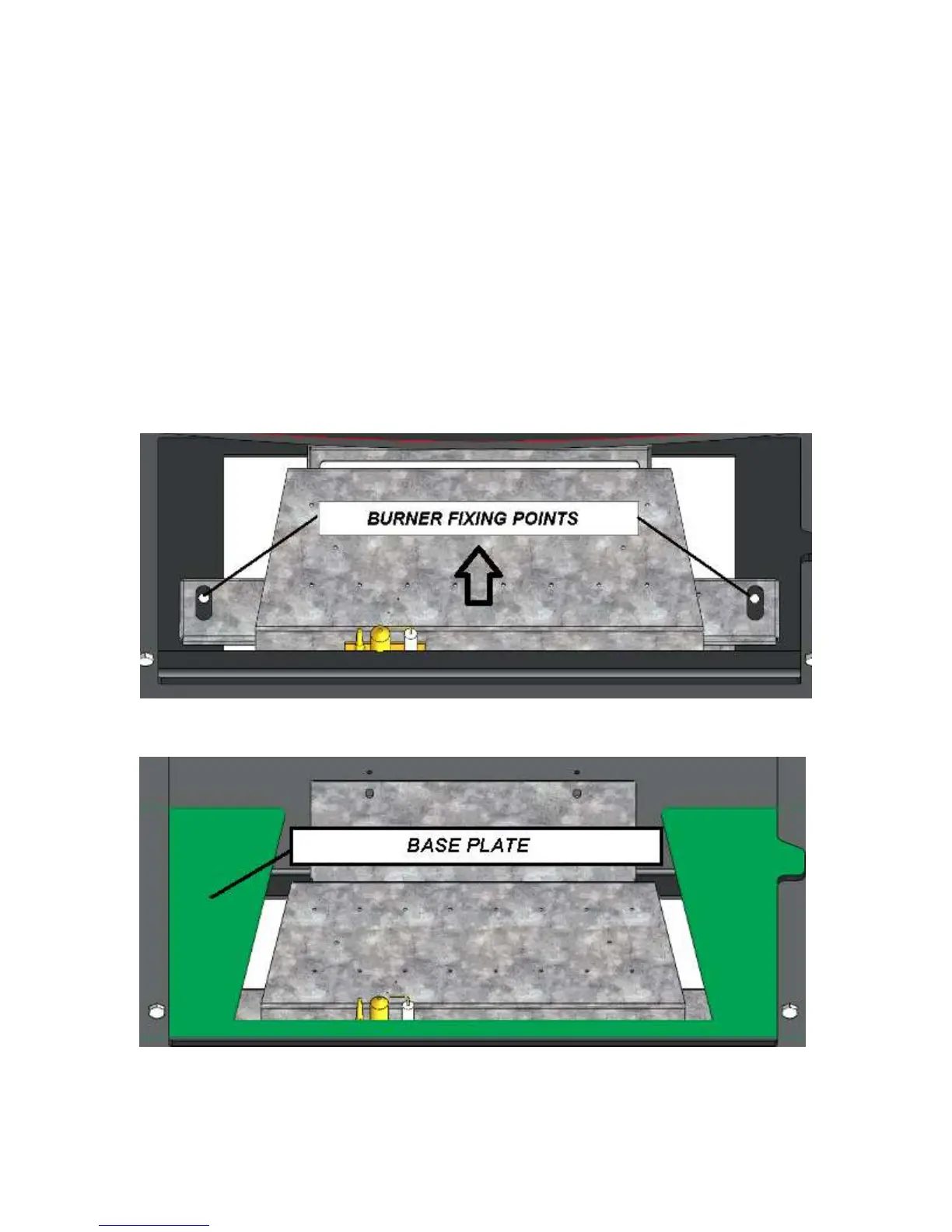

3) Insert the burner end with the control knob first followed by the other end of the
burner locating the burner bracket onto the side fixing points.
4) Fasten the burner into position using two (2) M6x40 bolts and washers provided, the
burner needs to be pushed back to the rear of the stove.
5) The stove base plate can now be fitted. This plate rests on the base on the stove
6) Next fit the mica boards as detailed in the next section.
