Assembly – Decorative Log Retainer
Using the 2 off M5 C/Sunk Bolts provided, locate the decorative trim behind the stove
opening as shown and secure in position.
Assembly - Fitting TTB sensor
With the burner installed, thread the wires from the interrupter to the TTB device
(mounted on the rear panel of the stove). These wires can be installed either way round
on the terminals.

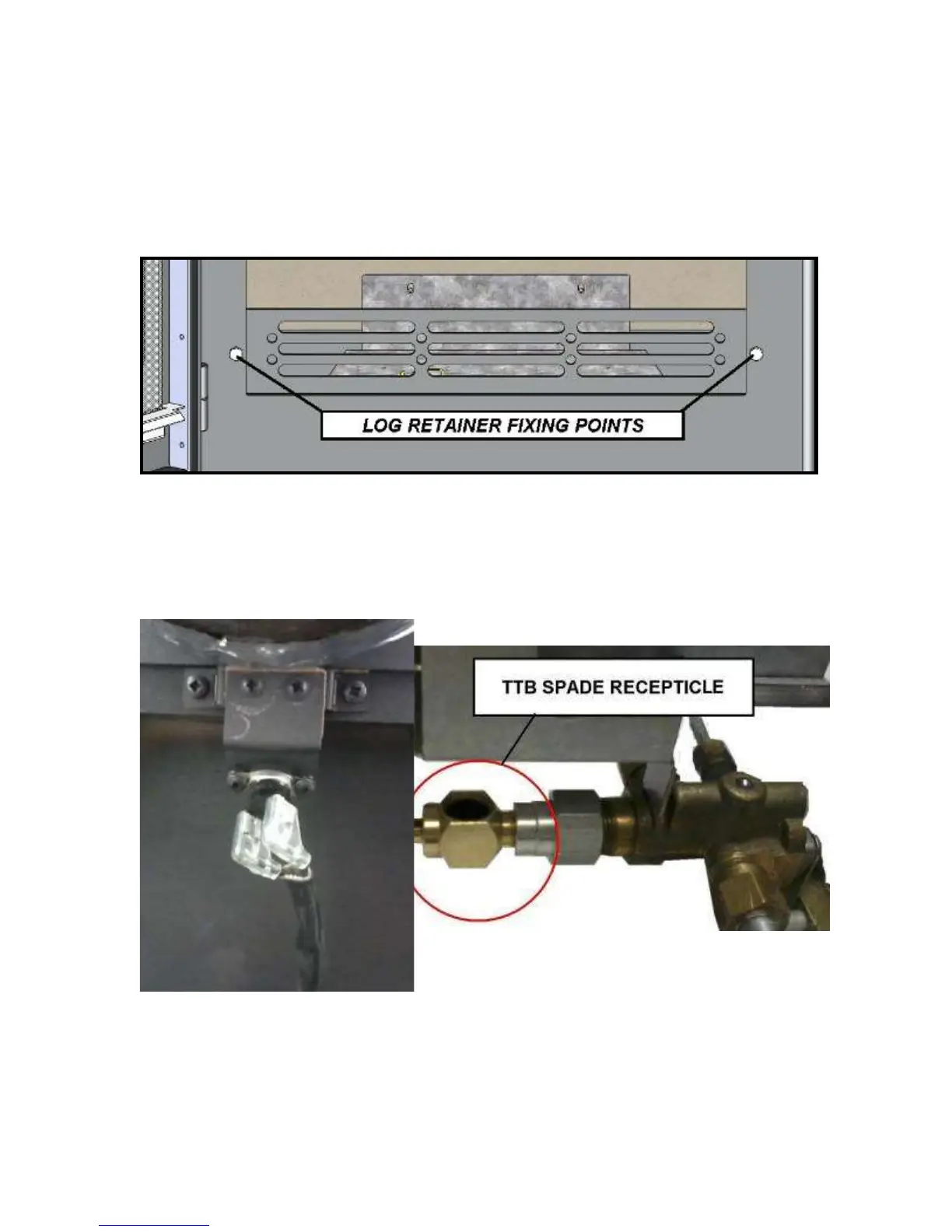

Rear View of TTB Location
