Assembly – Mica Boards

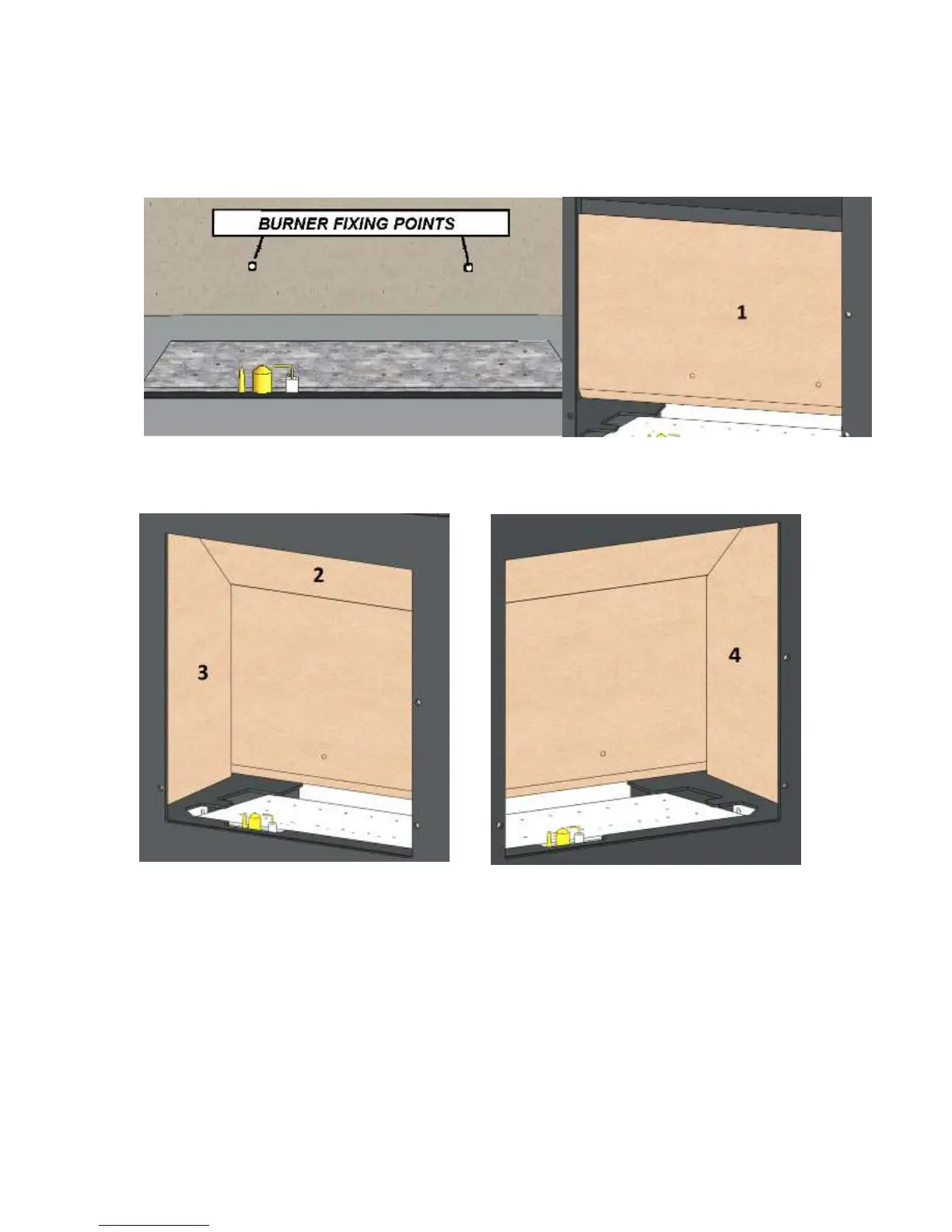

First fit the rear mica board in front of the burner bracket as shown above and secure
through the burner fixing points using the 2 x No.6 x 25 self -tapping screws provided.
Rest the top mica board (2) onto the rear.
Whilst holding the top mica in position
insert the LHS side board (3)
Finally fit the remaining side mica board (4)
and allow the top board to rest down onto it
(the top board should now be supported by
both the side and rear mica boards).
