Brother 3034D - Chapter 1: Names of Parts and Functions; Machine Components Identification

4
1
2
3
4
5
6
7
8
9
0
F
A
B
C
D
E
H
I
J
K
M
N
O
L
P
Q
R
G
S

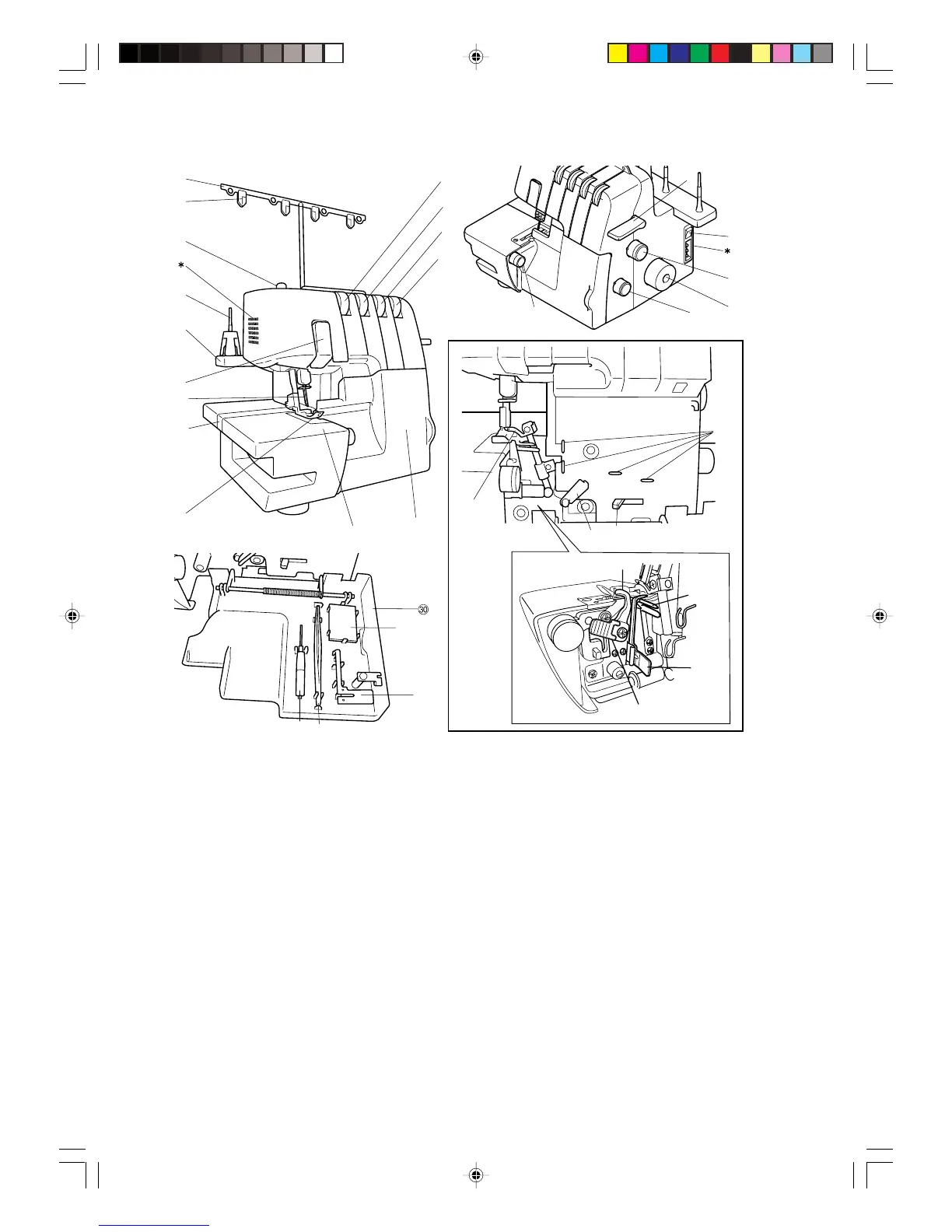

CHAPTER 1
NAMES OF PARTS AND THEIR FUNCTIONS
I Hand wheel
J Differential feed ratio adjustment dial
K Stitch width dial
Inside of the front cover
L Thread guide
M Lower looper threading lever
N Thread take up for loopers
O Upper looper
P Upper knife
Q Lower looper
R Stitch finger
S Knife lever
t Front cover compartment
You can hold the included accessories and the removed
stitch finger in this front cover compartment.
<A>: Needle set, <B>: Stitch finger (when removed, see
CHAPTER 5 "Narrow overlock/ Rolled hemming stitch"),
<C>: Tweezers, <D>: Hexagonal driver
* Air openings (on the side and back)
1 Thread tree
2 Thread plate
3 Presser foot pressure adjustment screw
4 Spool pin
5 Spool support
6 Thread take-up cover
7 Needles
8 Bed extension
9 Presser foot
0 Material plate cover
A Left needle thread tension dial
B Right needle thread tension dial
C Upper looper thread tension dial
D Lower looper thread tension dial
E Front cover
F Presser foot lifting lever
G Main power and light switch
H Stitch length adjustment dial
<A>
<B>
<C>
<D>
