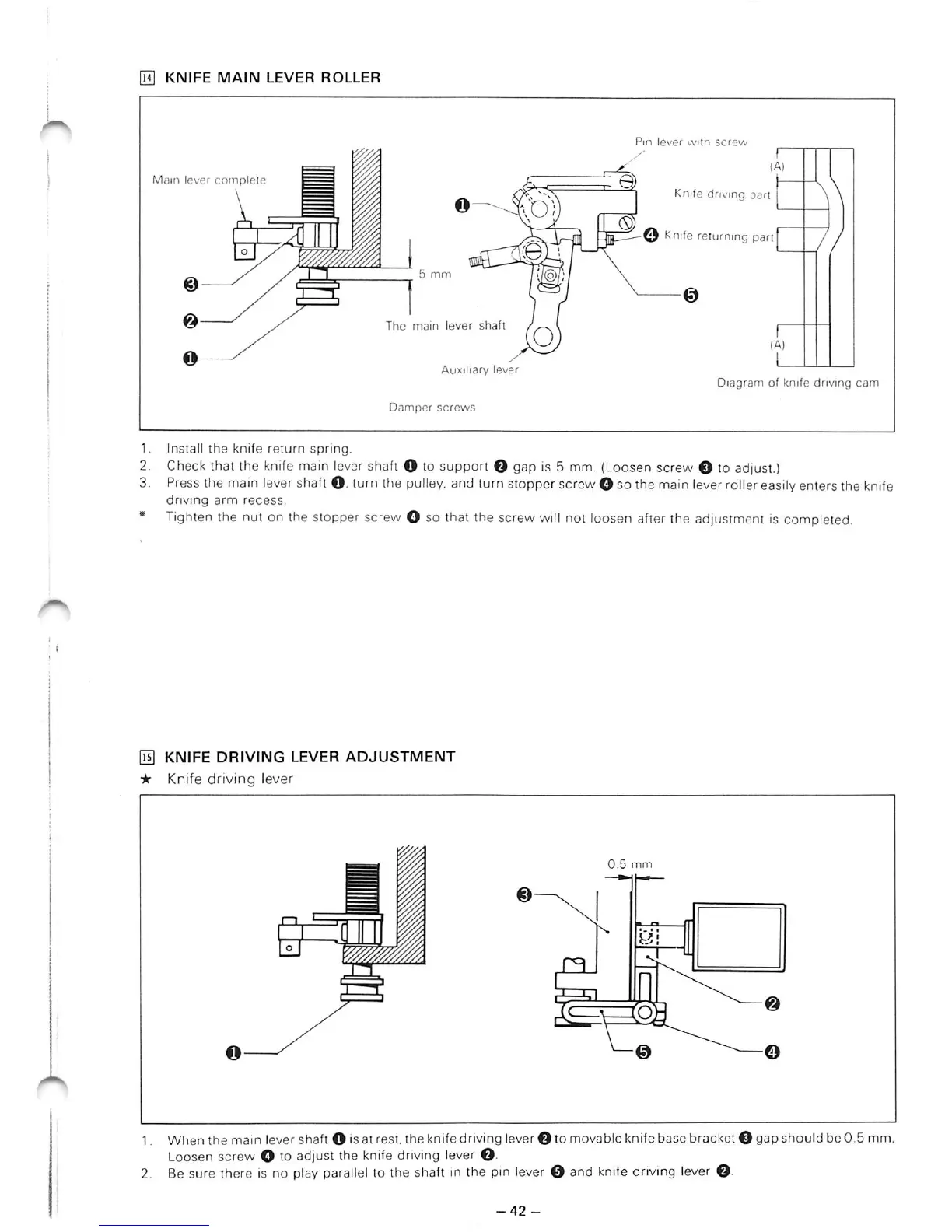

[m]
kimife
main
lever
roller
Knife driving Dsri
O
Knife
returning
partj
Diagram
of km
1. Install
the
knife
return
Spring.
2.
Check
that the
knife
main
lever
shaft O to support O gap is 5
mm.
(Loosen
screw O to
adjust.)
3.
Press
the
main
lever
shaftO- turnthe
pulley,
and turnstopperscrewO so the
main
lever
roller
easily
entersthe
knife
driving
arm
recess.
*
Tighten
the nut on the stopper screw O so that the screw
will
not loosen after the adjustment is completed.
M KNIFE DRIVING LEVER
ADJUSTMENT
★
Knife
driving
lever
0.5
mm
When the mam lever shaft O
isat
rest, the knifedriving lever O to movable knife
base
bracket O
gap
should be
0.5
mm.
Loosen screw O to adjust the
knife
driving
lever
O'
Besure there is no play parallel to the shaft in the pin lever 0 and
knife
driving lever O.
-42
-
