(oPTIONs)

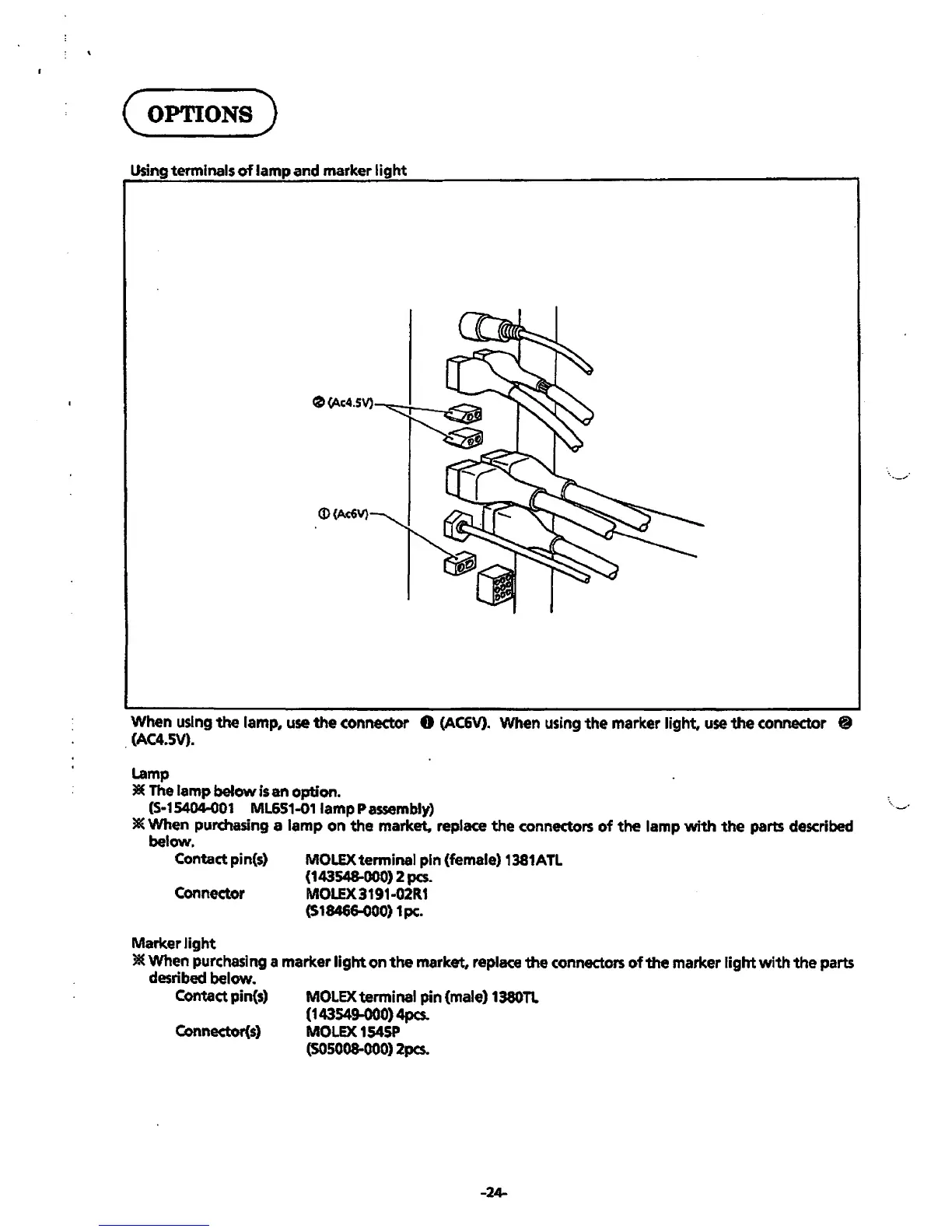

Using terminals of lamp and marker light
(j)(Ac6V)
When using the lamp, use the connector 0 (AC&V). When using the marker light, use the connector @
(AC4.5V).
Lamp
38E The lamp below is an option.
(5·1 ~01 ML651-01 lamp P assembly)
*When purchasing a lamp on the market, replace the connectors of the lamp with the parts described
below.
Contact pi n(s)
Connector
Marker light
MOLEX terminal pin (female) 1381ATL
(143548-000) 2 pes.
MOLEX3191·02R1
(518466-000) 1pc.
3!E When purchasing a marker light on the market, replace the connectors of the marker light with the parts
desribed below.
Contact pin(s)
Connector(s)
MOLEXterminal pin{male) 1380n
(143549-000) 4pcs.
MOLEX 154SP
(505008-000) 2pcs.
-24-
