Brother BAS-311A Service Manual

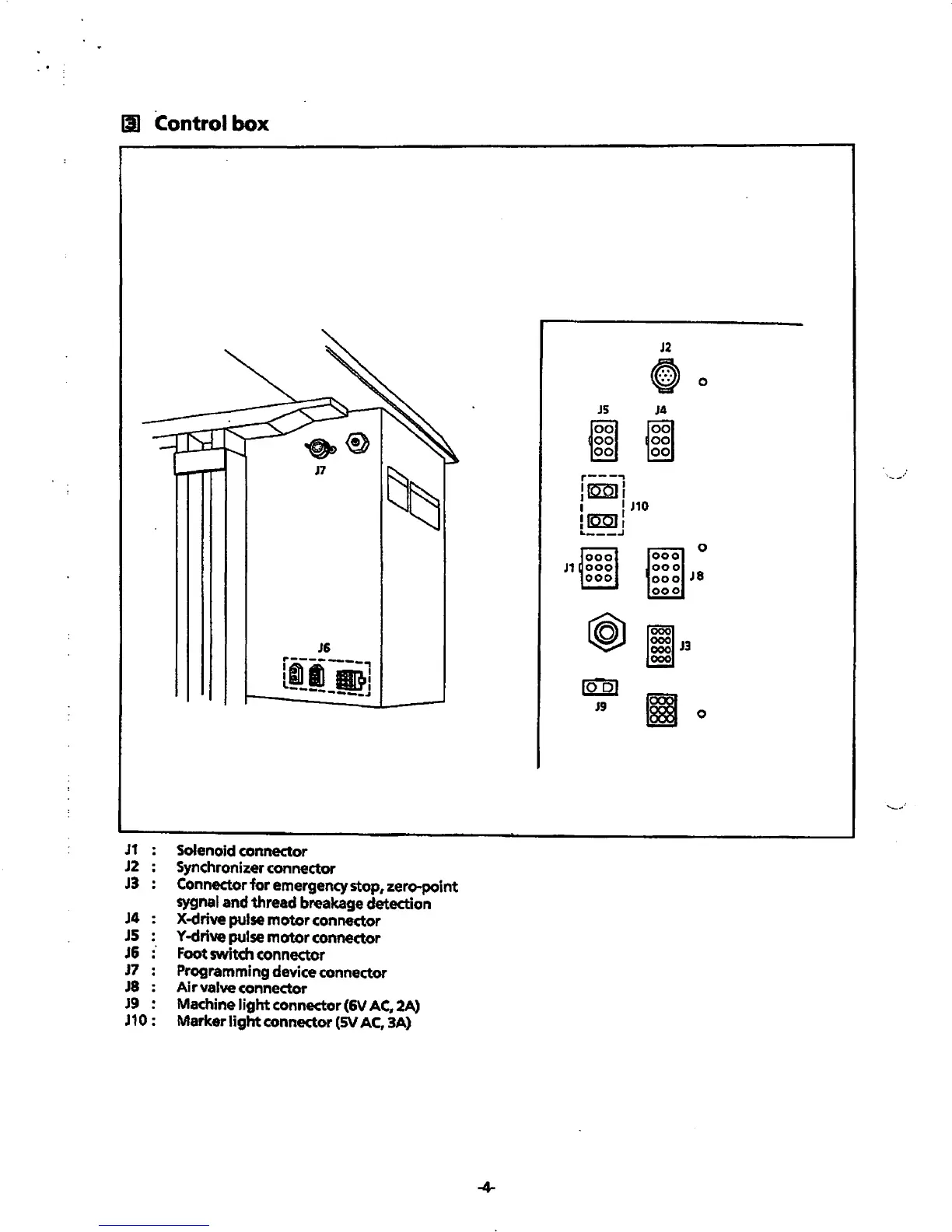

Ill Control box
J6
fi~---~
"---- •.
_____ ,
J1 Solenoid connector
J2 Synchronizer connector
J3 Connector for emergency stop, zero-point
sygnal and thread breakage detection
J4 X-drive pulse motor connector
JS Y-drive pulse motor connector
J& Foot switch connector
J7 Programming device connector
J8 Air valve connector
J9 Machine light connector (6V AC. 2A)
J 1 0 : Marker light connector (SV AC, 3A)
J1
J2
~0
JS J4
~~
r---.,
lra:QJI
: 1 s1o
~Kmlr
'"---.J
lool
J9
0
J8
