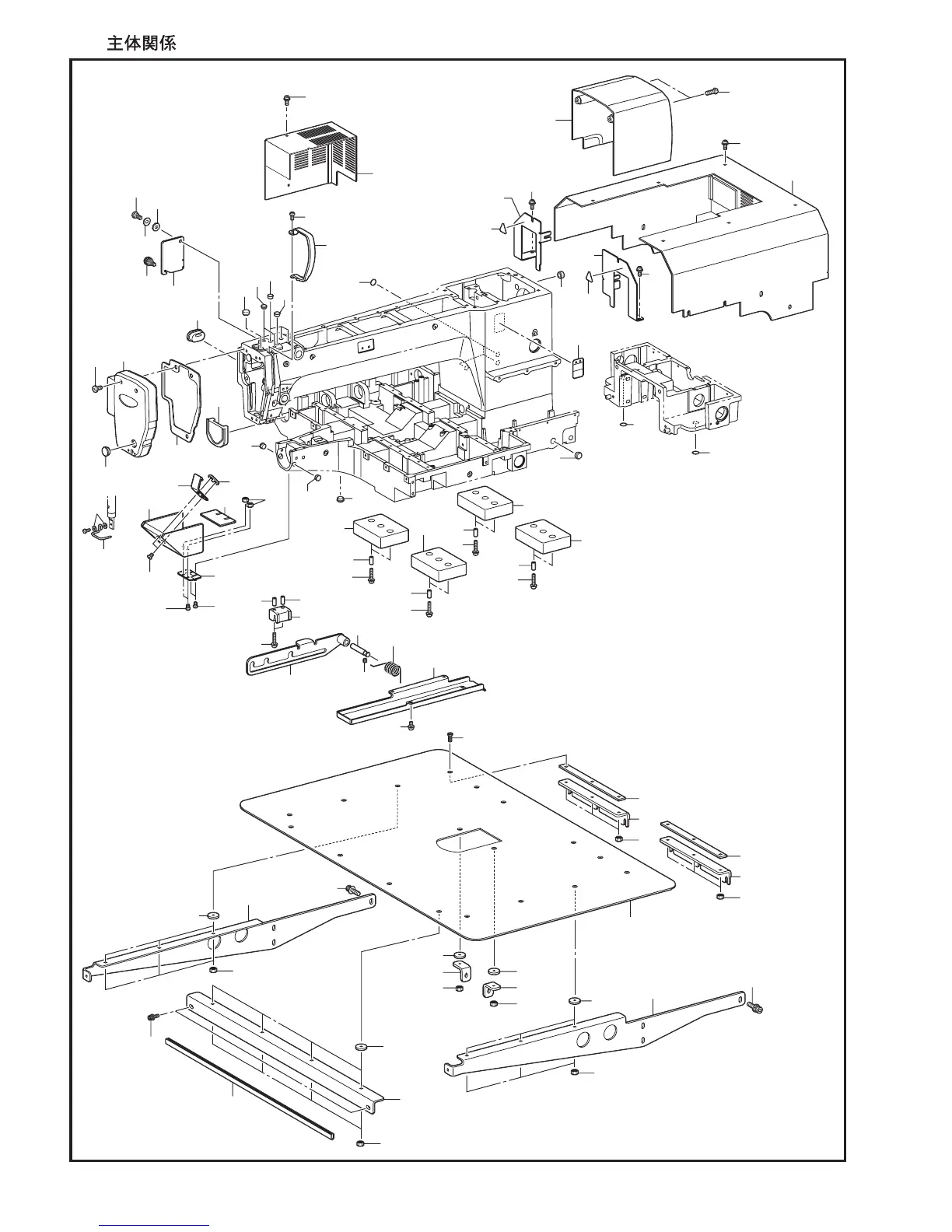

A1. / Machine body
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA4596001 1
RUBBER CAP 20-15
2 104821001 3
RUBBER CAP, 10.5
3 S20164001 1
RUBBER CAP, 13
4 S20164001 1
RUBBER CAP, 13
5 104450101 2
RUBBER CAP, 8
6 117936001 1
RUBBER CAP, 9.4
7 S44010001 2
RUBBER CAP, 11.5
8 150592001 1
RUBBER CAP, 16
9 104449001 1
RUBBER CAP, 15.5
10 SA8548101 1
11 SA4600001 1 FACE PLATE
12 104449001 1
RUBBER CAP, 15.5
13 SA4601001 1 F-PLATE PACKING
14 062061016 3 SCREW PAN M6X10
15 SB0007001 1
SHUTTLE RACE COVER HOOK D
17 004300513 2 SCREW, FLAT M3X5
18 SA3264001 1 NUT PLATE
19 SB0057001 1 FELT
20 SA6207001 1
HINGE
21 062300506 4 SCREW PAN M3X5
22 021300103 2 NUT, 1 M3
23 SA3200101 1
24 062401006 1 SCREW PAN M4X10
25 SA4604001 1
SHOULDER SCREW, 7-3
27 120265002 1
WASHER PLAIN
29 S36475000 1
SCREW, M5
30 SA8679001 1
FINGER GUARD
31 025350332 2
WASHER PLAIN L 3.5
32 SA8670001 4 CUSHION
33 SA8680001 8 SPACE
SCREW PAN (S/P WASHER) M4X20
35 SA8880001 1
RUBBER CUSHION
36 SA8680001 2 SPACE
SCREW PAN (S/P WASHER) M4X20
38 SA8549001 1
40 012060636 1 SET SCREW SOCKET (FT) M6X6
41 SA8551001 1
TOSHON SPRING
42 SA8552001 1 OIL PAN
43 0A5401006 4
SCREW PAN (S/P WASHER) M4X10
44 SA8553001 1
MOTOR COVER
45 062061616 2 SCREW PAN M6X16
46 SA8816001 1
SCREW PAN (S/P WASHER) M4X10
48 SA8555001 1
SCREW PAN (S/P WASHER) M4X10
50 SA8556001 1
SCREW PAN (S/P WASHER) M4X10
52 SA8557001 1
X MOTOR COVER
53 0A5401006 4
SCREW PAN (S/P WASHER) M4X10
54 SA8559001 1
UXILIARY PLATE
55 SA8560001 18
SCREW M4X12
56 SA4677101 12
UXILIARY PLATE CUSHION
57 021400206 18 NUT 2 M4
58 SA4676201 2
UXILIARY PLATE BRACKET M
62 S55481001 2
BOLT SOCKET (S/P WASHER) M4X12
63 SA5249001 2
1
A1 . / Machine body
BAS-342G PS-050
64
63
57
30
31
14
11
1
26
28
3
46
12
27
29
25
7
69
50
48
67
55
66
23
47
45
24
9
52
53
69
69
32
32
49
67
37
8
43
36
36
35
33
34
33
34
33
34
58
56
57
56
32
10
33
32
34
42
39
41
44
64
63
57
57
61
56
57
58
56
57
59
60
54
7
62
65
68
51
66
13
57
4
56
40
38
19
20
21
22
17
16
15
21
18
2
5
6
