Brother DCP-L5500DN Service Manual

5-34
Confidential
1.3.19 Adjust touch panel (function code: 61)
<Function>
This function is used to adjust the touch panel.
<Operating Procedure>
(1) Press the [6], and then the [1] key in the initial state of maintenance mode. The
adjustment screen shown below appears on the LCD.

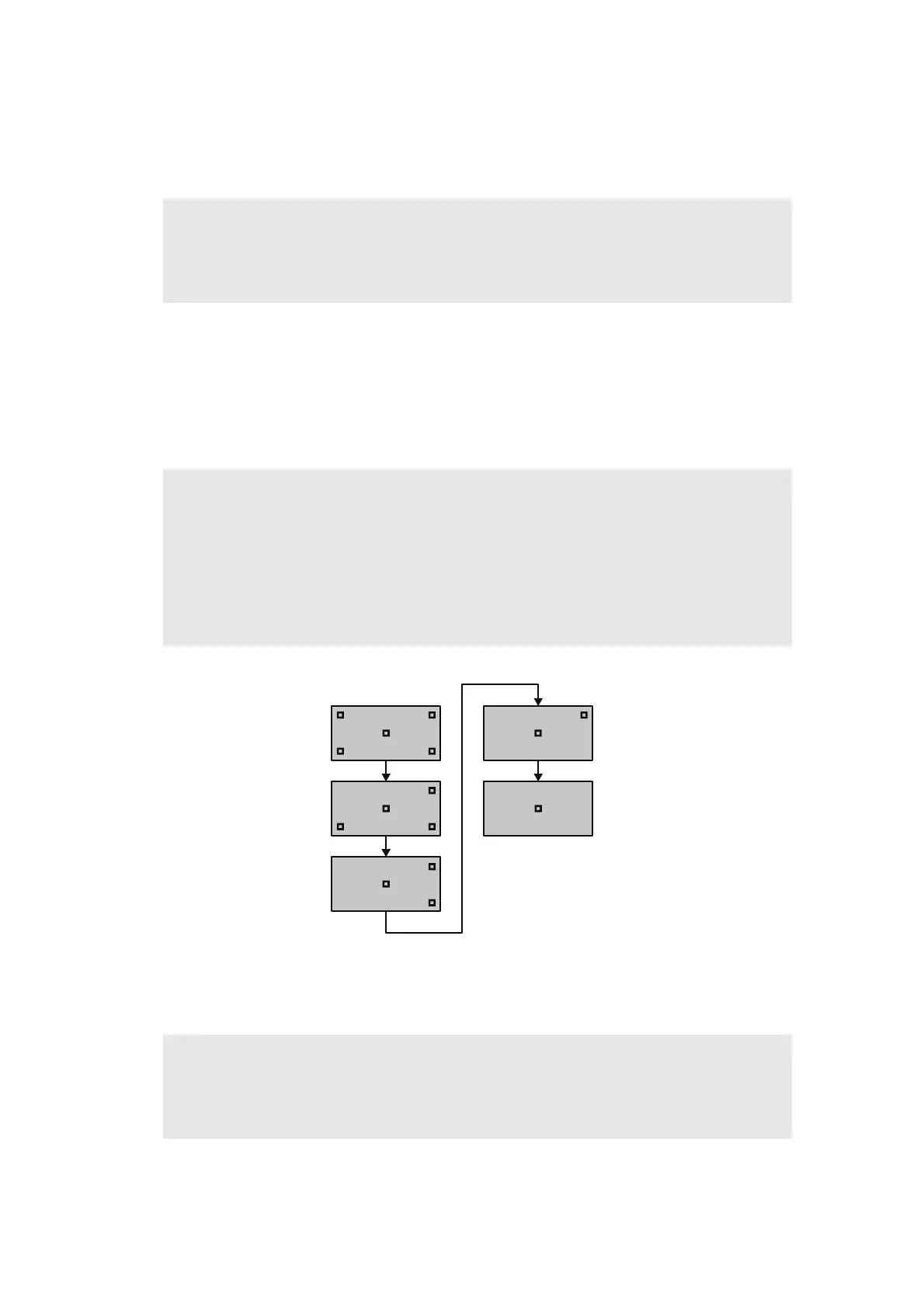

(2) Use a touch pen and touch the center on the mark at the upper left corner of the screen.
The mark disappears when touched, then touch the mark at the lower left. Similarly
touch the mark at the lower right, upper right and center.
Fig. 5-10
(3) When the center (the 5th mark) is touched, "OK" is displayed on the LCD if the specified
area is adjusted correctly. The machine returns to the initial state of maintenance mode.
Note:
• This adjustment requires a touch pen with a thin tip. A commercially available touch pen
designed for electronic dictionaries or personal digital assistance (PDA) can be used. If
one is not available at hand, order a "Touch pen" from Brother's parts list.
Note:
• Do not use any tools other than a touch pen. In particular, never use a pointed tool (e.g.
screwdriver). Using such a tool will damage the touch panel.
• Do not touch the touch panel with your fingers. The contact area of a finger is too large
to adjust the touch panel precisely.
• If no operation is performed for one minute or the [X] key is pressed, the machine
returns to the initial state of maintenance mode.
Note:
• If "NG" is still displayed on the LCD even after this operation is repeated two to three
times, check the connection of the panel flat cable. If the LCD keeps displaying "NG"
even there is no problem, replace the LCD panel ASSY.

Brother DCP-L5500DN Specifications

General

N-up printing	2, 4, 9, 16, 25
Secure printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto/Manual
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	10 ppm
Scan to	E-mail, E-mail Server, FTP, File, Image, OCR, USB
Scan drivers	ISIS, TWAIN
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	48 bit
Output color depth	24 bit
Scan speed (black)	24 inch/min
Scan speed (color)	20 inch/min
Image formats supported	JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF, XPS
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2
Copy speed (black, normal quality, A4)	40 cpm
Faxing	No
Printing colors	Black
Maximum duty cycle	50000 pages per month
Recommended duty cycle	0 - 3500 pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter, Microsoft XPS, PCL 6, PDF 1.7
Display	LCD
Control type	Touch
Product color	Black, Graphite
Display diagonal	3.7 \
Market positioning	Business
Email protocols	APOP, IMAP4, POP3, SMTP
Cabling technology	10/100Base-T(X)
Security algorithms	802.1x RADIUS, APOP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, IPPS, IPSEC, PEAP, SMTP-AUTH, SNMP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Online services supported	Box, Dropbox, Evernote, Facebook, Flickr, Google Drive, OneDrive, OneNote, Picasa
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3*, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4
Processor family	ARM
Sound pressure level (printing)	54 dB
Sound pressure level (quiet mode)	52 dB
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Mobile operating systems supported	Windows Phone, Windows RT
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Package depth	520 mm
Package width	545 mm
Package height	641 mm
Package weight	19700 g
Power consumption (off)	1.6 W
Power consumption (sleep)	7.5 W
Power consumption (standby)	34 W
Power consumption (PowerSave)	390 W
Power consumption (average operating)	645 W
Energy Star Typical Electricity Consumption (TEC)	1.832 kWh/week
Sustainability certificates	Nordic Swan Ecolabel, Blue Angel, ENERGY STAR
Paper tray media types	Plain paper, Recycled paper, Thick paper, Thin paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Bond paper, Envelopes, Labels, Letterhead, Plain paper, Recycled paper, Thick paper, Thicker paper, Thin paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 200 g/m²
Auto Document Feeder (ADF) media weight	64 - 90 g/m²
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	40 sheets
Certification	GS Mark
Harmonized System (HS) code	84433100

Weight and Dimensions

Depth	427 mm
Width	435 mm
Height	486 mm
