Brother HL-L2361DN - Overview of Gears

3-6
Confidential

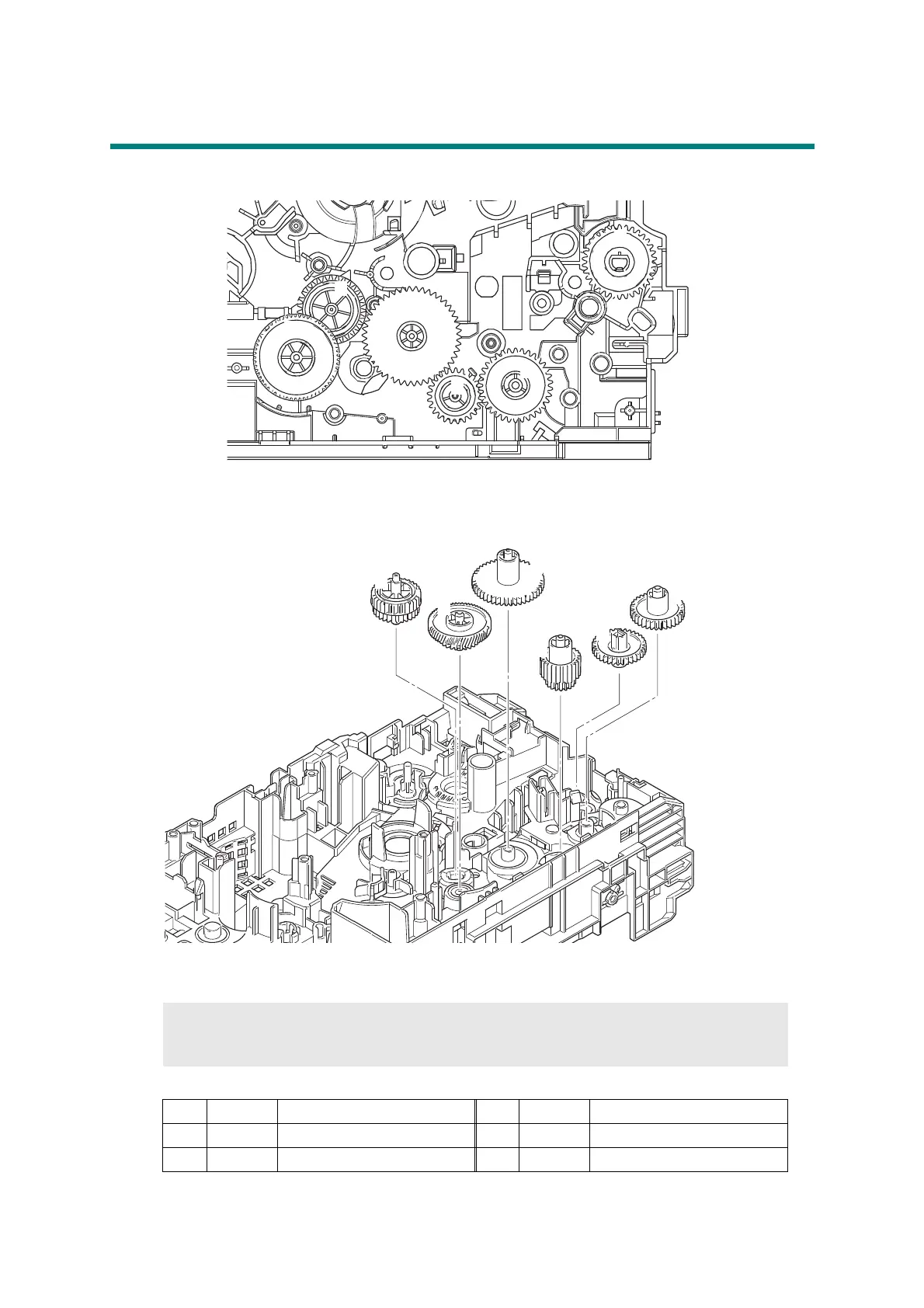

6. OVERVIEW OF GEARS
<Layout view>
Fig. 3-4
<Development view>
Fig. 3-5
<Name of gears>
* These parts are subject to change without notice.
Note:
• When handling gears, make sure that frame L faces up. Otherwise all gears come off.
1 LY9021 PF gear 61R/26 4 LY9025 PF gear 34
2 LY9022 PF gear 31/29 5 LY9024 PF gear 25/18
3 LY9023 PF gear 46 6 LY9088 Feeder gear 34
1
2
3
5
4
6
1
2
3
5
4
6
