Brother JS1410 User Manual

Application of
Assembly
3 - 33
Bobbin winder, Upper shaft, Needle-Presser module
Application o
f
Assembly
Application of
Assembly

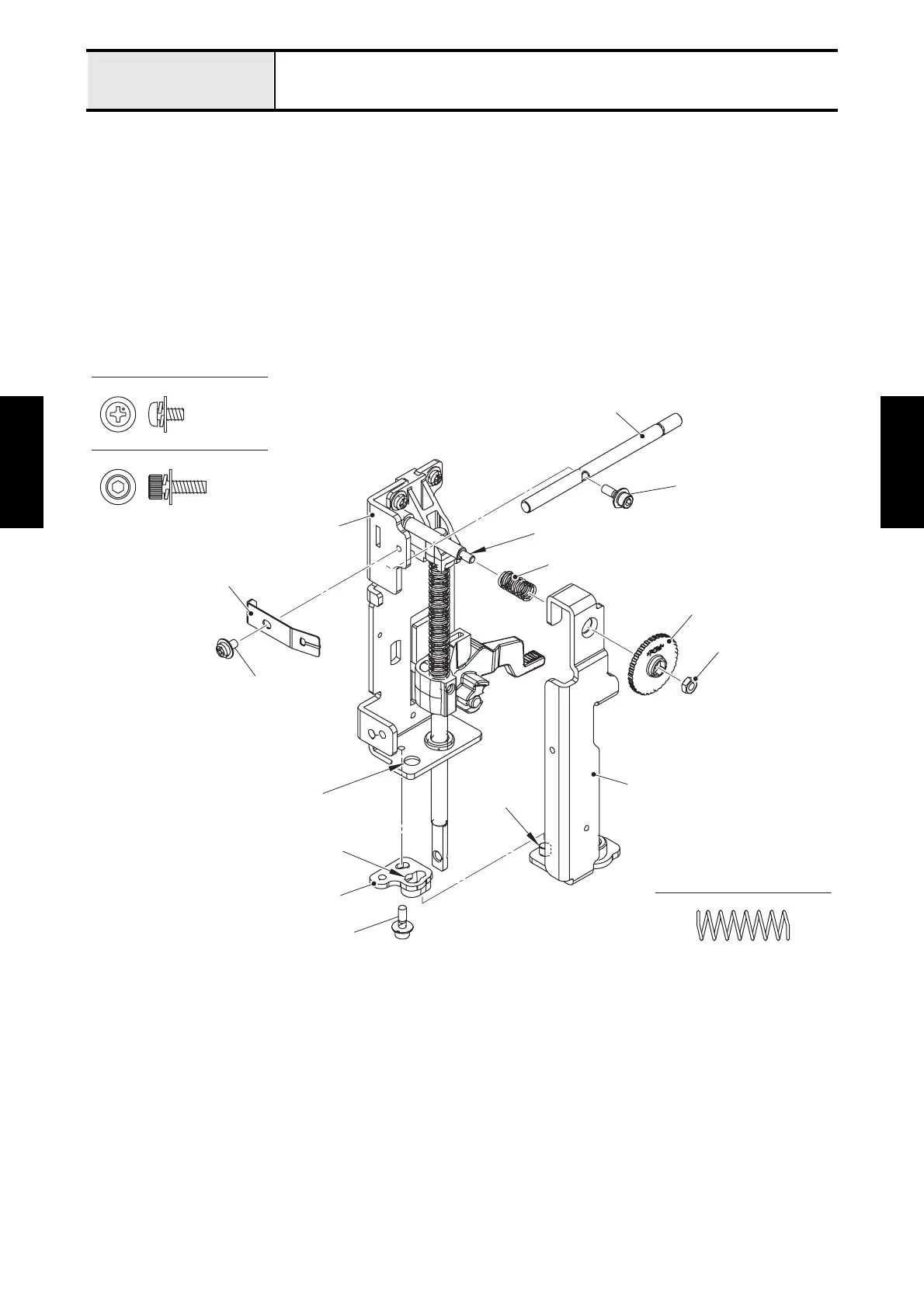

4. Set the shaft to the base holder assy, and secure it with the screw (screw 3X10).
5. Align the boss of base holder assy with the positioning hole of needle bar supporter guide, and set the
needle bar supporter guide to the base holder assy, and tighten the screw (screw 3X10) temporarily.
*Key point
• Fully tighten the screw after performing “4 - 11 Needle interference left/right”.
6. Set the needle bar supporter spring (XF3423) to the shaft of base holder assy.
7. Set the pin of needle bar supporter assy to the positioning hole on needle bar supporter guide, and set
the needle bar supporter assy to the shaft of base holder assy. And set the nut 2 M3 to the needle bar
supporter presser, and tighten them to the shaft of base holder assy.
8. Set the spring plate to the base holder assy, and secure it with the screw (screw, pan (S/P washer)
M3X6).
Screw, Pan (S/P washer) M3X6
Needle bar supporter spring (XF3423)
Screw 3X10
Hex wrench 2.5 mm
Screw 3X10
Shaft
Screw 3X10
Needle bar supporter guide
Positioning hole
Boss
Needle bar supporter presser
Nut 2 M3
Needle bar supporter spring (XF3423)
Shaft
Screw, pan (S/P washer) M3X6
Spring plate
Needle bar supporter assy
Pin
Base holder assy
