9.14.2 Panel PCB ASSY
(1) Release each Hook to remove the Panel PCB ASSY from the Panel unit.
(2) Reverse the Panel PCB ASSY. Release the Lock to disconnect the LCD flat cable from the
Panel PCB ASSY.

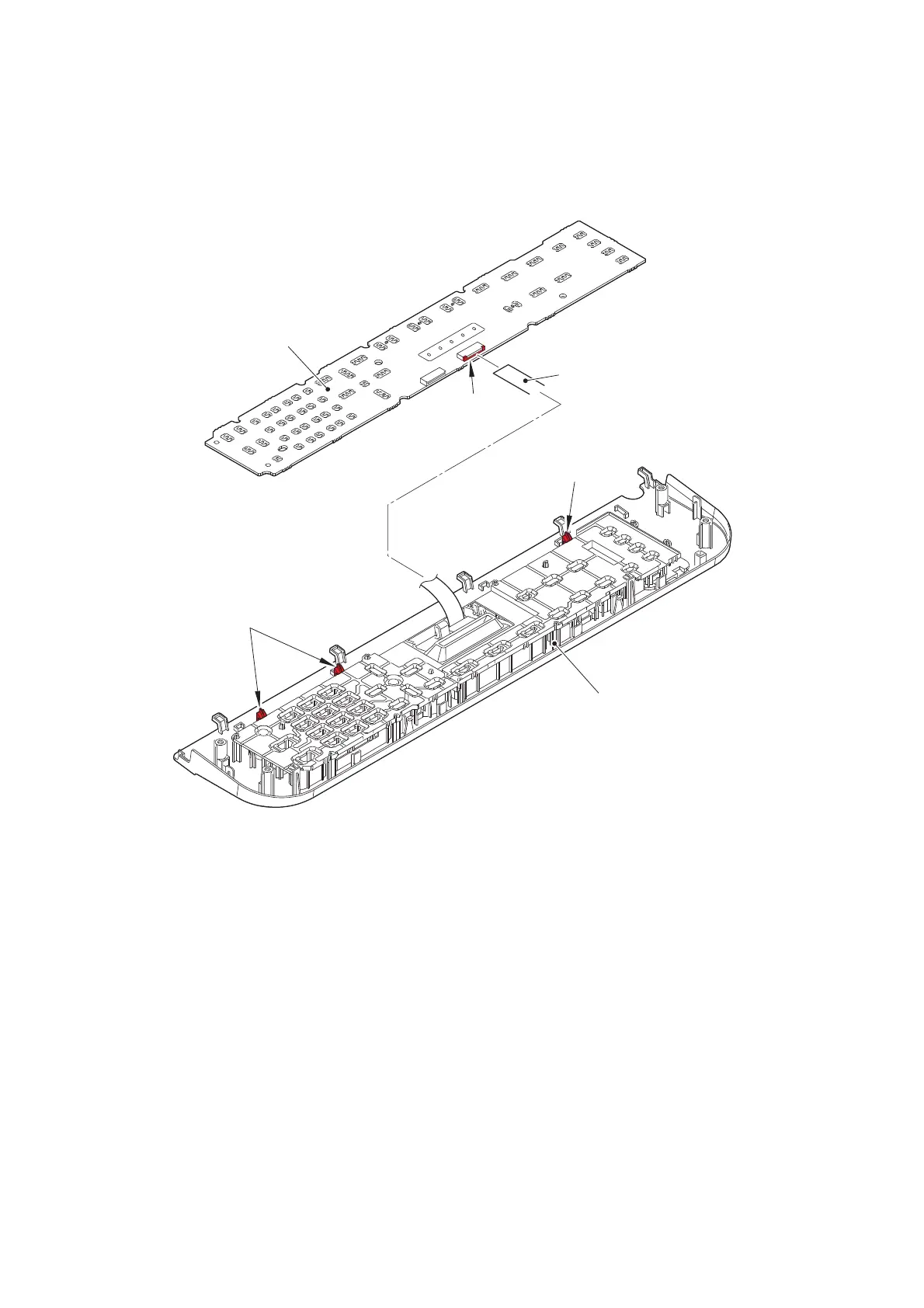

Fig. 3-51
Panel unit
LCD flat cable
Hooks
Hook
Panel PCB ASSY
Lock

Brother MFC-L2715DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Connectivity	USB, Ethernet, Wi-Fi
Display	2-line LCD
Processor	600 MHz
Max Paper Size	A4
Scan Resolution	Up to 1200 x 1200 dpi
Operating Systems Compatibility	Windows, macOS, Linux
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Monthly Duty Cycle	Up to 15, 000 pages
Mobile Printing	AirPrint, Google Cloud Print, Brother iPrint&Scan
Print Speed	Up to 34 ppm
ADF Capacity	50 sheets
