Brother MFC-L2715DW User Manual

3-82
Confidential

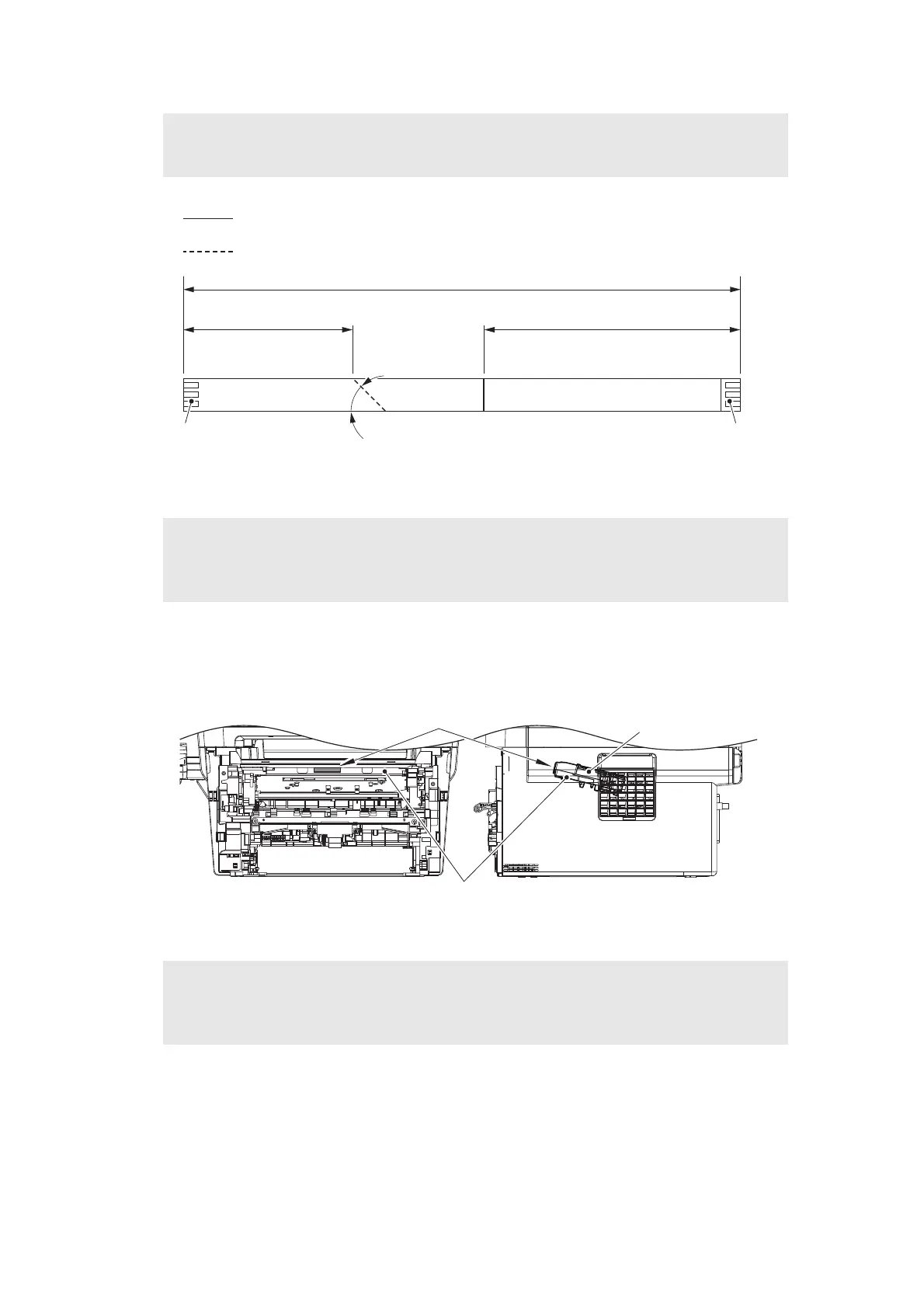

Fig. 3-77
<How to identify the type of Laser unit and the position of the laser serial number label>
Fig. 3-78
Assembling Note:
• Fold the Laser unit flat cable at the positions described below.
Assembling Note:
• After the replacement, refer to “3. IF YOU REPLACE THE LASER UNIT” in Chapter 4
to enter the adjusted value of the Laser unit.
Assembling Note:
• Attach the laser serial number label as shown in the figure above (on the Scanner
plate) after replacing the Laser unit.
45°
<Main
PCB side>
71±1 108±1
234±5
Mountain fold
Valley fold
<Laser
unit side>
Electrode Electrode
Laser unit
Laser serial number label
Scanner plate

Brother MFC-L2715DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Connectivity	USB, Ethernet, Wi-Fi
Display	2-line LCD
Processor	600 MHz
Max Paper Size	A4
Scan Resolution	Up to 1200 x 1200 dpi
Operating Systems Compatibility	Windows, macOS, Linux
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Monthly Duty Cycle	Up to 15, 000 pages
Mobile Printing	AirPrint, Google Cloud Print, Brother iPrint&Scan
Print Speed	Up to 34 ppm
ADF Capacity	50 sheets
