3-44

Confidential

9.11.3 Document sub tray

(1) Release each Hook to remove the Gear cover from the ADF unit.

(2) Remove the two Taptite cup B M3x10 screws. Release each Hook to remove the ADF front

cover from the ADF unit.

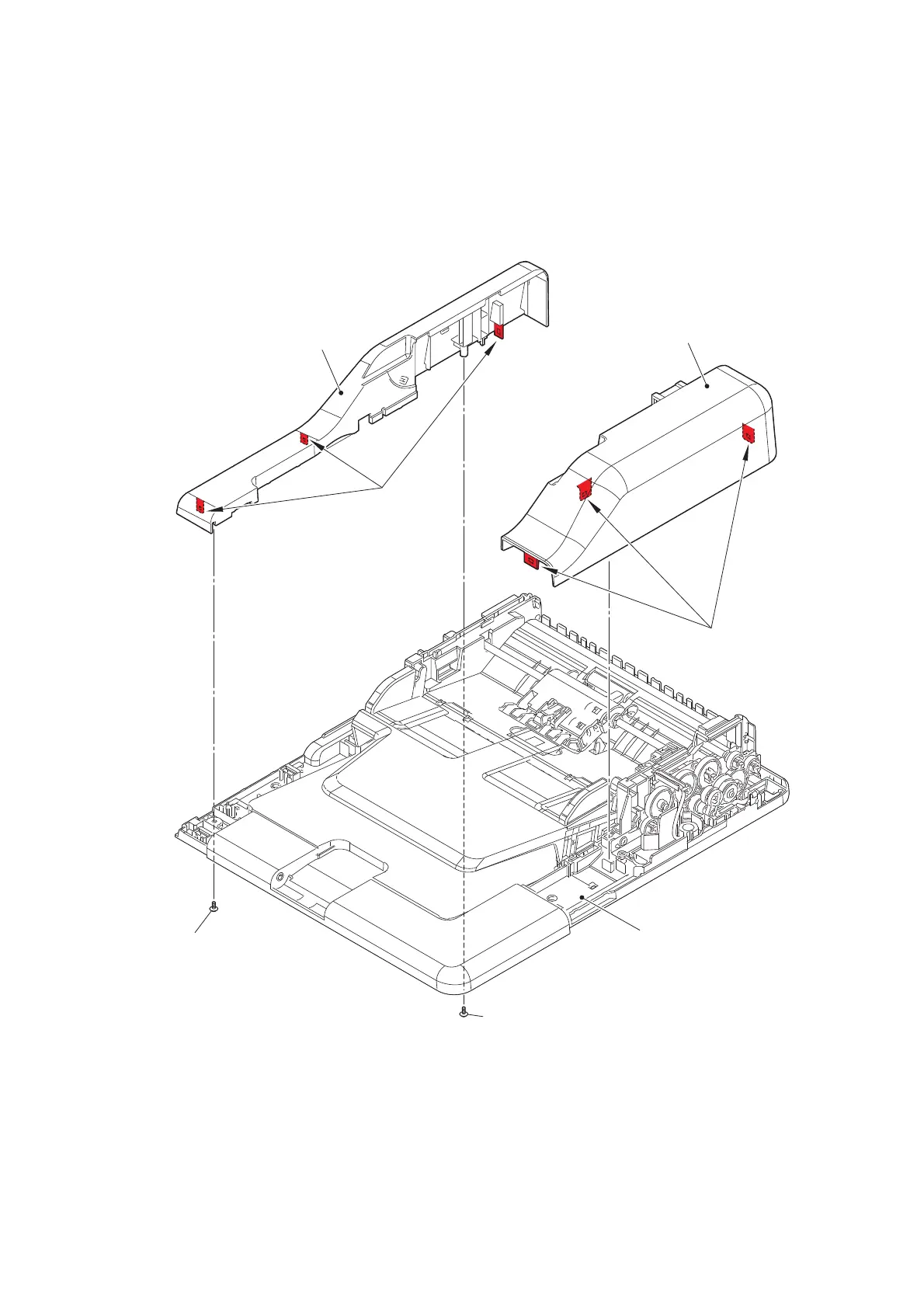

Fig. 3-35

ADF unit

Hooks

Hooks

ADF front cover

Gear cover

Taptite cup B M3x10

Taptite cup B M3x10
