Brother MFC-L2717DW User Manual

3-56
Confidential
9.13.2 Panel PCB ASSY / NFC PCB ASSY / LCD
(1) Disconnect the Key flat cable from the Panel PCB ASSY, and release it from the securing
fixtures.
(2) Release the Hook A to remove the LCD pressure plate from the Panel unit.
(3) Remove the four Taptite cup B M3x10 screws to remove the Shield plate cover from the
Panel unit.
(4) Release the Lock to disconnect the LCD flat cable from the Panel PCB ASSY. Disconnect
the NFC flat cable from the Panel PCB ASSY, and remove the Panel PCB ASSY from the
Panel unit.
(5) Remove the Shield plate base from the Panel unit.
(6) Release the Hook B to remove the NFC PCB ASSY from the Panel unit.
(7) Remove the LCD from the Panel unit.

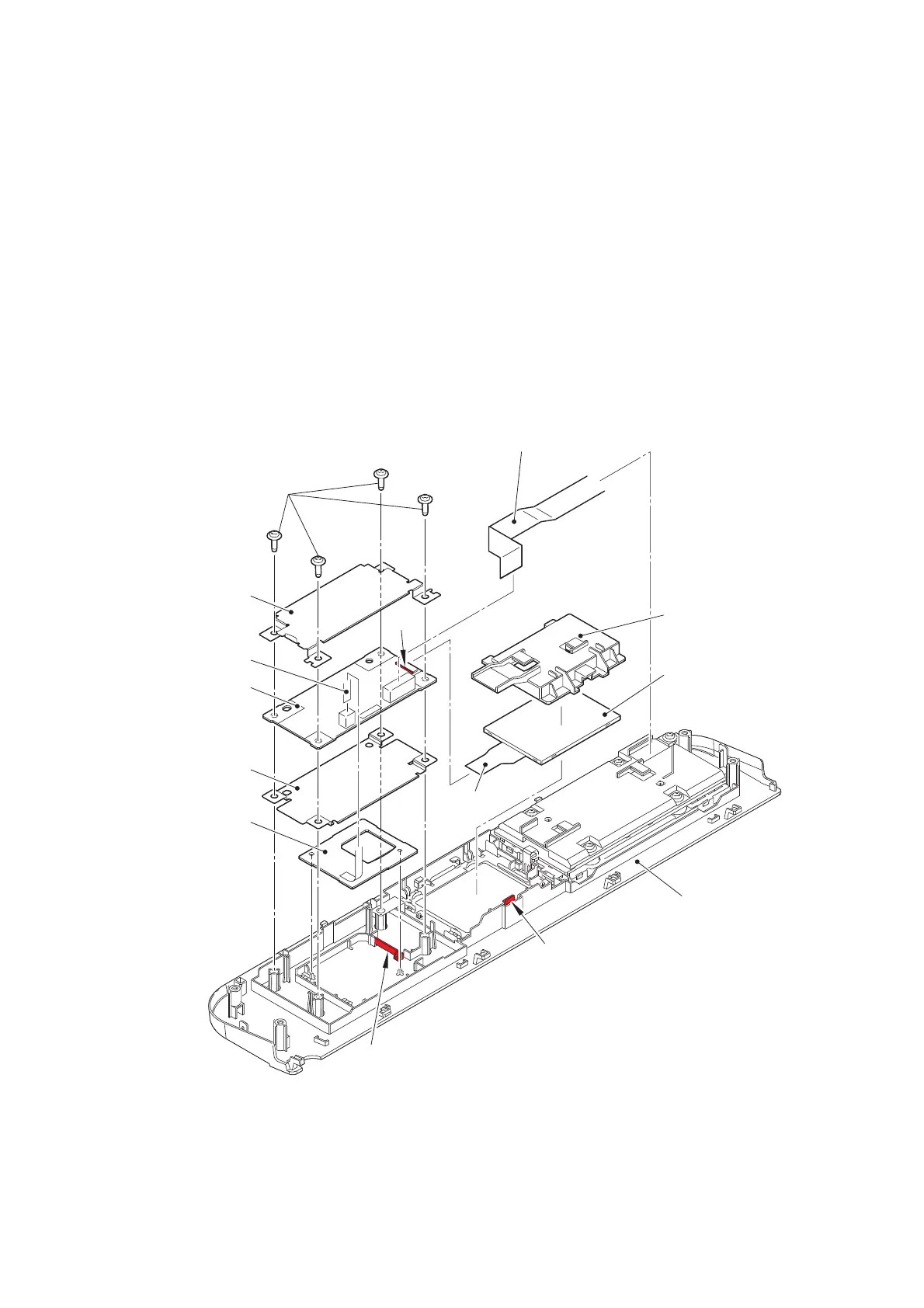

Fig. 3-48
Harness routing: Refer to “5. Panel unit”.
Shield plate cover
Taptite cup B M3x10
Key flat cable
LCD pressure plate
LCD flat cable
Panel PCB ASSY
Shield plate base
Hook A
Lock
Panel unit
LCD
Hook B
NFC PCB ASSY
NFC flat cable

Brother MFC-L2717DW Specifications

General

Print Technology	Laser
Paper Input Capacity	250 sheets
Functions	Print, Copy, Scan, Fax
Fax Speed	33.6 Kbps
Print Resolution	2400 x 600 dpi
Connectivity	Ethernet, Wi-Fi
Scan Resolution	1200 x 1200 dpi
Mobile Printing	Yes
