Brother MFC-L5850DW Service Manual

2-4
Confidential
2. OVERVIEW

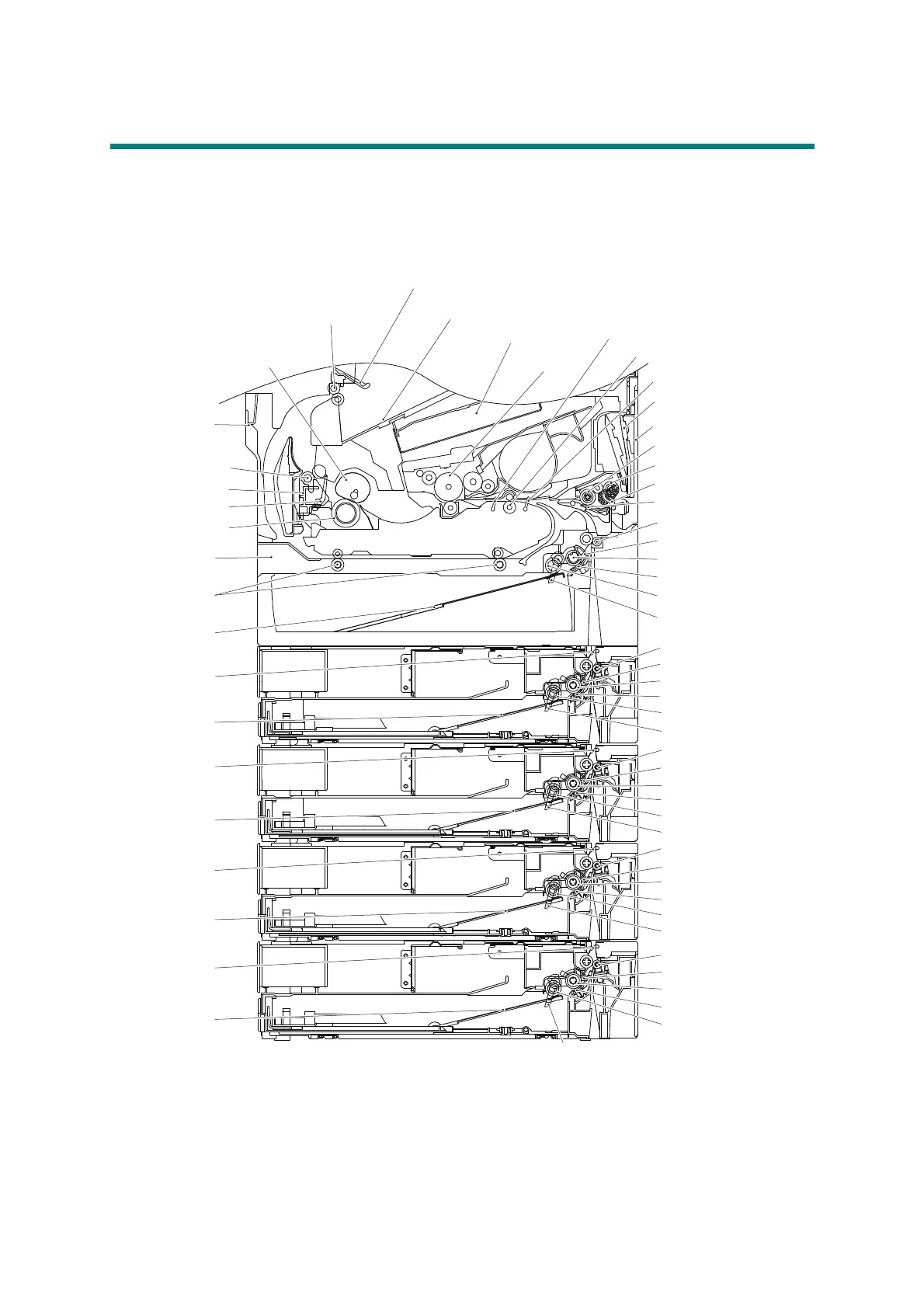

2.1 Cross-section Drawing
2.1.1 Printer part
Fig. 2-2
Eject stack actuator
Exposure
drum
Eject roller2
Back cover
Heat film
Eject roller 1
Fuser cover
Eject actuator
Pressure roller
Duplex tray
Duplex paper
feed roller
T2TT jam
actuator
(TT only)
T5TT paper empty actuator
<Back side>
<Front side>
T1 plate
T3TT jam
actuator
(TT only)
T2 plate
T3 plate
T4TT jam
actuator
(TT only)
T4 plate
T5TT jam
actuator
(TT only)
T5 plate
T5TT paper dust cleaning roller
T5TT paper feed actuator
T5TT separation roller
T5TT separation pad
T5TT paper pick up roller
T4(LT or TT) paper dust cleaning roller
T4(LT or TT) paper feed actuator
T4(LT or TT) separation roller
T4(LT or TT) separation pad
T4(LT or TT) paper pick up roller
T4(LT or TT) paper empty actuator
T3(LT or TT) paper dust cleaning roller
T3(LT or TT) paper feed actuator
T3(LT or TT) separation roller
T3(LT or TT) separation pad
T3(LT or TT) paper pick up roller
T3(LT or TT) paper empty actuator
T2(LT or TT) paper dust cleaning roller
T2(LT or TT) paper feed actuator
T2(LT or TT) separation roller
T2(LT or TT) separation pad
T2(LT or TT) paper pick up roller
T2(LT or TT) paper empty actuator
T1 paper dust cleaning roller
T1 paper feed actuator
T1 separation roller
T1 separation pad
T1 paper pick up roller
T1 paper empty actuator
(Models with USB host on the
rear side only)
MP separation pad
MP paper empty actuator
MP paper pick up roller
MP separation roller
Front cover
MP tray
Registration front actuator
Registration roller
Registration rear actuator
Laser unit
Machine output tray

Brother MFC-L5850DW Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	42 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	9.2 s
Copy speed (black, normal quality, A4)	42 cpm
Scan to	CIFS, Cloud, E-mail, E-mail Server, FTP, File, OCR, USB
Scan drivers	ICA, ISIS, SANE, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Input color depth	48 bit
Output color depth	24 bit
Scan speed (black)	28 ppm
Scan speed (color)	20 ppm
Input grayscale depth	16 bit
Image formats supported	JPEG, JPG, PNG, TIF, TIFF
Maximum scan resolution	19200 x 19200 DPI
Duplex scan speed (black)	56 ppm
Duplex scan speed (color)	34 ppm
Document formats supported	DOCX, HTM, HTML, PDF, PPTX, RTF, TXT, XLS, XLSX, XML, XPS
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, JPEG, MH, MMR (Fax coding method), MR
Fax speed dialing (max numbers)	300
Printing colors	Black
Maximum duty cycle	50000 pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter, PCL 5c, PCL 5e, PCL 6, PDF 1.3
Display	TFT
Control type	Touch
Display diagonal	3.7 \
Market positioning	Business
Email protocols	APOP, IMAP4, POP3, SMTP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Near Field Communication (NFC)	No
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS Name Resolution, DNS Resolver, mDNS, LLMNR Responder, LPR/LPD, Custom Raw Port/Port 9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS Server, TFTP Client and Server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client y Server, CIFS Client, TELNET Server, SNMPv1/v2c, HTTP/HTTPS server, TFTP client y server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	70 sheets
Paper tray media types	Bond paper, Envelopes, Labels, Letterhead, Plain paper, Recycled paper
Paper tray media weight	60 - 120 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Envelopes, Legal, Letter
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 200 g/m²
Auto Document Feeder (ADF) media weight	60 - 105 g/m²
Package depth	525.8 mm
Package width	599.4 mm
Package height	629.9 mm
Package weight	20865 g
Quantity per pack	1 pc(s)
Recommended monthly print volume	3500 pages
Card reader integrated	-
Sound pressure level (printing)	55 dB
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1248 W
Power consumption (off)	0.03 W
Power consumption (ready)	36 W
Power consumption (sleep)	8.4 W
Power consumption (printing)	630 W
Power consumption (average operating)	- W
Energy Star Typical Electricity Consumption (TEC)	0.567 kWh/week
Storage temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	35 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	EPEAT Silver, ENERGY STAR
Cables included	Phone
Bundled software	Nuance PaperPort SE with OCR for Windows, Presto! PageManager with OCR for Mac
Included cartridge capacity (black)	3000 pages

Weight and Dimensions

Depth	426.7 mm
Width	495.3 mm
Height	485.1 mm
