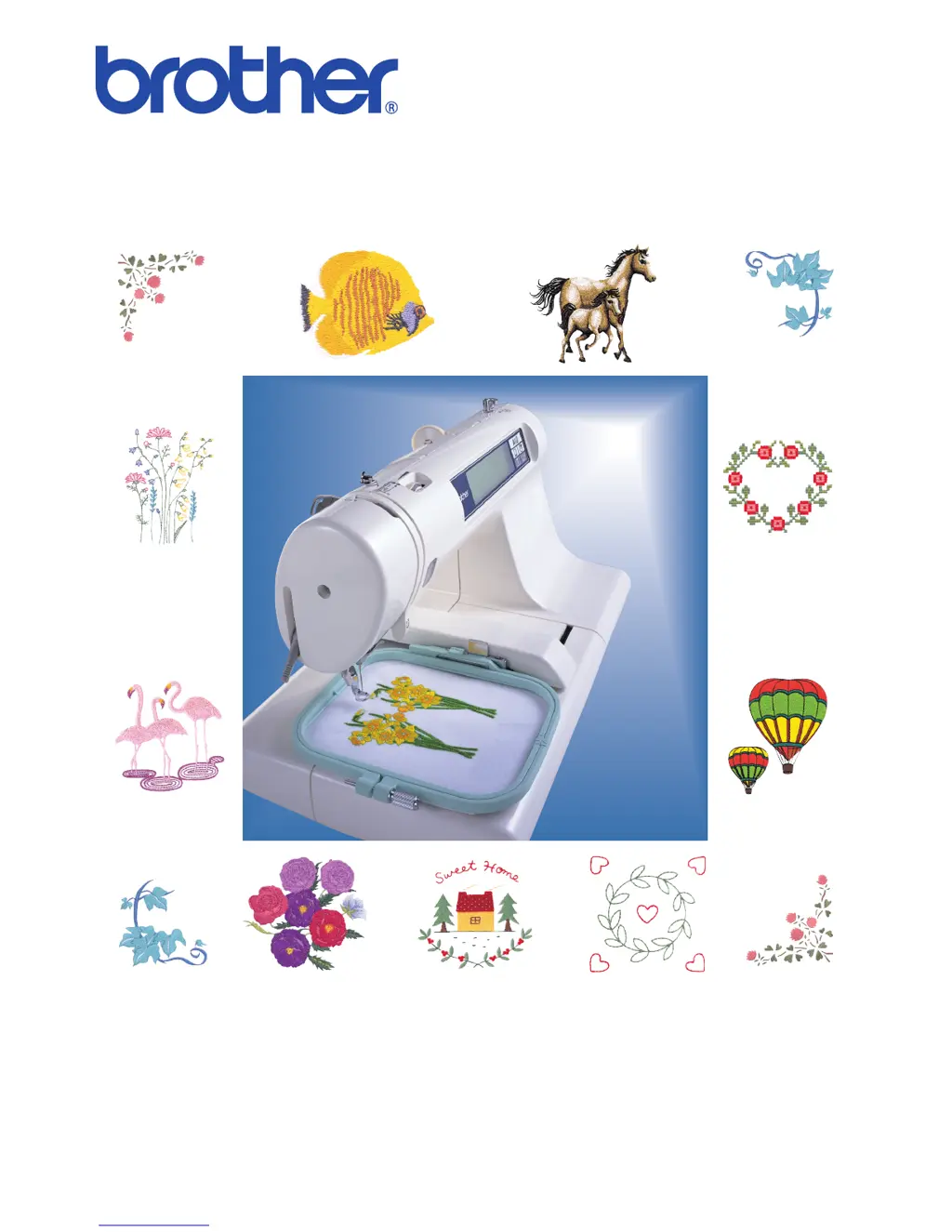

Brother PE-180D - User Manual

Other manuals for Brother PE-180D

Service Manual44 pages

Questions and Answers

T
Tiffany HarrisAug 17, 2025
Why does the upper thread keep breaking on my Brother PE-180D Sewing Machine?
- A
  Amanda ThompsonAug 17, 2025
  If the upper thread of your Brother Sewing Machine breaks, it could be due to several reasons. Ensure the upper threading is correct by re-threading it. A tangled upper thread can also cause this, so try cleaning the race or inner rotary hook. Make sure the spool of thread is correctly set and that you are using the proper needle. Finally, if you're using a thread other than the designated upper embroidery thread, replace it with the correct one.
H
Heidi BrownAug 19, 2025
What to do if my Brother PE-180D Sewing Machine is skipping stitches?
- R
  romeromatthewAug 19, 2025
  If your Brother Sewing Machine is skipping stitches, it might be due to a few reasons. First, ensure that the needle is correctly inserted. If not, set the needle properly. Also, check if you are using the correct needle. Make sure the fabric is correctly placed in the embroidery frame, and the embroidery frame is correctly attached to the machine. If you're using thin or stretch fabric, attach stabilizer fabric to provide additional support.
J
Jacob HollandAug 22, 2025
What to do if my Brother PE-180D does not start?
- A
  Andrew LaneAug 22, 2025
  If your Brother Sewing Machine does not start, make sure you press the “START/STOP” button. Check that the main power switch is in the on position. Ensure the presser foot is lowered. You may need to see “ERROR MESSAGE” on page 59.
D
Dana HickmanAug 25, 2025
How to prevent fabric puckering with my Brother Sewing Machine?
- J
  Jessica HallAug 26, 2025
  If your Brother Sewing Machine's fabric puckers, it could be due to several reasons. The upper thread tension might be too strong, so decrease it using the upper thread tension dial. Ensure that both the upper and lower threads are threaded correctly. If you're using thin or stretch fabric, attach stabilizer fabric. Also, make sure the fabric is correctly placed in the embroidery frame and that you are using the correct needle.
D
Danielle ThomasAug 28, 2025
Why is the upper thread loose on my Brother PE-180D Sewing Machine?
- D
  David HernandezAug 28, 2025
  If the upper thread is loose on your Brother Sewing Machine, it could be because the upper thread tension is too weak. Increase the upper thread tension using the upper thread tension dial. Another reason could be that the upper or lower thread is not threaded correctly, so ensure they are. Also, check that you're using the designated upper and lower embroidery threads; if not, replace them.
H
hharrellAug 30, 2025
Why is my Brother PE-180D Sewing Machine running slow and noisy?
- B
  Brooke PowellAug 30, 2025
  If your Brother Sewing Machine operation is slow and noisy, it could be because thread scraps and dust have accumulated under the needle plate. Remove the thread scraps and dust with a brush.
J
Jaime NguyenSep 2, 2025
Why is the needle breaking on my Brother PE-180D Sewing Machine?
- T
  Travis BryanSep 2, 2025
  If the needle of your Brother Sewing Machine breaks, it may be because the needle is not correctly inserted. Remove the needle and reset a new needle properly. Another reason may be that the correct needle is not being used, so change to the proper needle.
L
Linda LiSep 4, 2025
What causes the lower thread to break on my Brother PE-180D?
- S
  Steven NorrisSep 4, 2025
  If the lower thread of your Brother Sewing Machine breaks, it could be due to a tangled upper thread. Try cleaning the race or inner rotary hook. Also, check that the bobbin is threaded properly in the shuttle. Remove the bobbin, reset it correctly, and pull the bobbin thread through the channel. Finally, ensure you are using the designated lower embroidery thread; if not, replace it.
S
scott77Sep 7, 2025
Why is the lower thread visible on the top surface of the fabric with my Brother Sewing Machine?
- M
  maryrodriguezSep 7, 2025
  If you notice the lower thread is visible on the top surface of the fabric when using your Brother Sewing Machine, it could be due to a few reasons. The upper thread tension might be too strong, so decrease it using the upper thread tension dial. Make sure that both the upper and lower threads are threaded correctly. If the thread has been threaded incorrectly through the inner rotary hook, remove the bobbin, reset it properly, and pull the bobbin thread through the channel. Lastly, ensure you are using the designated lower embroidery thread; if not, replace it.
E
Erin StanleySep 12, 2025
Why is the embroidered pattern out of shape on my Brother Sewing Machine?
- L
  Logan TaylorSep 12, 2025
  If the embroidered pattern on your Brother Sewing Machine is out of shape, it could be due to a few reasons. Check that the fabric has been placed in the embroidery frame correctly and that the embroidery frame has been attached to the machine correctly. If you are using thin or stretch fabric, make sure to attach stabilizer fabric. Ensure that you are using the designated upper and lower embroidery threads. Also, check for and remove any tangled thread inside the rotary hook, and clean the race or inner rotary hook.

Summary

Important Safety Instructions

General Safety Precautions

Essential safety rules for machine operation, covering electrical hazards, user safety, and proper use.

Chapter 1: Machine Knowledge

Identifying Machine Parts and Controls

Fabric Preparation and Frame Handling

Thread Tension and LCD Adjustment

Guidance on thread tension adjustment for stitch quality and modifying LCD screen settings.

Needle Replacement and Care

Procedures for safely changing the needle and checking for bent needles.

Chapter 2: Embroidery Operations

Embroidery Setup and Basics

Initial steps for starting embroidery, including threading, frame attachment, and pattern selection.

Pattern Selection and Input

Saving and Retrieving Designs

Pattern Modification and Advanced Techniques

Sewing Embroidery Patterns

Handling Embroidery Issues

Procedures for addressing thread breaks, incomplete patterns, and other common embroidery challenges.

Machine Maintenance and Troubleshooting

Understanding Error and Warning Messages

Explanation of all error messages, warnings, and audio alarms to help diagnose issues.

Resolving Common Embroidery Problems

Solutions for thread issues, stitch problems, mechanical failures, and other operational difficulties.

Brother PE-180D Specifications

General

Type	Embroidery Machine
Embroidery Area	4" x 4"
Built-in Fonts	5
LCD Display	Yes
USB Port	Yes
Thread Tension Control	Automatic
Maximum Embroidery Speed	650 stitches per minute
Connectivity	USB
Needle	Single
