Brother VX710 - 1 Clearance between Shuttle Driver Shaft and Race Way

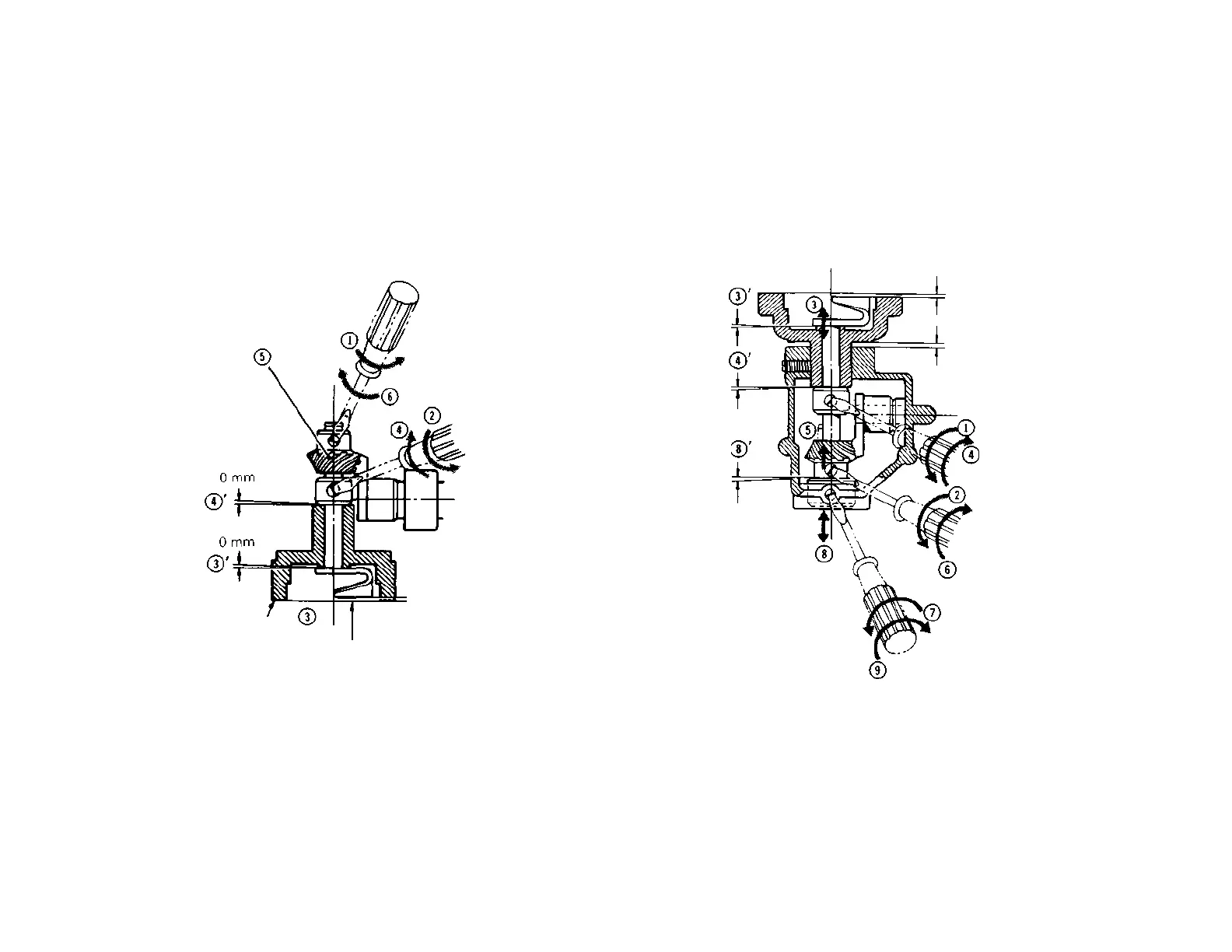

5-1. Clearance between shuttle driver shaft and race way
5-2. Clearance between shuttle driver shaft and race way
VX511, VX541, VX561, VX581 VX611,
VX641, VX661, VX681 VX710, VX720,
VX740, VX760, VX780
VX516, VX546, VX566, VX586
VX616, VX646, VX666, VX686
Shuttle driver
0.05± 0.2
0 mm
1.0 mm
0 mm
0.2 mm
0.05 ~ 0.2 mm
1 f
Race wa
y
Note: When you adjusted this item, check item 4-1.
Note: When you adjusted this item, check item 4-2.
