BROWN 484 - Replacement Parts: 2-Disc Slip Clutch; 2-Disc Slip Clutch Parts and Adjustment

Replacement Parts
37

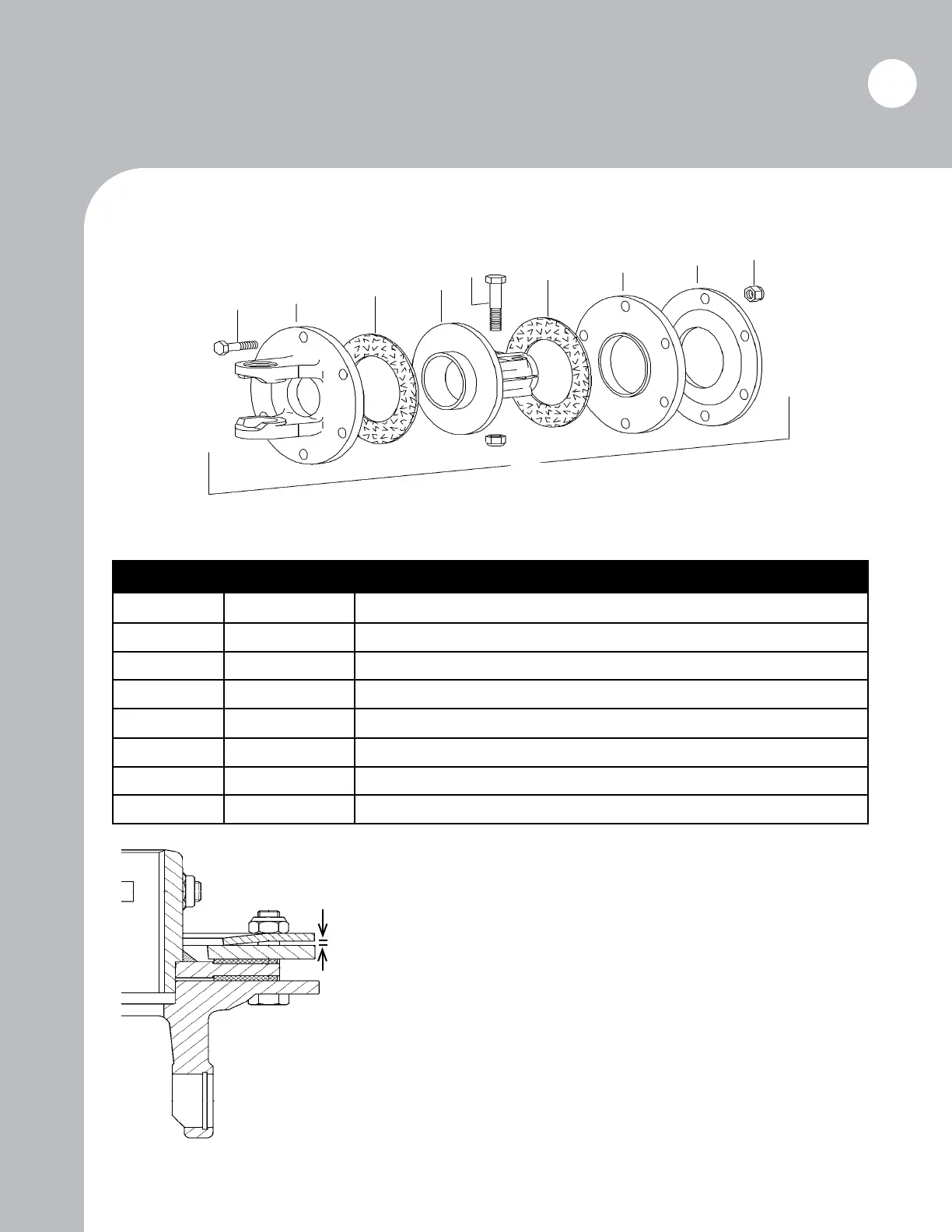

2-Disc Slip Clutch (460, 472)
Ref. No. Part No. Description
1 236-1750 Bolt, nut, clutch tension
2 236-1702 Yoke, anged, 2 disc
3 236-1703 Lining, clutch, 2 req.
4 236-1704 Hub, 2 disc, 1-3/4” z 20
5 236-1760 Bolt, hub with nut (2 req.)
6 236-1705 Plate, thrust, 2 disc
7 236-1706 Spring, belleville, 2 disc
8 236-1701 Clutch assembly, 2 disc
1
1
2
3
4
5
3
6
7
8
4.0mm - 4.5mm
CLUTCH ADJUSTMENT PROCEDURE
460 - 472 2-DISC SLIP CLUTCH
To adjust the clutch to proper torque, the gap between the belleville spring and
the drive plate should be between 4.0-mm and 4.5mm. Tightening the nut one
revolution will compress the spring 1.5-mm. Tightening the nut one at side will
compress the spring 0.25mm.
This can also be set by tightening each of the lock nuts until the spring is at
against the drive plate and then loosening each nut 3 full revolutions. The clutch
may be adjusted by using two (2) 17-mm wrenches.
