BROWN 484 - Replacement Parts: 4-Disc Slip Clutch; 4-Disc Slip Clutch Parts and Adjustment

Replacement Parts
38

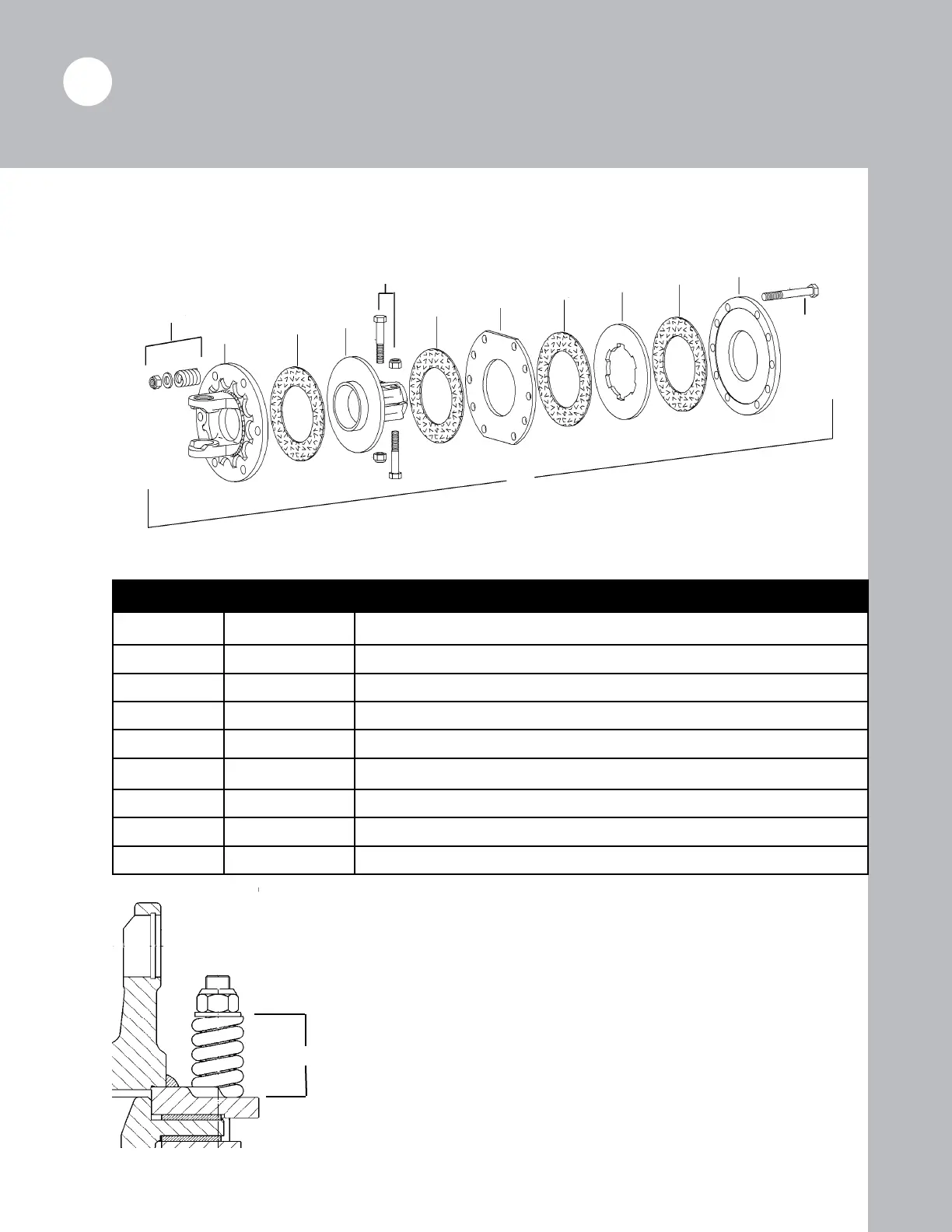

4-Disc Slip Clutch (484)
1
Ref. No. Part No. Description
1 236-1847 Bolt kit, nut, washer and spring
2 236-1802 Yoke, ange, 4 disc
3 236-1703 Lining, clutch (4 req.)
4 236-1804 Hub, 4 disc, 1-3/4” z 20
5 236-1845 Bolt, hub with nut (2 req.)
6 236-1805 Plate, drive anged, 4 disc
7 236-1806 Plate, drive, splined, 4 disc
8 236-1807 Plate, thrust, 4 disc
9 236-1801 Clutch assembly, slip, 4 disc
1
1
2
3
3
3
3
4
5
6
7
8
9
1-7/16”
PROPER TORQUE ADJUSTMENT
TO RESET SLIP CLUTCH TO PROPER TORQUE SETTING
TIGHTEN ALL SPRING BOLTS DOWN TO COMPRESS THE
SPRINGS TO A UNIFORM HEIGHT. THE TOTAL HEIGHT OF
THE SPRINGS MUST BE 1-7/16” FROM THE FLAT TOP OF
SPRING DOWN TO THE TOP OF THE FLANGE PLATE - SEE
DRAWING.
NOTE: THIS IS A MEASUREMENT OF THE SPRING ONLY -
NO WASHER OR NUT IN THIS MEASUREMENT.
